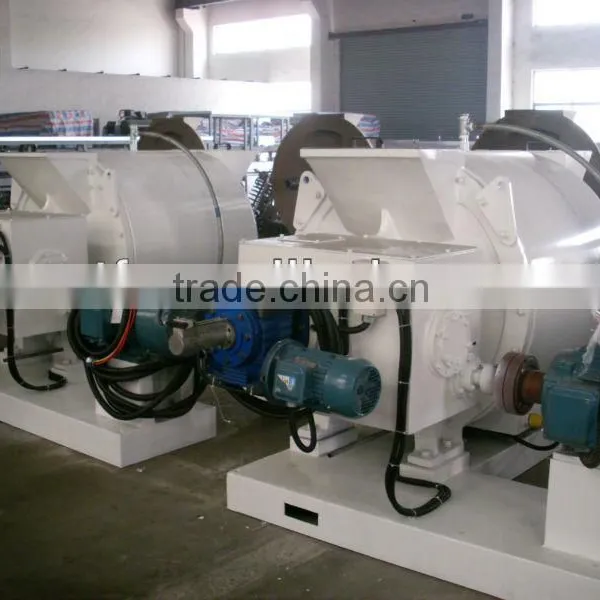

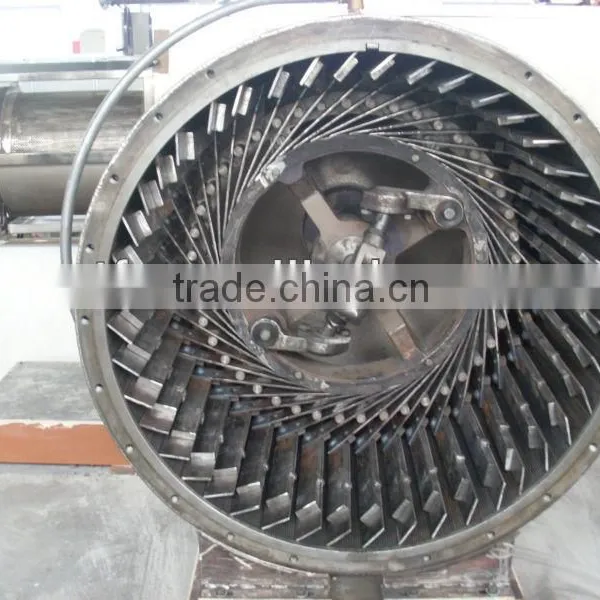

Help CenterTJMJ500 Chocolate Conching Machine
Related Products
USE:
1).chocolate conching machine is one of the major chocolate equipment which is used for the fine grinding of chocolate material.
2).The fine grinding time is 14~20 hours for 500 litre chocolate, the average granularity can achieve 20μm to 25μm .
3).This machine has many merits such as tight structure, easy operation, convenient maintenance, few one-off investment, and so on.
4).It is suitable especially for the technical request of medium chocolate and candy factory.
Main parameter:
Model: TJMJ500
Maximum capacity: 500 Litre
Fine grinding granularity: 20-25μm
Fine grinding time: 14-20 hour
Overall power: 11kw
Net weight: 3000kg
Gross weight: 3350kg
Outside dimension: 2000*1860*1250mm
Packing size: 2400*1950*1900mm
Option:1). Gear motor,hand tightening or electric tightening of adjustable grinding pressure.
2). Turbo motor,hand tightening or electric tightening of adjustable grinding pressure.
There are various models of chocolate conching machine as follows:
Model of machine |
Maximum capacity (L) |
Size of final chocolate (μm) |
Fine grinding time |
Overall power |
Net weight(kg) |
Outside dimension |
TJMJ3000 |
3000 |
20-25 |
18-24 |
55 |
7000 |
3700*1900*2150 |
TJMJ2000 |
2000 |
20-25 |
18-24 |
37 |
5300 |
3000*1900*1750 |
TJMJ1000 |
1000 |
20-25 |
14-20 |
22 |
4100 |
2970*1320*1790 |
TJMJ500 |
500 |
20-25 |
14-20 |
11 |
3000 |
2000*1860*1250 |
TJMJ40 |
40 |
20-25 |
7-9 |
2.2 |
360 |
1000*800*800 |
1. Strong seaworthy wooden package.
2. Protection against humidity.
3. Skilled capability of delivery to your country.
1. One-year guarantee period for complete machine.
2. Free charge of accessories within guarantee period excluding false operation.
3. Free charge of layout design, instruction with details, installation guide and local team training.
4. Experienced engineer is available to set up the machines upon request.
5. 24 hours technical support service by email and mobile.
