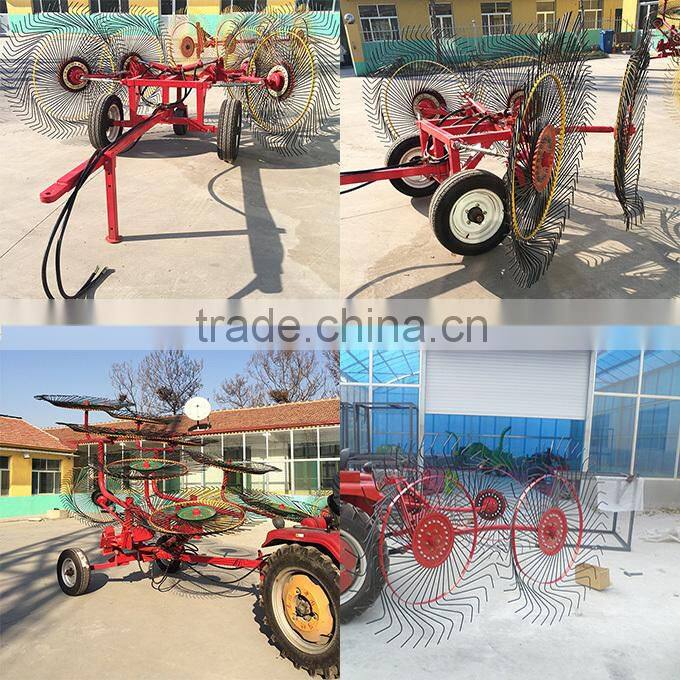

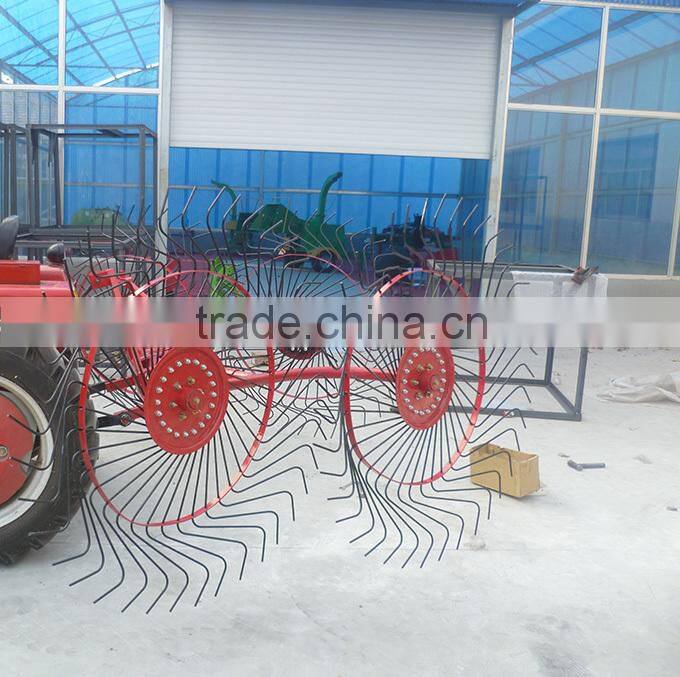

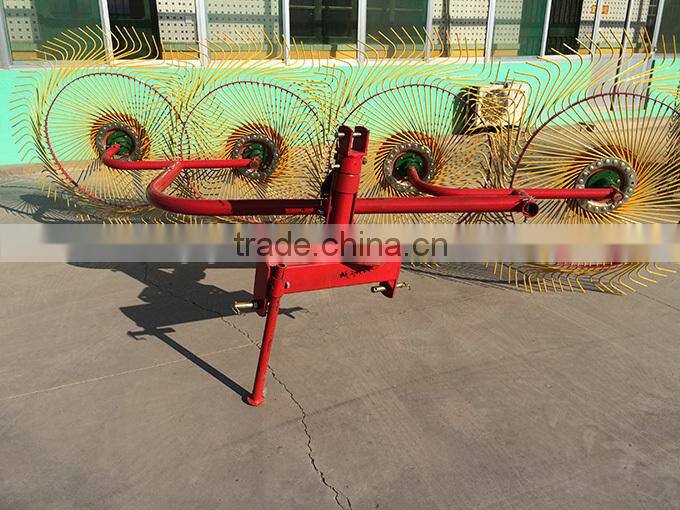

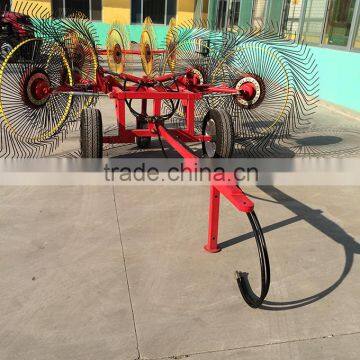

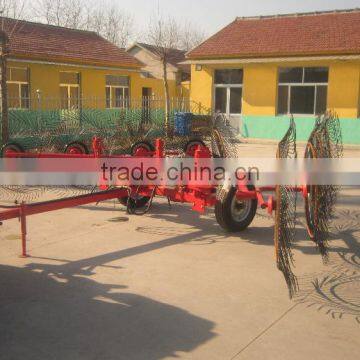

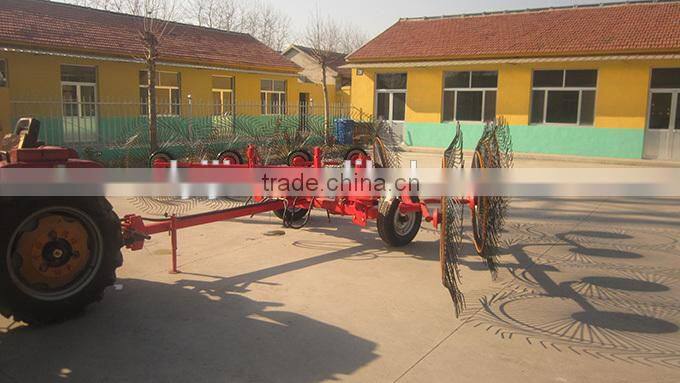

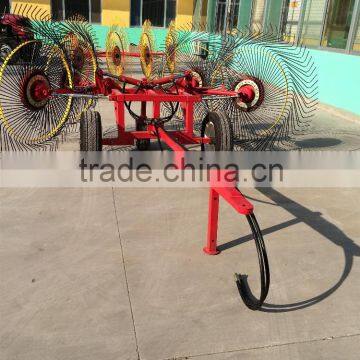

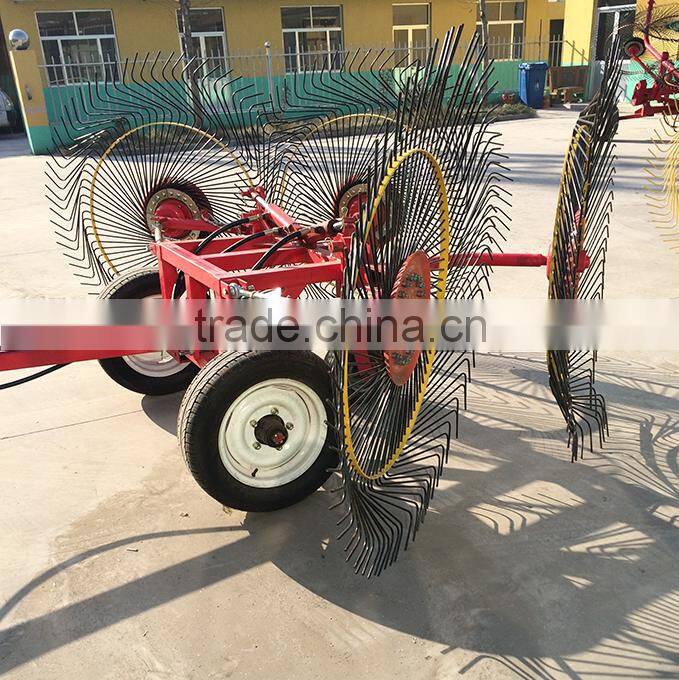

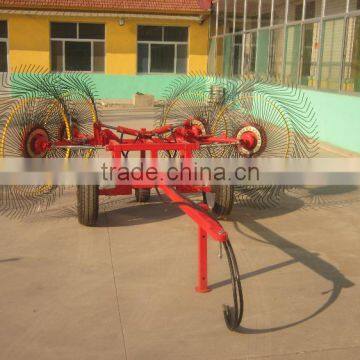

1. Product introduction of finger wheel hay rake
9LZ series of wheel hay rake is mounted on the 4 wheel tractor, the material of tine is 65Mn spring
steel to keep durable. this machine has simple structure, convenient operation and reliable use,
less failure and high efficiency. This rotary rake could be used together with our lawn mower.
2.Product application of finger wheel hay rake
9LZ series hay rake can rake pasture, straw and residual field film in high performance.
This machinery adopts double-sided structure design, the transportation and folding
is very convenient and simple in operation, so it’s very suitable for working in small
meadow.
3.Product after service of finger wheel hay rake
The solid suspension frame make the hay rake can matched with
many horse power of tractor. In production, the material and technology of all kinds
of sizes are completely the same, which can make easy for the hay rake’s further
upgrade and save your cost.
4.Product principle of finger wheel hay rake
9LZ series hay rake suitable for articulated on the linkage of wheel tractor, working parts to take tine
refers to the plate, the machine by referring to disc in order to the latter refers to the plate, until forming
loose ventilation article grass.Changing the width of the article refers to the angle of plate can adjustthe grass.
Long tine for spring steel teeth, comb grass effect is good, copying performance is strong, tine in radial
configuration is formed on the wheel hub, can eliminate wind effects, easy to dust by.With tension spring
to control the pressure refers to the plate on the ground, can according to crops and ground conditions,
through the tensile adjustment plate adjustment ground pressure.May transport when tries to offer to the
rear of the tractor.
5.Feature of finger wheel hay rake
1)9LZ series hay rake is mounted with 25-110HP tractors and the machine
2)The nos of tine plates 4-8 to meet different condition of farm field.

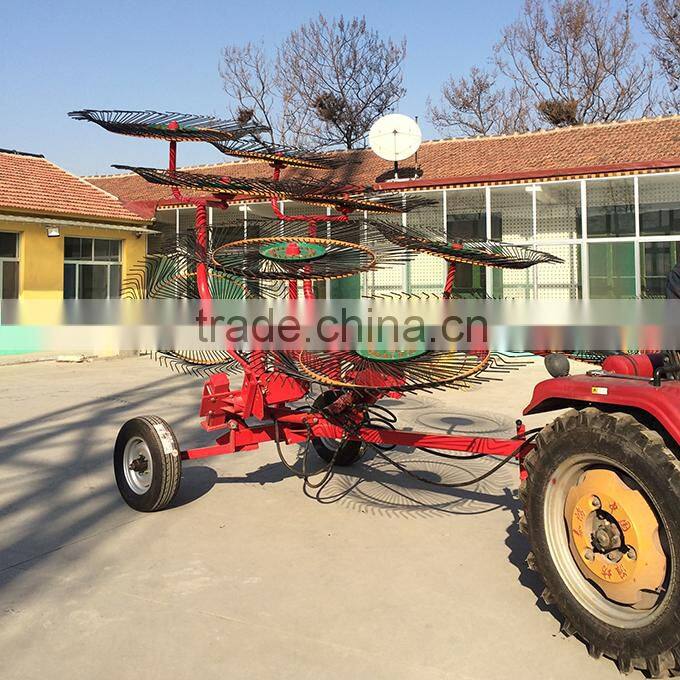

3)The finger disc type hay rake for tractor adopts hydraulic turning, the spring steel tine and
other components. During the time of work , the hydraulic turning mechanism can make the
tine turn wholly turning.
6.Specification of finger wheel hay rake
Model |
9LZ-3.0 |
9LZ-4.0 |
9LZ-4.8 |
Working width (mm) |
3.0 |
4.0 |
4.8 |
Matched tractor (hp) |
25-40 |
40-60 |
60-110 |
Capacity (hm/h ) |
1.0-1.5 |
1.5-3.5 |
3-5 |
Wheels No. |
4 |
6 |
8 |
Wheel diameter (mm) |
1460 |
1460 |
1460 |
Raking grass width (mm) |
900-1200 |
1000-1500 |
1000-1500 |
Weight (kg) |
150 |
295 |
350 |
Linkage |
3 point hitch linkage |
3 point hitch linkage |
3 point hitch linkage |
Package of finger wheel hay rake:Iron frame
Shipping by sea.
1.Top Quality Assurance:
Strict control and selection of materials;
2. Advanced Technology and Testing Measures
1.Q: Full price list for these products
A:If you need the price list for these products, please notify the product model so that i can quote you accordingly.
Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Business terms
A:
Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: qingdao port, China
Destination port: ...To be advised
Payment: By bank transfer
Warranty: 1 year
3. RE: CE
A: Most of our products are certified by CE.
4.Q:Sample test
A:Now our agri machines are exported in large quantity.
If you need one sample for test, we advise you to get this sample from the domestic dealers.
If you want to get from us directly, usually we advise to order at least one pallet per product.
5.Q:Why choose YJF for cooperation?
A: Comparing with our competitors, we have much more advantages as follows:
1.More Professional Sales staffs to guarantee the better service
2. More agri machines for your choice
3. More New products into your range to avoid price competion
4.Larger quantity production and shipment
6.Better quality to guarantee better Credit.
7.Faster delivery time:only45days
8.More stick quality checking before shipment.
9.More reasonable after-sales service terms.
10.More famous brand: YJF;
Welcome to contact us for more details!!!
