Home > Products > VRLA Batteries-UPS application > 12V 100W Gel battery
12V 100W Gel battery
- 100000 Piece / Pieces per Month
- XIAMEN CHINA
- T/T L/C D/P D/A Credit Card PayPal
- Passenger 3 wheels motorcycle batteries ,12V18Ah three wheel bike battery
- motorcycle batteries battery 12v 18ah
- best price lead acid motorcycle rechargeable battery 12v 18ah
- 12v 18ah motorcycle battery 12v lead acid motorcycle battery motorcycle battery parts
- 12v 18ah high performance dry charged motorcycle battery
- 12N18-3A 12V 18Ah motorcycle battery
Product Details
Place of Origin: | Hubei, China | Brand Name: | VCELL | Model Number: | 12VHR100W |
Usage: | UPS | Voltage: | Other, 12v | Sealed Type: | Sealed |
Maintenance Type: | Free | Size: | 166x125x175x175(mm) | Weight: | 9.75kg |
Nominal Capacity: | 100W |
Product Description
Specifications
12V 100W Gel battery1. Gel battery;
2. UL, CE, ISO 9001:2000, ISO 14001:2004, SA8000
12V 100W Gel battery
1. Gel battery
2. 10 years design life;
3. 400 cycles at 50% DOD in cycle service;
4. 2 year warranty.
Specification:
12V 100W Gel battery
NOMINAL VOLTAGE | : 12V |
NOMINAL CPACITY | : 100W/cell@15 Minutes rate to 1.67V@25°C(77°F) |
DIMENSIONS | |
TOTAL HEIGHT(RT Terminal) | : 175mm ( 6.89 inches ) |
TOTAL HEIGHT(FP Terminal) | : 175mm ( 6.89 inches ) |
CONTAINER HEIGHT | : 175mm ( 6.89 inches ) |
LENGTH | : 125mm ( 4.92 inches) |
WIDTH | : 172mm ( 6.77 inches) |
WEIGHT | : APPROX 9.75 Kg ( 21.49 lbs) |
CONTAINER MATERIAL | : UL94HB ABS |
INTERNAL RESISTANCE ( 25°C,77°F) | : ~10mΩ |
DISCHARGE CAPACITY UNDER DIFFERENT TEMPERATURES | |
40°C | : ~102% |
25°C | : ~100% |
0°C | : ~85% |
"VHR" series is custom designed specifically for the UPS applications. It offers much improved power density of Up to 30% more watts per kilogram than our conventional VC series.
Features:
* Gel battery .
* 10 Year Design Life
* Flame Retardant Poly Propylene Case and Cover
> Impact resistant, self-extinguishing material with standard Underwriters Laboratories(UL) 94V rating
* Tank Formed Plate Construction
>100% capacity on shipment
>Plate consistency and matching dependable performance
* Copper Threaded Insert Post
> High conductivity
> Retains required torque values and allows for easy installation
* Epoxy Post Seal
>Elimination of acid egress for trouble-free service life
* Ceramic Disc Flame Arrestor
>Prevent any errant spark or flames from entering the battery
* Transportation
>Non-hazardous for air / sea / rail / road transportation
Applicable Standards
>UL Recognized
>UL 1778 4th edition - UPS equipment certification
>IEC 60896 Part 21 - VRLA methods of testing
>IEC 60896 Part 22 - VRLA requirements
>BS 6290 Part 4 - Specifications for VRLA classification
>ISO 9001 Quality Management System
>ISO 14001 Environmental Management System
>OHSAS 18001 Workplace Safety & Health
Applications:
* Uninterruptable Power Supply (UPS)
* Telecommunication
* Emergency lighting
* Fire alarm and security systems
* Medical appliance
* Solar applications
* Electronic test equipment
* Electronic measuring devices
* Geophysical devices
* Marine equipment
Appearance:

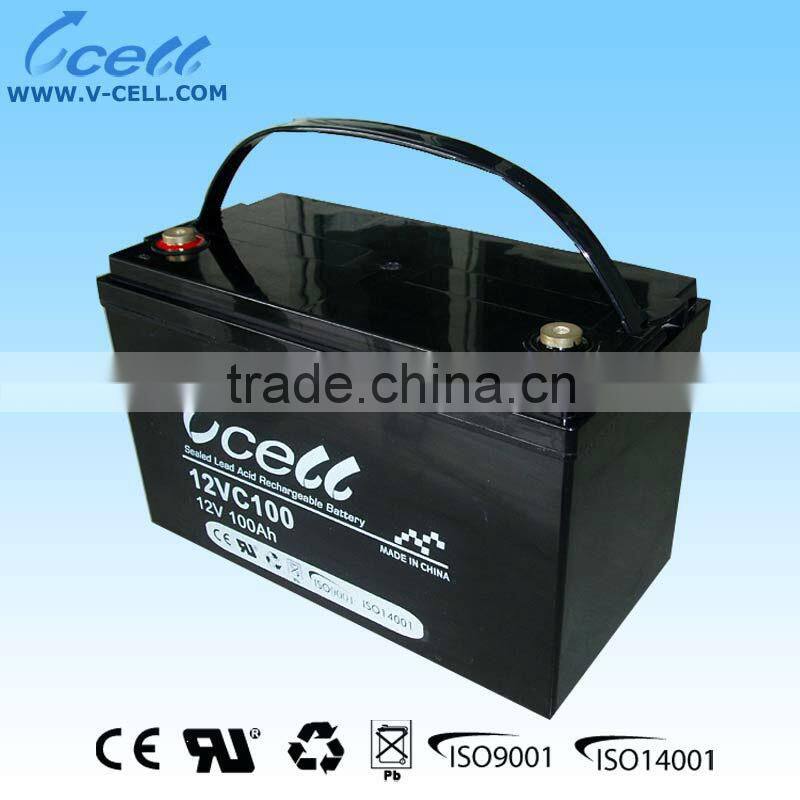

Battery:
12V 100W Gel battery
Our factory:
