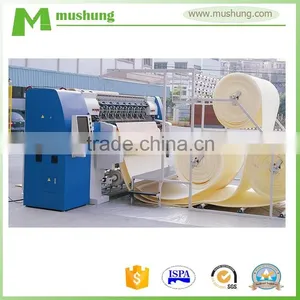

Chain stitch mattress quilting machine
1. New fabric loading design. Easy loading material.
2. Tilted body design. Easy to operate and maintain.
3. Thread brake detector.
4. Using air cylinder for thread cutting tail length.
5. Operated using high quality sealed bearings that do not need lubrication.
6. Adjustable presser foot lifting mechanism enables you to quilt a broad range of material thickness.
7. Emergency safety devices.
8. Improved quilting software control system allows more precise and stable quilting operations.
9. CAD drawing pattern system allows you to create your own designs.
1. Machine comes with 100-300 design patterns.
11. Error problem detection system.
12. Pattern compensation.
Item |
Chain stitch mattress quilting machine |
|
Model |
MS-2500 |
|
Max Sewing Speed |
80 ~ 230m/h |
|
Max Sewing Thickness |
≤ 80mm |
|
Power (W) |
7KW |
|
Dimension (L * W * H) |
5100 * 1500 * 2000mm | |
Weight |
4500KG | |
Quilt Width |
2450mm | |
Rotation Speed |
600 ~ 1200RPM |
|
Needle Size |
130/21, 140/22, 160/23, 180/24 |
|
Needle Arrangement |
50.8, 76.2, 127; 76.2, 76.2, 152.4 |
|
| Max.Horizontal Movement | 450mm | |
| Needle Space | 25.4mm | |
| Voltage | 380V/50HZ, 220V/60HZ | |
| Stitch | 2 ~ 7 mm | |
