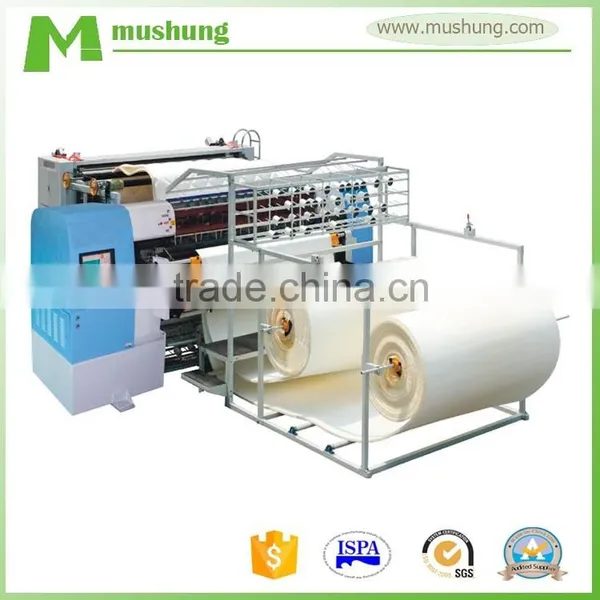

Computerized Non-shuttle(chain stitch) Multi-needle Quilting Machine
Function:
1.Adopt the advanced process design.
2.Needle bar and pressing block take the double rocker, avoid the materials be soiled by lube.
3.High rigidity machine body,perfect protecting equipment and steady-going control system.
4.X,Y motors and main motor are driven by servo system.
5.Test the working state of all sensors and computer in real time.
6.Auto-stop system when the upper or bottom thread broke by infrared.Auto-lift needle and adjust the speed by computer.
7.Automatic faults tips for servo motor system and transducer,which is convenient to eliminate problems.
8.360°quilting ,and limitless multi-span and independent quilting.
9.Steady running,high speed,low noise,very thick material with precise quilting .
10.Ringing notice when start machine.
Parameter:(Unit:mm)
Model |
MS-94-3D |
Size: L*W*H |
5000*1600*2000 |
Weight |
6000kg |
Quilting width |
2485 |
Needle bar space |
50.8+76.2,(2’’+3’’),76.2+76.2, (3’’+3’’) |
Needle space |
25.4 |
X-axis movement |
410 |
Quilting thickness |
≤80 |
Stitch |
2-8 |
Output |
10-300m/h |
Needle type |
#21-#24 |
Rolling speed |
600-1200r/min |
Rated Voltage(AC) |
380V/50HZ, 220V/60HZ |
Power |
7.5KW |
Use:be used for quilting advanced mattress, bedding product,carpet,cushion etc with various kinds of designs.
