12V 12Ah battery energy storage system
1 battery energy storage system
2. Low rate self-discharge;
3. Deep cycle battery;
4. Sealed maintenance free battery;
5. OEM Service.
Specification:
12V 12Ah battery energy storage system
| NOMINAL VOLTAGE | : 12V |
| NOMINAL CPACITY(20 hr) | : 12.0Ah |
| DIMENSIONS | |
| TOTAL HEIGHT | : 100mm ( 3.94 inches ) |
| CONTAINER HEIGHT | : 94.5mm ( 3.72 inches ) |
| LENGTH | : 151mm ( 5.95 inches) |
| WIDTH | : 98mm ( 3.86 inches) |
| WEIGHT | : APPROX 3.85 Kg ( 8.49 lbs) |
| CONTAINER MATERIAL | : UL94HB ABS |
| : UL94V-0 ABS | |
| INTERNAL RESISTANCE ( 25°C,77°F) | : ~14mΩ |
| DISCHARGE CAPACITY UNDER DIFFERENT TEMPERATURES | |
| 40°C | : ~102% |
| 25°C | : ~100% |
| 0°C | : ~85% |
GEL-VHC series(deep cycle battery), using the nano materials, has 5 years(20 degrees Celsius) designed life.
GEL-VHC series is applicable for high precision and high efficiency solar systems, electrical bike, wind energy systems, scooters, wheelchair, etc.
Discharge:
In order to improve the cycle life, on the basis of AGM technology, adding the silica to the electrolyte.
a.At 25°C standard discharge conditions, the cycle life is more than 1800 cycles at 30% depth discharge;
b.At 25°C standard discharge conditions, the cycle life is more than 800 cycles at 50% depth discharge;
c.At 25°C standard discharge conditions, the cycle life is more than 400 cycles at 100% depth discharge.
Features:
- battery energy storage system
- 5 years design life @20°C
- Wide operating temperature range of 15~50°C
- GEL series-Using the nano materials
- Low self discharge and perfect deep discharge character
Application:

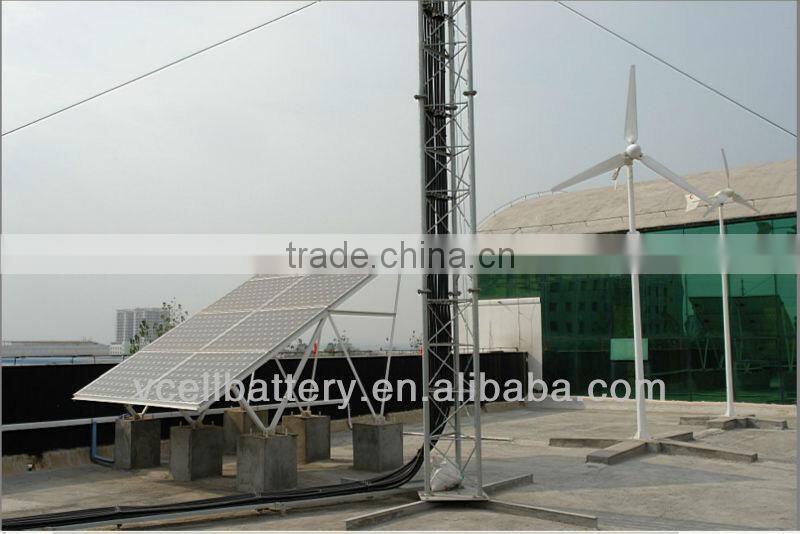

- Solar systems
- UPS
- EPS
- Electric power
- Electrical bike
- Wind energy systems
- Scooters
- Wheelchair, etc.
Appearance:

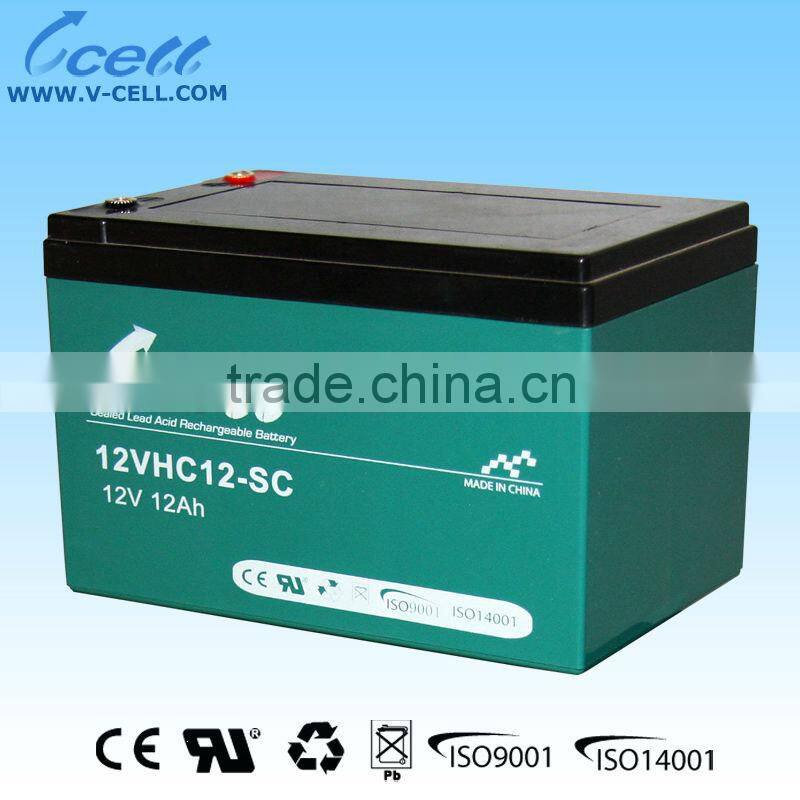

Battery: 12V 12Ah battery energy storage system

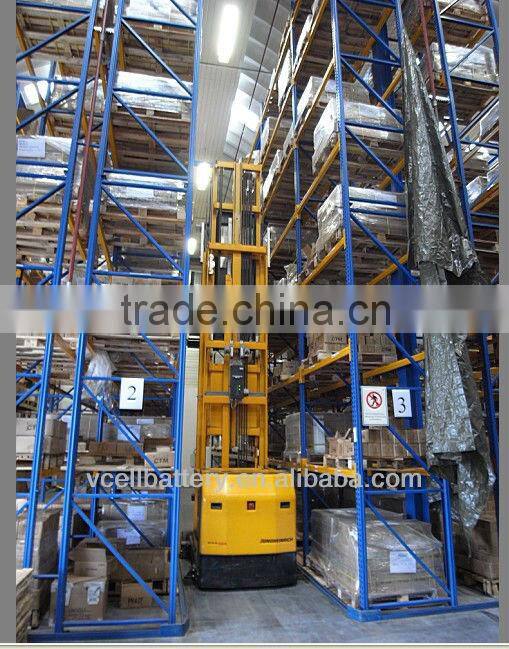

Our factory:
