Nice Price 12V150Ah Battery For Telecom/ups System
US$ 0.1 - 200
MOQ: 25 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
VCELL
Model Number:
12FT150/12FT150-FR
Payment & Shipping
Payment Methods:
Port of Shipment:
wuhan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12FT55 SLA VRLA 55Ah Front Terminal BatteryUS$ 0.1 - 90MOQ: 90 Pieces -
12V100Ah Front Terminal Agm Lead Acid Battery(FT)US$ 0.1 - 160MOQ: 30 Pieces
-
VCELL Maintenance Free Front Terminal Battery12FT100US$ 0.1 - 160MOQ: 30 Pieces
-
12V165Ah Deep Cycle Power Storage BatteryUS$ 0.1 - 226MOQ: 20 Pieces
-
12V150Ah UPS Battery Seald Lead Acid BatteryUS$ 0.1 - 200MOQ: 25 Pieces
Place of Origin
Hubei, China
Brand Name
VCELL
Model Number
12FT150/12FT150-FR
Usage
UPS
Voltage
Other, 12v
Sealed Type
Sealed
Maintenance Type
Free
Size
551*110*288mm
Weight
48kg
Nominal Capacity
150Ah
Specifications
12V150Ah Battery For Telecom/ups System1.Low self-discharge
nnection easily,less space occupied
3.Near to 0 loss rate
Nice Price 12V150Ah Battery For Telecom/ups System
Product Description
Specification
| NORMINAL VOLTAGE :12V |
| NORMINAL CAPACITY :150Ah at 8hr.rate to 1.75 v/cell |
| DIMENSIONS TOTAL HEIGHT :288mm(11.34inches) CONTAINER HEIGHT :288mm(11.34inches) LENGTH :551mm(21.69inches) WIDTH :110mm(4.33inches) |
| WEIGHT :APPRO×48.0Kg(105.82bs) |
| CONTAINER MATERIAL :UL94HB ABS :UL94V-0ABS |
| INTERNAL RESISTANCE(25°C, 77°F):-4.0m |
| DISCHARGE CAPACITY UNDER DIFFERENT TEMPERATURES 40°C :-102% 25°C :-100% 0°C :-85% |
Characteristics
| CAPACITY 25°C/77°F 20hr at 7.8A :160Ah 10hr at 15.00A :150Ah 3hr at 38.7A :116Ah 1hr at 93.00A :93Ah |
| CHARGING VOLTAGE(25°C, 77°F) STANDBY USE :13.65V±0.15V CYCLE USE :14.7V±0.3V |
| MAX DISCHARGE CURRENT :500A(5 sec) |
| MAX CHARGING CURRENT :37.5A SELF-DISCHARGE RESIDUAL CAPACITY(25°C, 77°F) AFTER 3 MONTHS :-90% AFTER 6 MONTHS :-82% AFTER 12MONTHS :-70% |
| Cycle Life (25°C, 77°F) 30%DOD :>1800TIMES 50%DOD :>800TIMES 100%DOD :>350TIMES |
Ordering Guide
| Series | Capacity | Opinions | Terminal Type |
| 12FT | 150AH | FR(Flame Retardant) | RT-02 |
| ~(Non Flame Retardant) |
| Constant Power Discharge Rating - Watts per Cell @ 77°F(25°C) Operating Time to End Point Voltage(in minutes) | |||||||||||
| End Point Volts/Cell |
1.0 | 3.0 | 5.0 | 10.0 | 15.0 | 30.0 | 60.0 | 180.0 | 300.0 | 600.0 | 1200.0 |
| 1.60 | 1290.0 | 955.0 | 780.0 | 630.0 | 547.0 | 302.0 | 201.0 | 84.7 | 55.3 | 29.9 | 16.5 |
| 1.65 | 1210.0 | 900.0 | 735.0 | 600.0 | 527.0 | 300.0 | 198.0 | 84.2 | 54.9 | 29.9 | 16.5 |
| 1.70 | 1155.0 | 860.0 | 704.0 | 565.0 | 508.0 | 299.0 | 195.0 | 83.6 | 54.5 | 29.9 | 16.5 |
| 1.75 | 1095.0 | 820.0 | 675.0 | 540.0 | 489.0 | 298.0 | 193.0 | 83.1 | 54.2 | 29.8 | 16.5 |
| 1.80 | 1060.0 | 795.0 | 655.0 | 525.0 | 469.0 | 297.0 | 191.0 | 82.5 | 54.0 | 29.8 | 16.5 |
| Constant Current Discharge Rating - Amperes @ 77°F(25°C) Operating Time to End Point Voltage(in minutes) | |||||||||||
| End Point Volts/Cell |
1 | 3 | 5 | 10 | 15 | 30 | 60 | 180 | 300 | 600 | 1200 |
| 1.60 | 760 | 545 | 438 | 346 | 289 | 172 | 108 | 45 | 28.7 | 15.6 | 8.6 |
| 1.65 | 690 | 505 | 408 | 325 | 276 | 169 | 106 | 44 | 28.5 | 15.6 | 8.6 |
| 1.70 | 645 | 475 | 385 | 306 | 263 | 166 | 104 | 43 | 28.3 | 15.5 | 8.5 |
| 1.75 | 605 | 448 | 365 | 290 | 252 | 162 | 102 | 42 | 28.2 | 15.5 | 8.5 |
| 1.80 | 456 | 428 | 350 | 280 | 238 | 159 | 100 | 42 | 28.1 | 15.4 | 8.5 |

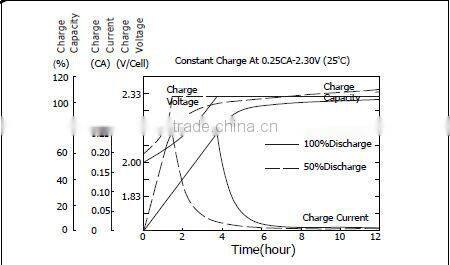

Charge Characteristics

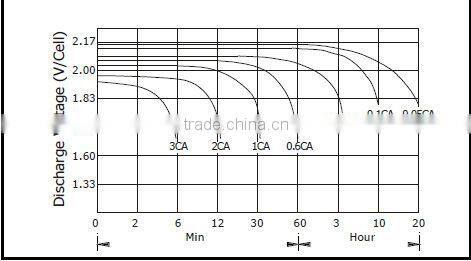

Discharge Characteristics
Packaging & Shipping
Packing Details:1pc/ carton box packing, can pack on client's demand
Delivert Details: 30~45days upon receipt of the offical order.
Our Services
Minimum Order Quantity : 25 Piece/Pieces
FOB Price: USD 0.1~200/ Piece
Port :Wuhan,China
Supply Ability: 100000 Piece/Pieces per month
Payment terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Packaging Details: cartons
Delivery detail: 30~45 days upon receipt of official order
