Operation in Jordan Amman Used Oil Refinery Equipment

Welcome to Huayin,

 the Best Manufacturer ofused oil refinery equipment !

1. 3D Flow Chart of used oil refinery equipment

2. The used oil refinery equipment working process

feed crude oil -- heat(reactor)-- cooled down(condenser)-- get oil(oil tank)--waste flammable gas to reheat reactor pump oil-- oil refining system--separate oil and catalyst( vibration filter)—storage tank--oil decloring tank-- get oil like diesel(oil tank)

3. Safety

1) Auto submerged arc welding,X-ray detection room is special for welding seam test

2) 1 set of safety valves+ 4 temperature gauges+ 3 pressure gauges= security system

3) Water seal shall prevent backfire and special design can reduce corrosion to reactor

4) Waste flammable gas reheat the reactor, guarantee safety

4. Energy Saving

1) The whole reactor can be heated, so the raw material can be fully pyrolysis

2) Fire road is designed as spiral, fuel shall be fully burned

3) Both condenser and cooling pool are ok

4) Special design for gas separate to seep up pyrolysis process

5. High profit

6. Brief Introduction of used oil refinery equipment

6.1 Model and Specification

6.2 High Configuration

@ The material of the reactor is Q345R boiler steel with 16 mm thickness

@ Stainless steel material for the tube of the gas burner

@ Stainless steel material for draft fan

6.3 Delivery Time

10 days after deposit receiving

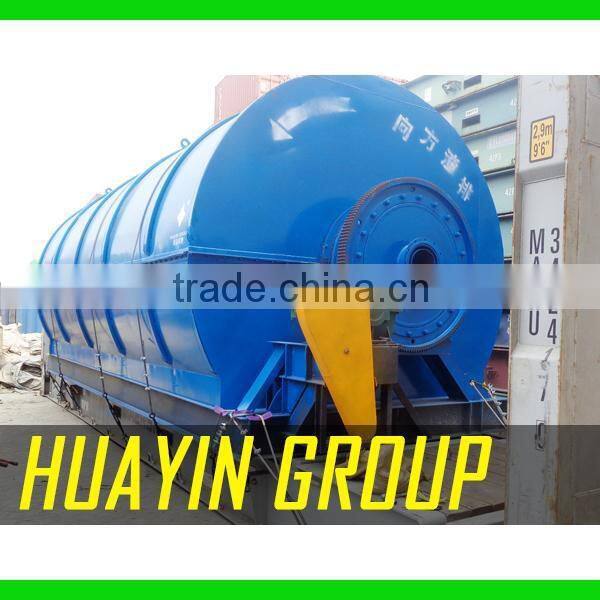

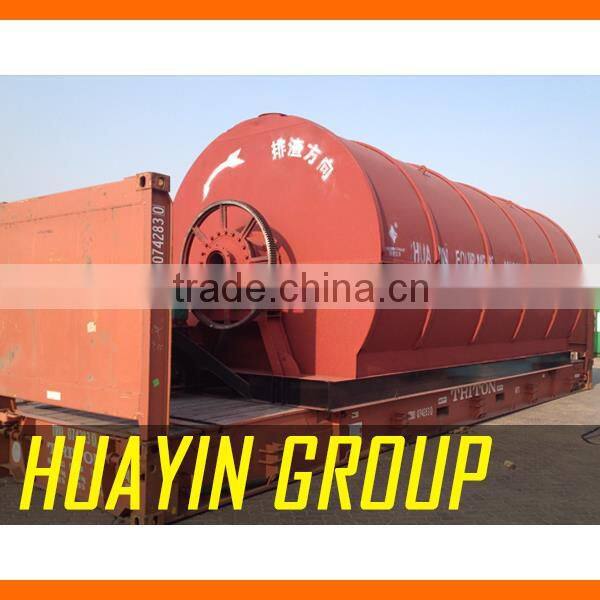

6.4 Shipment container

6.5 FOB Port(China)

Qingdao, Tianjin...or according to your requirement

6.6 After Service

1) Foundation drawing shall be sent to you after contract signing

2) Send engineer to install and give you instruction

3) CE, ISO, TUV,BV, SGS and patent certification

4) 1 year warranty

5) we will inform you our new technology

7. Picture Show

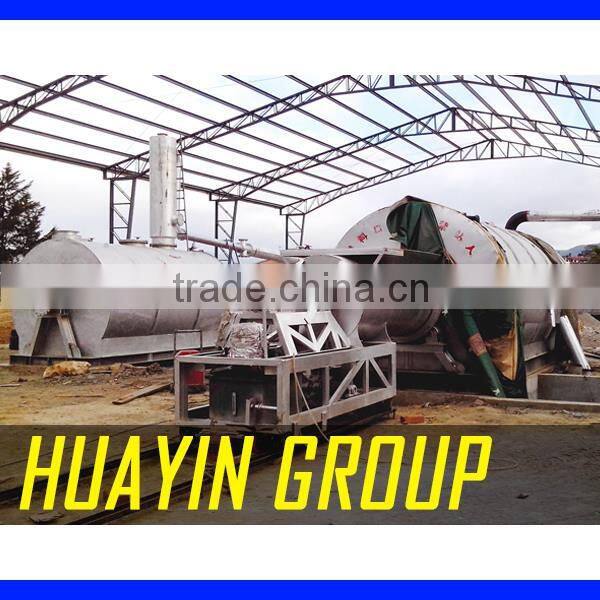

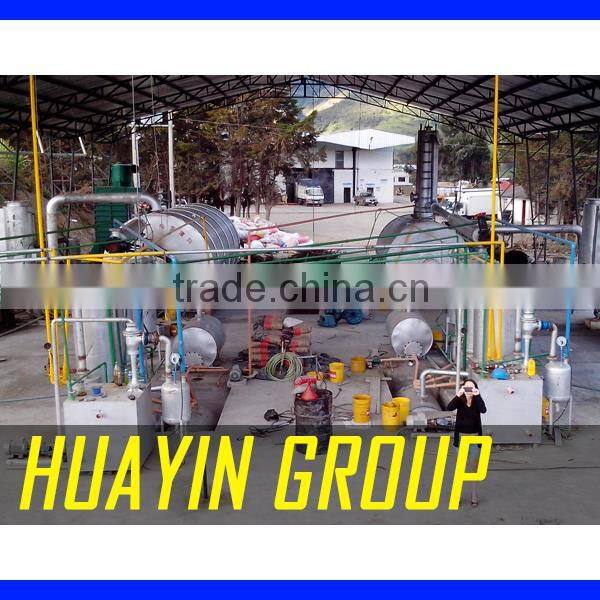

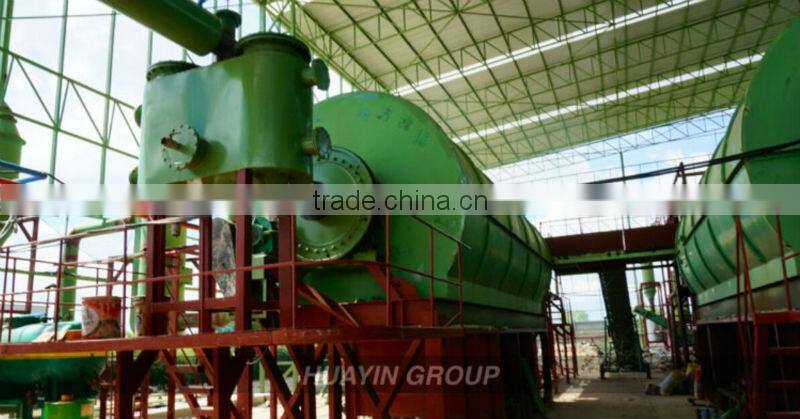

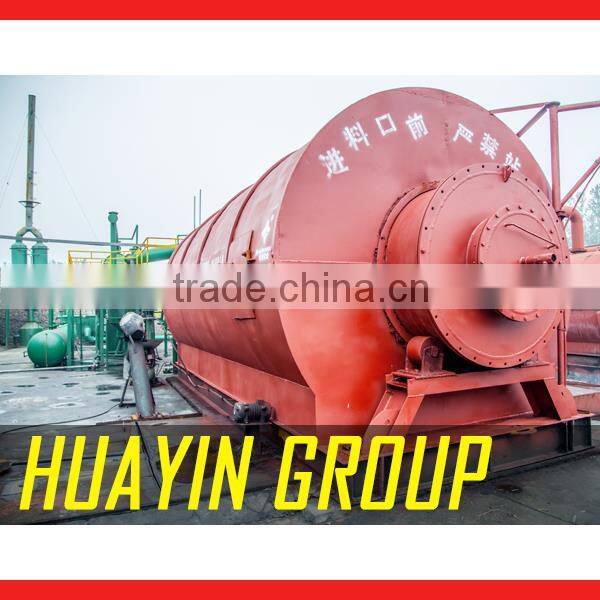

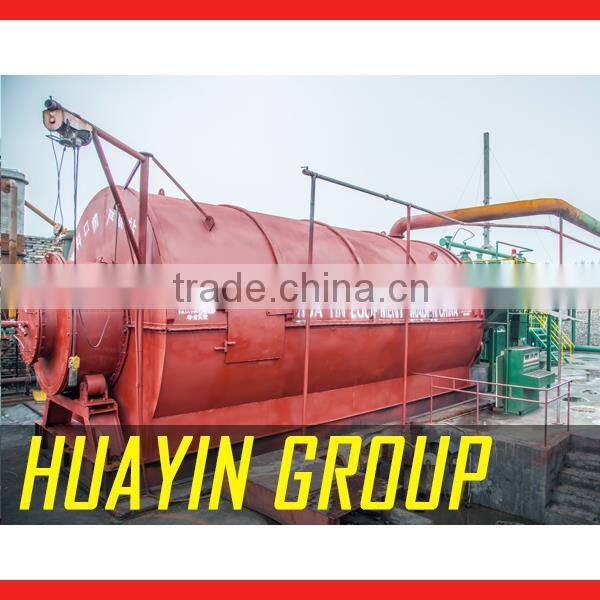

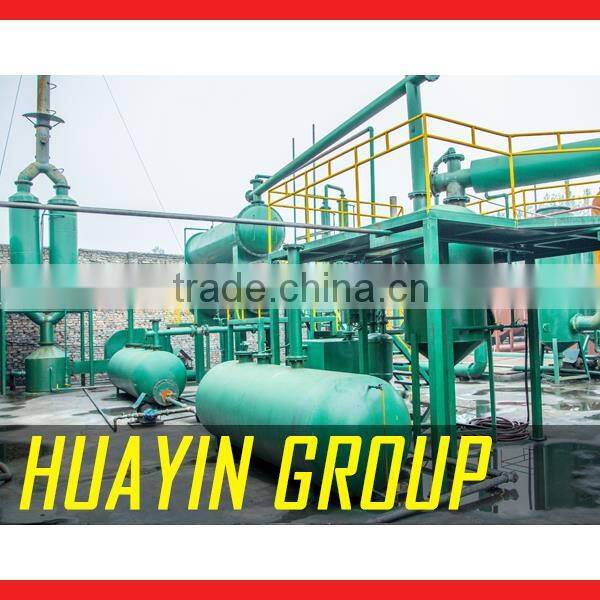

Demo plants in factory

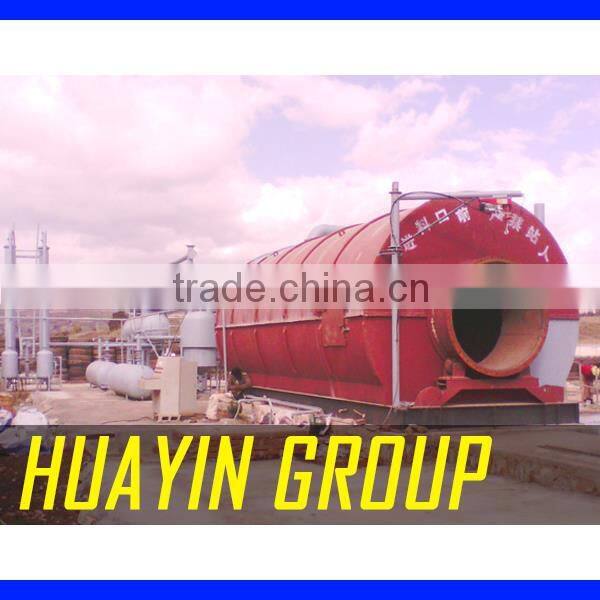

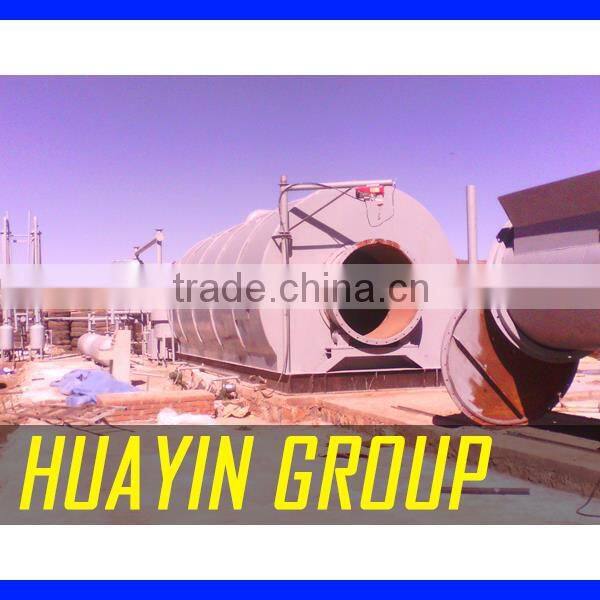

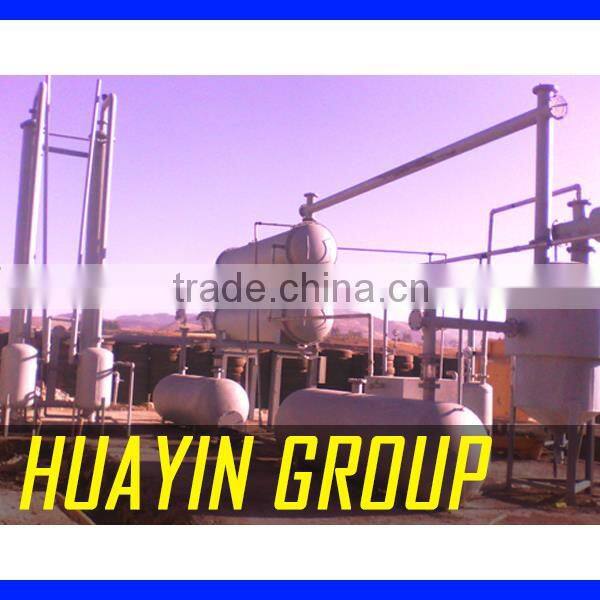

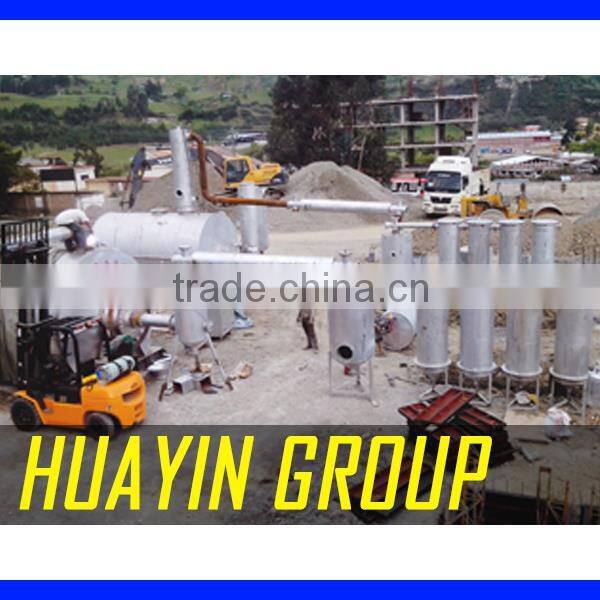

Installation all over the world
