Specifications
A 3.6V 3000mAh ER17505M Cylindrical battery1.Cylindrical battery;
2. High power type;
A 3.6V 3000mAh ER17505M Cylindrical battery
1. UL,CE certified.
2. Low Self-discharge rate
3. Wide operating temperature range: -60°C to +85°C
4. High and stable discharge voltage
5. Cylindrical battery
Specification:
A 3.6V 3000mAh ER17505M Cylindrical battery
| Model | Size | Nominal Voltage (V) | Max.Dimensions | Weight (g) | Standard CapacityCurrent | Max Continuous Discharge Current (mA) | Operating Temperature(°C) | Terminate Voltage (V) |
| (φmm×mm) | (mAhmA) | |||||||
| ER17505M | A | 3.6 | 17.0×50.5 | 26 | 30005.0 | 1000 | -55~+80 | 2 |
lithium ion battery
Features:
- Cylindrical battery
- High and stable operating voltage.
- Low self-discharge rate. Anual self discharge rate lower than 1% at +25 °C
- Long operating life
- High energy density (700wh/kg)
- Wide operating temerature range
- Stainless steel can and cover
- Hermetic glass-to-metal sealing
- Non-flammable electrolyte
- Compliant with IEC86-4 safety standard.
- Non-restricted for transport
1. High and stable voltage: 3.6V rated voltage; operating voltage is 3.3V~3.4V in normal temperature, and 3.5V~3.6V In high temperature. Because the electrochemical reaction of positive pole is heterogeneous reaction, the dischargeing curve is very stable until the capacity is almost exhausted when the curve changes a lot;
2. Long shelf life: Due to its full-sealing structure, it can be stored for more than 10 years.
Applications:
- Water meter
- Ammeter, Heat
- Gas Meter
- Automatic Meter Reading
- Real time clock
- Wireless Sensors
- Security and alarm systems
- Monitoring systems
- Smoke Detector
- Pulse/event-counters
- Automatic meter reading system
- Toll station power
- Memory back-up power
- Remote data systems
- Deep Drilling, Automotive Electronics
- Military Radar and Medical Instrument etc.
Appearance:

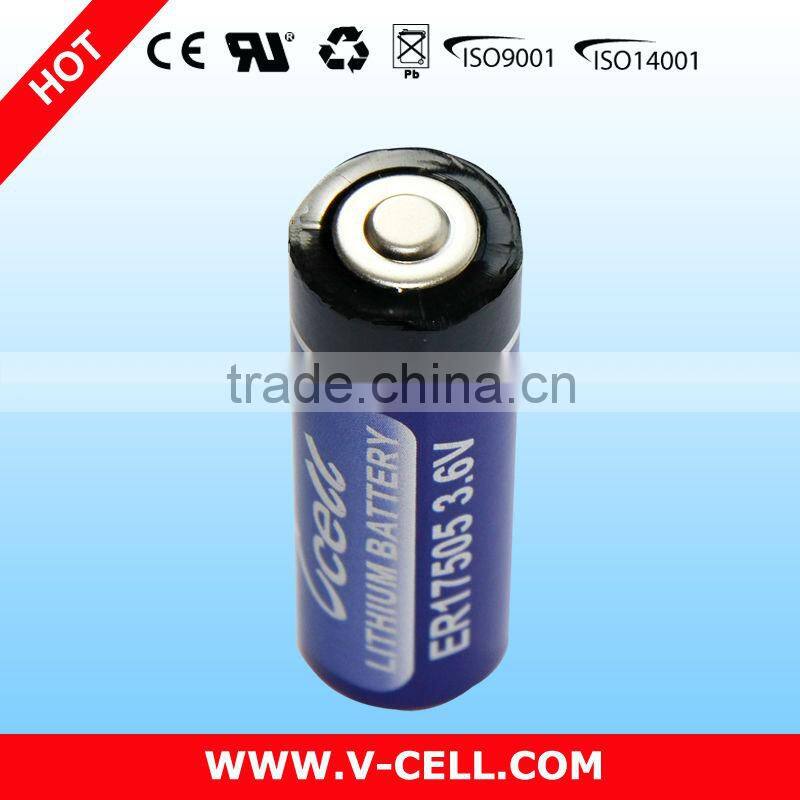

A 3.6V 3000mAh ER17505M Cylindrical battery
Primary Lithium Batteries:
