Specifications
1/2AA 3.6V 800mAh ER14250M Lithium thionyl chloride battery1.Lithium thionyl chloride battery;
2.High energy type;
1/2AA 3.6V 800mAh ER14250M Lithium thionyl chloride battery
1. UL,CE certified.
2. Low Self-discharge rate
3. Wide operating temperature range: -60°C to +85°C
4. High and stable discharge voltage
5. Lithium thionyl chloride battery
Specification:
1/2AA 3.6V 800mAh ER14250M Lithium thionyl chloride battery
| Model | Size(mm) Max.mm |
Weight (g) |
||
| National Standard | International Standard | |||
| ER14250M | 1/2AA | Φ14.5x25.0 | 10 | |
| Rated Voltage(v) | Rated Capacity(mAh) | Standard Discharge current(mA) | Max.Current(mA) | |
| Continuous | Pulse | |||
| 3.6 | 800 | 2 | 100 | 200 |
Features:
- Lithium thionyl chloride battery
- High and stable operating voltage.
- Low self-discharge rate. Anual self discharge rate lower than 1% at +25 °C
- Long operating life
- High energy density (700wh/kg)
- Wide operating temerature range
- Stainless steel can and cover
- Hermetic glass-to-metal sealing
- Non-flammable electrolyte
- Compliant with IEC86-4 safety standard.
- Non-restricted for transport
1. High and stable voltage: 3.6V rated voltage; operating voltage is 3.3V~3.4V in normal temperature, and 3.5V~3.6V In high temperature. Because the electrochemical reaction of positive pole is heterogeneous reaction, the dischargeing curve is very stable until the capacity is almost exhausted when the curve changes a lot;
2. Long shelf life: Due to its full-sealing structure, it can be stored for more than 10 years.
Applications:
- Water meter
- Ammeter, Heat
- Gas Meter
- Automatic Meter Reading
- Real time clock
- Wireless Sensors
- Security and alarm systems
- Monitoring systems
- Smoke Detector
- Pulse/event-counters
- Automatic meter reading system
- Toll station power
- Memory back-up power
- Remote data systems
- Deep Drilling, Automotive Electronics
- Military Radar and Medical Instrument etc.

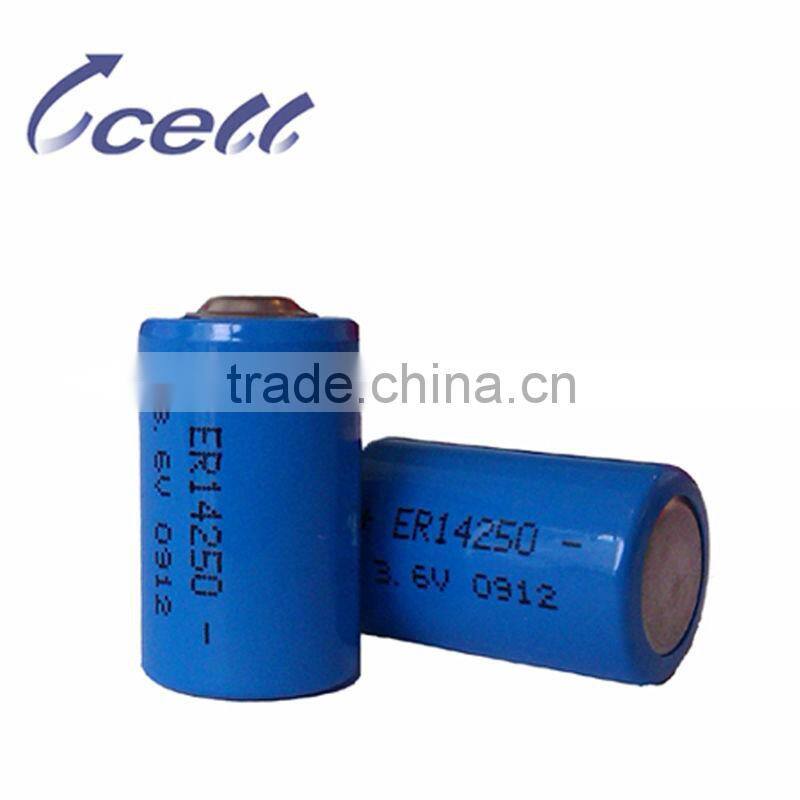

Appearance:
1/2AA 3.6V 800mAh ER14250M Lithium thionyl chloride battery

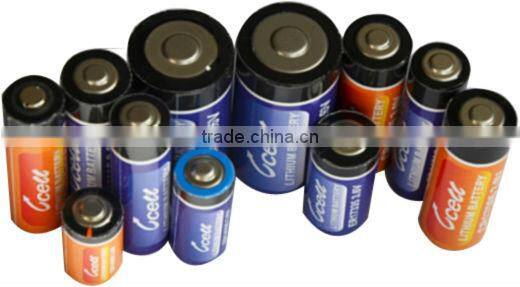

Primary Lithium Batteries:

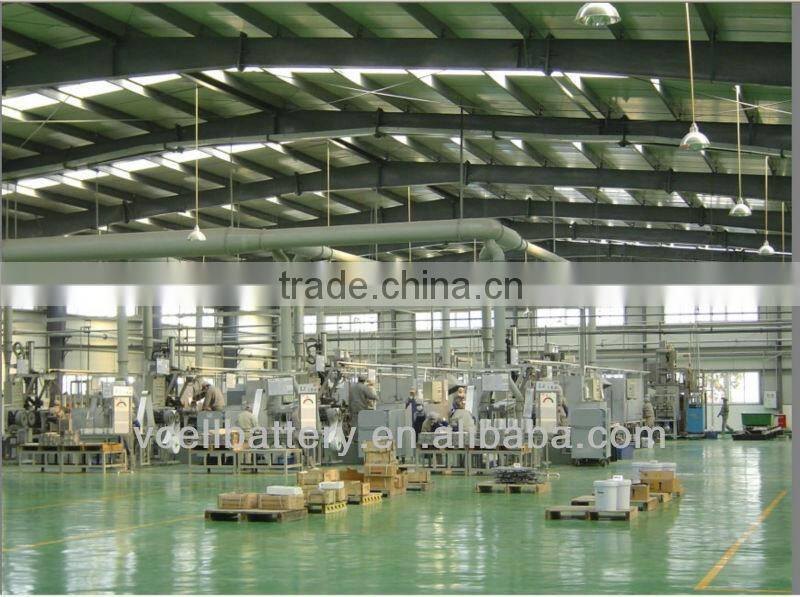

Our factory:
