Hot Efficiency Garden Tractor Backhoe
- Qingdao
- T/T
You May Like
Product Details
Condition | New | Brand Name | YJF | |
Model Number | LW-6 LW-7 LW-8 | Place of Origin | Shandong, China | |
Type | Backhoe Loader | Moving Type | Wheel Loader | |
Dimension(Long * Breadth * High) | 2300*1860*890mm | Rated Load | 1000kgs | |
Certification | CE certificate | Warranty | 1 year | |
After-sales Service Provided | Overseas service center available |
Product Description

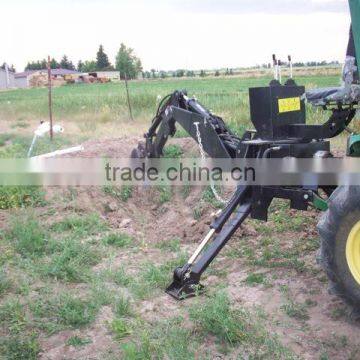

Detaild garden tractor backhoe
1) garden tractor backhoe
2) matched any tractor .
3)The backhoe can be powered by your tractor's hydraulic system or by a PTO drive with gear pump.
4)All are with self hydraulic pump, oil tank, increasing speed gear box, handed control valve, and luxury spring seat andsafety belt.
The specification of garden tractor backhoe
Model | LW-6 | LW-7 | LW-8 | |||||||
Max. digging depth (mm) | 1850 | 2150 | 2640 | |||||||
Max. digging radius (mm) | 2800 | 3360 | 3930 | |||||||
Max. digging height (mm) | 2500 | 3400 | 3510 | |||||||
Loading height (mm) | 1400 | 1760 | 2000 | |||||||
Max. digging depth (2ft) Flat bottom (mm) | 1600 | 2000 | 2500 | |||||||
Digging Length(mm) | 1610 | 1410 | 1450 | |||||||
Knighthead expanding width | 1800 | 1830 | 1820 | |||||||
Swing Arc (°) | 140 | 160 | 140 | |||||||
Bucket rofation (°) | 160 | 160 | 160 | |||||||
Size (m3)Standard attached | 0.036 | 0.045 | 0.054 | |||||||
Cap. (mm)Standard attached | 300 | 400 | 450 | |||||||
Overall dimension | 2300×1860×890 | 2360×1960×1270 | 2500×1960×1400 | |||||||
Weight(kg) | 470 | 540 | 600 | |||||||
Valve standard press | 16Mpa | 16Mpa | 16Mpa | |||||||
Valve over loading protect press | 7±1MPa | 7±1MPa | 7±1MPa | |||||||
Valve input flux area | 12~28L/mm | 12~28L/mm | 12~28L/mm | |||||||
Connect height (mm) | 410 | 460 | 460 | |||||||
Connect width (mm) | 399 | H′=530 | H′=530 | |||||||
Up connect pinhole Dia. | φ22 | φ22 | φ22 | |||||||
Down Connect pinhole Dia. | φ19 | φ19 | φ19 | |||||||
Bucket standard | Cap. (mm) | 250 | 300 | 400 | 450 | 500 | 550 | |||
Size (m3) | 0.030 | 0.036 | 0.045 | 0.054 | 0.060 | 0.066 |
