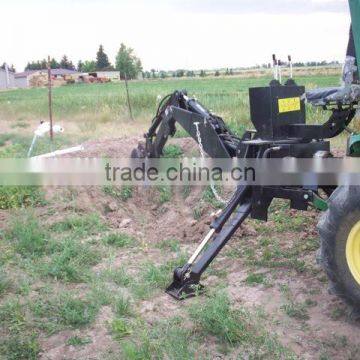

2015 Superior Product Backhoe Used in United States

2015 Superior Product Backhoe Used in United States thumbnail-1
2015 Superior Product Backhoe Used in United States thumbnail-2
2015 Superior Product Backhoe Used in United States photo-1
2015 Superior Product Backhoe Used in United States photo-2
US$ 1,100 - 2,066 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
YJF
Model Number:
LW-6 LW-7 LW-8
Contact Supplier Request Quote Chat Now
Weifang Yijia Imp. & Exp. Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name YJF
Model Number LW-6 LW-7 LW-8
Place of Origin Shandong, China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 2300*1860*890mm
Rated Load 1000kg
Certification CE
Warranty one year
After-sales Service Provided Overseas service center available

The specification of  superior product backhoe used in united states

Model

LW-6

LW-7

LW-8

Max. digging depth (mm)

1850

2150

2640

Max. digging radius (mm)

2800

3360

3930

Max. digging height (mm)

2500

3400

3510

Loading height (mm)

1400

1760

2000

Max. digging depth (2ft) Flat bottom (mm)

1600

2000

2500

Digging Length(mm)

1610

1410

1450

Knighthead expanding width

1800

1830

1820

Swing Arc (°)

140

160

140

Bucket rofation (°)

160

160

160

Size (m3)Standard attached

0.036

0.045

0.054

Cap. (mm)Standard attached

300

400

450

Overall dimension

2300×1860×890

2360×1960×1270

2500×1960×1400

Weight(kg)

470

540

600

Valve standard press

16Mpa

16Mpa

16Mpa

Valve over loading protect press

7±1MPa

7±1MPa

7±1MPa

Valve input flux area

12~28L/mm

12~28L/mm

12~28L/mm

Connect height (mm)

410

460

460

Connect width (mm)

399

H′=530

H′=530

Up connect pinhole Dia.

φ22

φ22

φ22

Down Connect pinhole Dia.

φ19

φ19

φ19

Bucket standard

Cap. (mm)

250

300

400

450

500

550

Size (m3)

0.030

0.036

0.045

0.054

0.060

0.066

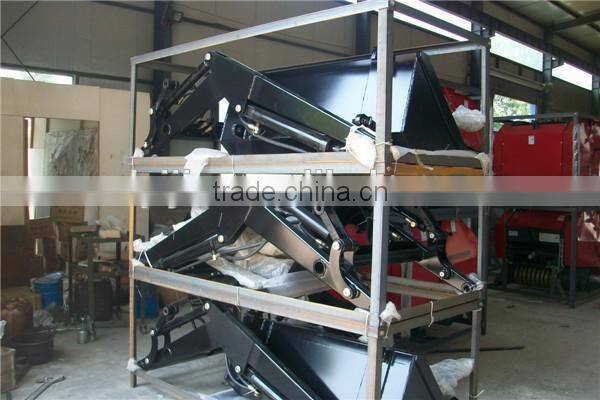

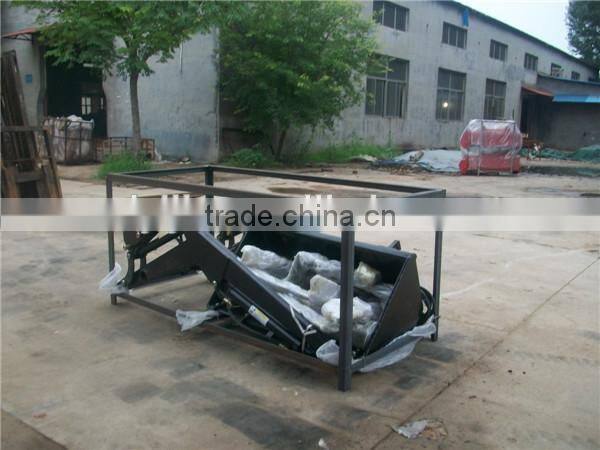

Packaging & Shipping

 2015 superior product backhoe used in united states2015 superior product backhoe used in united states



Superior product backhoe used in united states                                               2015 superior product backhoe used in united states



FAQ



1.Q: Full price list for these products

 A:If you need the price list for these products, please notify the product model so that i can quote you accordingly.

Please understand we have a very wide product range, we don't usually offer full products price list.



 2. Q: Export quantity

A:20-30 units of 40ft container per month.



 3. Q: Business terms

A:

Shipment time: 25-40days after your payment

Shipment: By sea

Loading port: qingdao port, China

Destination port: ...To be advised

Payment: By bank transfer

Warranty: 1 year



 4. RE: CE

A: Most of our products are certified by CE.



 5.Q:Sample test

A:Now our agri machines are exported in large quantity.

If you need one sample for test, we advise you to get this sample as test .



 6.Q:Why choose YJF for cooperation?

A: Comparing with our competitors, we have much more advantages as follows:

1.More Professional Sales staffs to guarantee the better service

2. More agri and farming  machines for your choice

3. More New products into your range to avoid price competion

4.Larger quantity production and shipment

6.Better quality to guarantee better Credit.

7.Faster delivery time:only45days

8.More stick quality checking before shipment.

9.More reasonable after-sales service terms.

10.Largest manufacturer of tractor mower;

11.Largest manufacturer of wood chipper;



7.Q:- How can I become a dealer in my area?

A:- If you are qualified, you may apply for a dealership. We choose reliable partners for a long term business cooperation.



Welcome to contact us for more details!!!
