Specifications
1, Up to 1440dpi2, For indoor and outdoor
3. Epson DX5 printhead
4, Strong performance

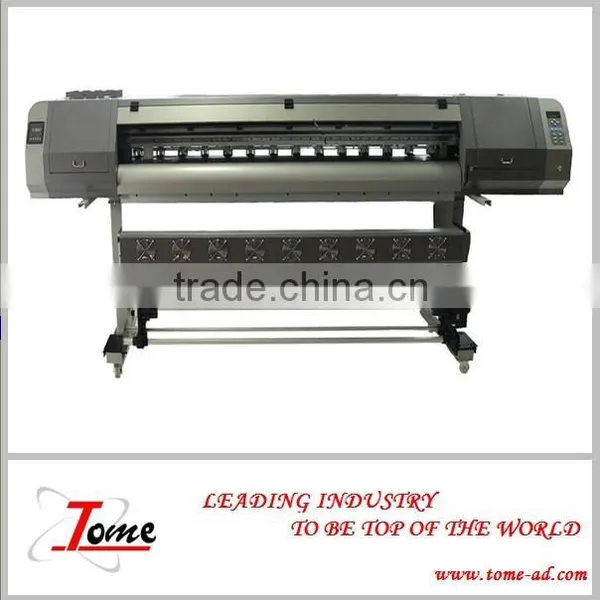

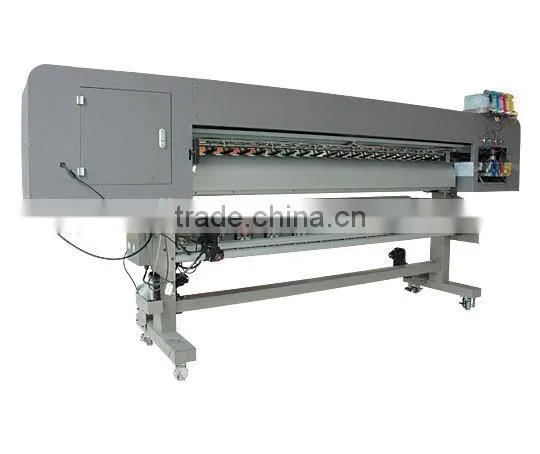

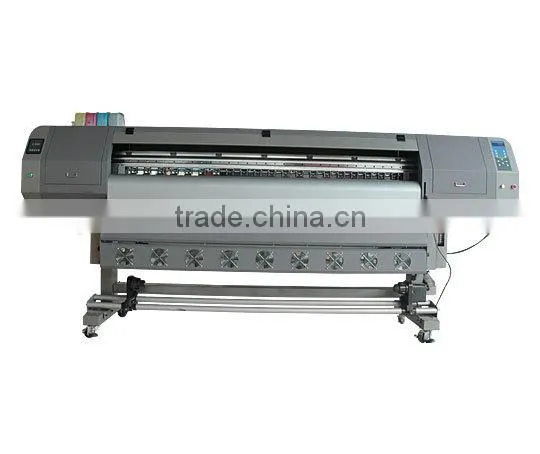

eco solvent printer for car vinyl
ALLWIN eco solvent printer takes Japanese products quality of the same kind as standard in production
SPECIFICATION |
||||||
Machine Type |
E180 |
E320 |
||||
Print Head |
1 or 2 Epson DX5 print head/180nozeel 8 lines per head |
|||||
Ink Type |
Water Base ink/ECO solvent ink/sublimation ink |
|||||
Resolution |
360*1080(6pass) |
720*360(4pass) |
360*1440(8pass) |
360*2160(12pass) |
||
Speed |
24sqm/h |
35sqm/h |
18sqm/h |
12sqm/h |
||
Print width |
180cm |
320cm |
||||
Color Mode |
Duel CMYK |
|||||
Material Thickness |
1.5mm-2.5mm |
|||||
Media |
Vinyl,flex banner,canvas,Photo paper,pp paper,light film,etc |
|||||
Roll media weight |
20kg MAX |
48kg MAX |
||||
Head Cleaning |
Automatic purging, sucking, wiping |
|||||
Ink supply |
Refillable cartridge |
|||||
Heating system |
Intelligent Pre-heater,Platen-heater,Dry-heater |
|||||
Inter face |
USB2.0/USBHI |
|||||
Power |
AC110-120V, AC220-240V, 50/60HZ±1HZ/40~100W |
|||||
Environment |
Temperature:20-32°C,Humidty:40%-60% |
|||||
Dimension |
3360×750×930mm |
4420x820x1450mm |
||||
Weight |
300/400KG |
500/600KG |
||||
Product feature:
- The printing quality is competitive to the Japanese eco solvent printers;

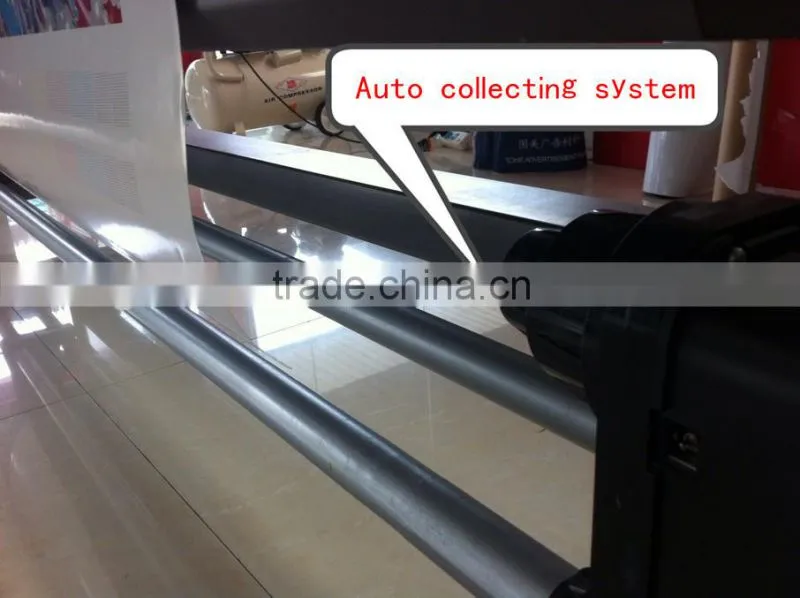

- Automatic feeding and collecting structure;
- Two printheads design with intelligent infrared heater and fan drying system;
- The machine through different quality tests is stable and competent enough for mass production requirement .

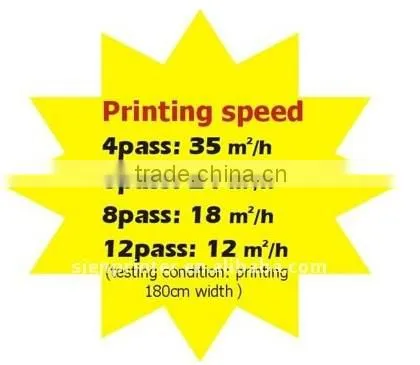

Double heads speed:
2pass: 64 m2/h
3pass: 44 m2/h
4pass: 32 m2/h
6pass: 22 m2/h
8pass: 16 m2/h
12pass: 11 m2/h
Advanced software functions :
Ⅰ. high-efficient printing
1.rip while printing;
2.print selected area;
3.skip white in X and Y printing directions;
4.auto media sensor for setting print origin automatically(3 picture positions: left, middle and right);
Ⅱ.printing quality enhanced
1.two feather printing modes :moist, gradient;
2.simple printhead calibration mode can be easily mastered by operators;

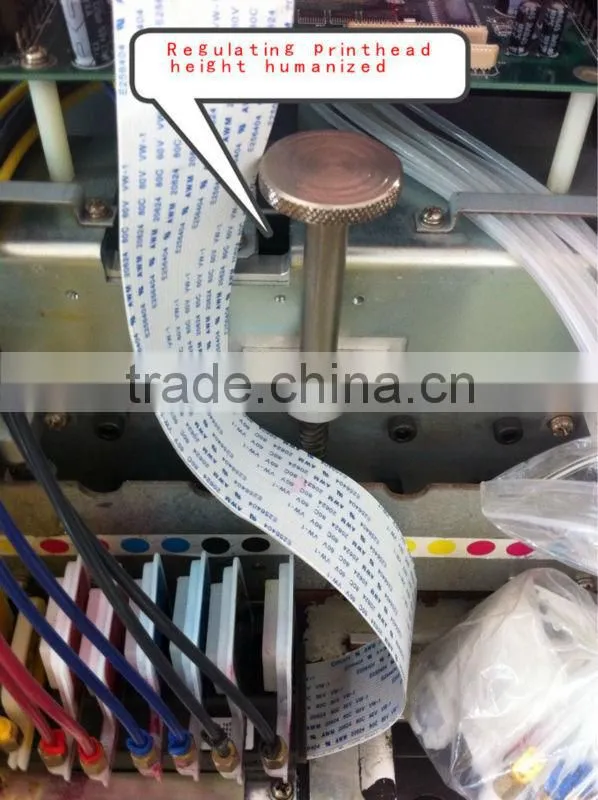

3.micro adjustment of printhead voltage;
Ⅲ.human-based functions
1.options of automatically sensing or manually setting media origin;
2.adjustable step value during printing;
3.operations both in computer interface and machine control panel;
4.automatic and constant ink system cleaning function;
V. ink saving function
1.options for single head cleansing or double heads cleansing;
2.options for light, medium and heavy printhead sucking;
VI. printhead lifespan prolonged
1.All color channels can be exchanged freely so as to prolong the printhead lifespan.
uman-based and energy saving functions to enhance work efficiency
Wooden package :
