Printer Eco Solvent,eco Solvent Inkjet Printer,solvent Inkjet Printer

US$ 6,000 - 11,500 MOQ: 1 Set

Key Specifications

Condition:

New

Plate Type:

Other, Digital Printer

Place of Origin:

Guangdong, China

Guangzhou Tome Advertisement Material Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Plate Type Other, Digital Printer

Place of Origin Guangdong, China

Brand Name CAE

Usage Other, Digital Printer

Automatic Grade Automatic

Voltage 220V

Gross Power 200W

Dimensions(L*W*H) 4700*1030*1570mm

Weight 800KG

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. Heavy body machine very stable
2. High resolution

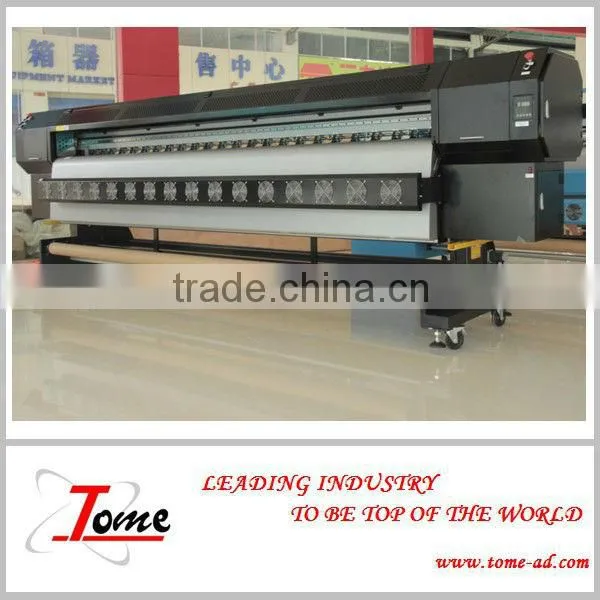

Printer eco solvent,eco solvent inkjet printer,solvent inkjet printer

Specification:

Machine Type	H8 Digital Inkjet Printer
Print Head	8*KONICA512MN/14PL		8*KONICA512LN/42PL
Print Mode	360×1080dpi/3P	360×1440dpi/4P	180×720dpi/2P	180×1080dpi/3P
Print Speed	48sqm/h	35sqm/h	80sqm/h	55sqm/h
Print Width	3300MM
Printer Interface	USB
Media Transmission	Roll to Roll
Data Transfer	Edge RIP while print/RIP post-print
RIP Software	ULTRAPRINT,PHOTOPRINT, MAINTOP
Heating System	Two-heating: Before printing, print post.
Cleaning System	Separation dual function of pressure and suction cleaning
Material Systems	Automatic feeding system
Ink Types	C,M,Y,K four-color or C,M,Y,K,LC,LM 6-color solvent-based ink
Power Requirements	220VAC±10%,<4A,50/60HZ/220VAC±10%,<16A,50/60HZ
Working Environment	Temperature:20°C~30°C,Humidity:40%~70% RH
Media Type	Normal light box cloth, body perspective software, photo paper, etc.
Dimensions	(L×W×H)4620×1030×1570MM
NW/GW	800KG/900KG

H8 high advanced function deploywnt

4 Heads staggered technology;
2pcs D80 thick rubber tollers feed+balance bar;
Secondary ink tank, ink circuit heating system;
Unique ink stack printhead protection device;
Reserved suction outlet connecting to the vacuum cleaner,high suction pressure to suck the remaining ink in the printhead surface
Stepless height adjustable of printhead;
Subsection printing plaform suction, streng wind to ensures smooth;
Advanced motion system, ink-supply system, Machinery Manufacturing system;
Three stage adjustable temperature heating for the materials;
Taiwan HIWIN linear lead trail;
Professional media feeding system (optimal);
Model can choose 512/256, 4/8 head configuration;
High-performance control system.
