Product Details
| Place of Origin | Zhejiang, China | Brand Name | FRANKEVER CATV Signal Amplifier | |
| Model Number | FK-7530MK1 |
Product Description
Specifications

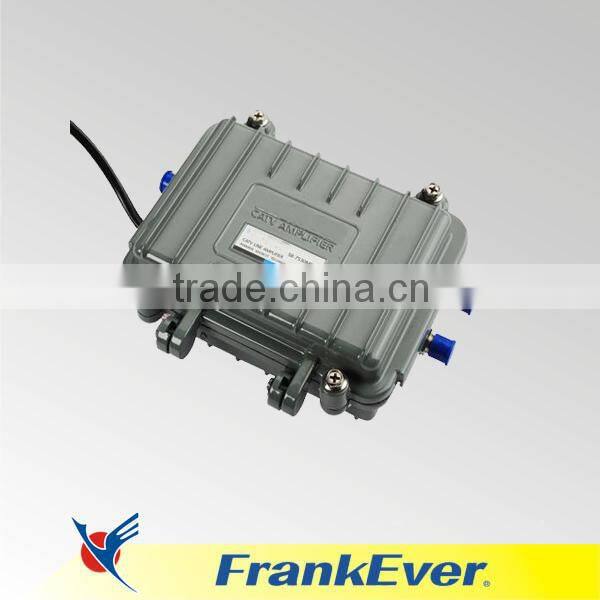

Ouside Use CATV Amplifier Signal Splitter 2 WayoutCATV Signal Amplifier
All ports set in the same side,easy to instal
Product Description
FRANKEVER Ouside Use CATV Amplifier Signal Splitter 2 Wayout
Designed with imported high frequency components to provide high performance.
Aluminum shell provides fine shielding properties and strong capacity of resisting disturbance.
Multiple outputs, the same side of the interface
Providing manual gain control to adjust suitable signal.
Key Parameters
ITEM | PARAMETER |
Frequency range(MHz) | 45~750 |
Nominal gain(dB) | 30 |
Flatness in band(dB) | ±0.75 |
Max output level(dBμV) | 118 |
Nominal input level (dBμV) | 72 |
Gain adjustment range(dB) | 0~20 |
Slop preset(dB) | 0~18 |
Noise factor(dB) | ≤7 |
Return loss(dB) | ≥12 |
Testing port(dB) | -10 |
Thunderstroke immunity(KV) | 5(10/700μS) |
power supply | AC40V~60 V or AC220V±10%50Hz |
power consumption(W) | 10 |
Number of outputs | 2 |
Measurements: | 223*180*85mm |
