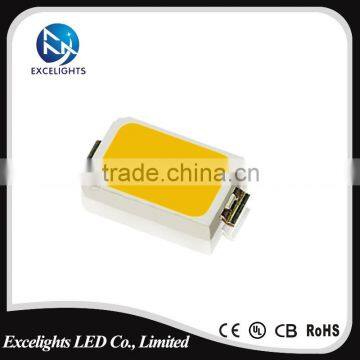

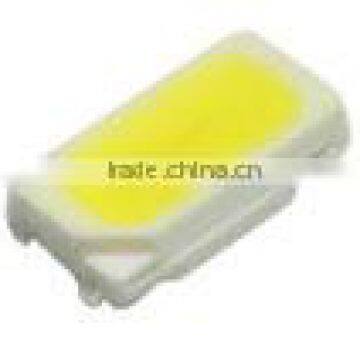

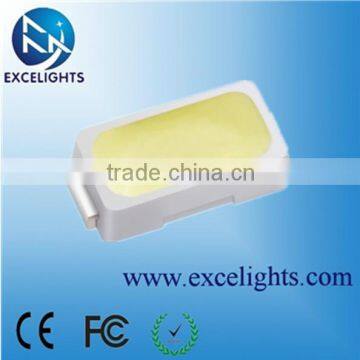

High Brightness 0.5W 5730 Smd Led Specifications
US$ 0.01 - 0.15
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Model Number:
EL-5050WW
Chip Material:
Other, Gold wire
Emitting Color:
Warm White
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LED Diode Light Source LED SMD 3528 Smd LedUS$ 0.01 - 0.02MOQ: 1000 Pieces -
3528/3014/5630/3014/2838 5050 SMD LEDUS$ 0.01 - 0.015MOQ: 1000 Pieces
-
Light Source Ultra Brightness 3014 SMD LEDUS$ 0.005 - 0.01MOQ: 2000 Pieces
-
SMD LED 335 Light for Led Module,stripUS$ 0.008 - 0.03MOQ: 1 Piece
-
SMD 335 LED Light Side ViewUS$ 0.008 - 0.03MOQ: 1 Piece
Model Number
EL-5050WW
Chip Material
Other, Gold wire
Emitting Color
Warm White
Luminous Intensity
22000~25000mcd
Luminous Flux(lm)
50~55lm
Optical Attenuation(%)
0.3
Power
Other, 0.5
Power Dissipation
0.5
Color Rendering Index(Ra)
85
Color Temperature
2700~3200k
Operating Temperature(℃)
-40, 85
Storage Temperature(℃)
-40, 85
Place of Origin
Guangdong, China
Brand Name
EXCELIGHTS
Certification
CE
5730 smd led specifications
Product Description

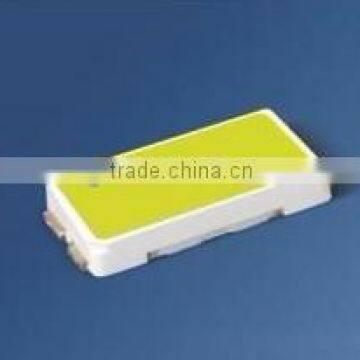

1.Specifications for 5730 smd led specifications
1. Light color: White
2. Intensity: 50-55LM
3. Dimmensions: 5.7*3.0mm
4. Beam Angle: 120 degree
5. Forward current: 150mA
6. Forward voltage: 3.0-3.2V
7. Operating temperature: -40 to +85°C
8. Storage temperature: -40 to +100°C
9. Package: 3000pieces/reel
2.Features for 5730 smd led specifications

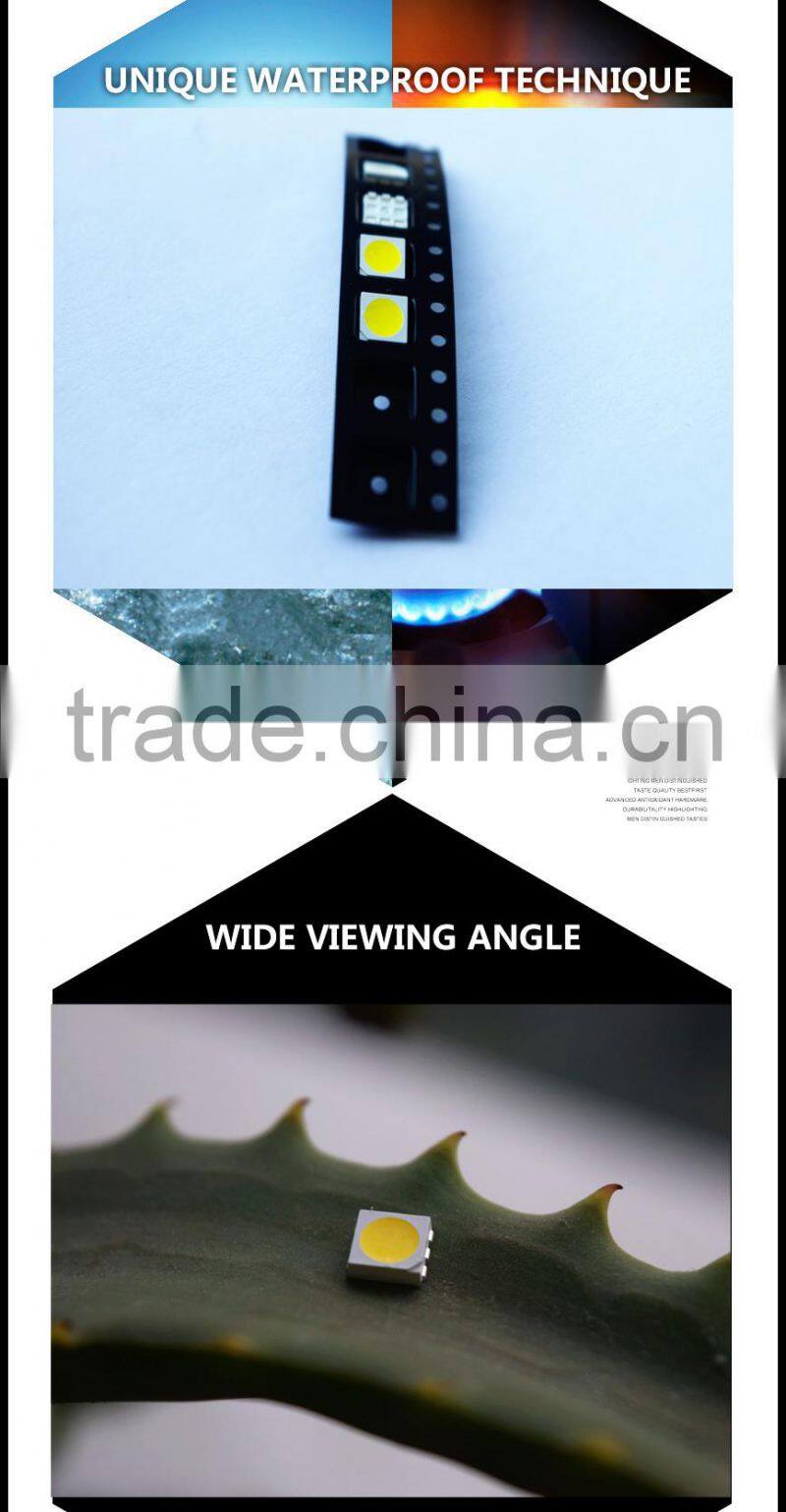

1. Extremely wide viewing angle

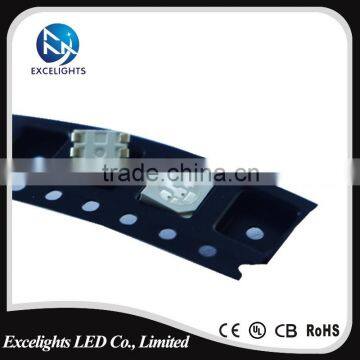

2. Available on tape and reel
3. Suitable for all SMT assembly and solder process
4. Moisture sensitivity level: level 4
5. High CRI
6. With re-flow soldering technology
7. High consistency in light color, high cost-effective
3. Applications for 5730 smd led specifications
1. Optical indicators
2. Indoor displays
3. Interior automotive lighting
4. Backlight for LCDs, switch and symbols and displays
5. Light pipe applications

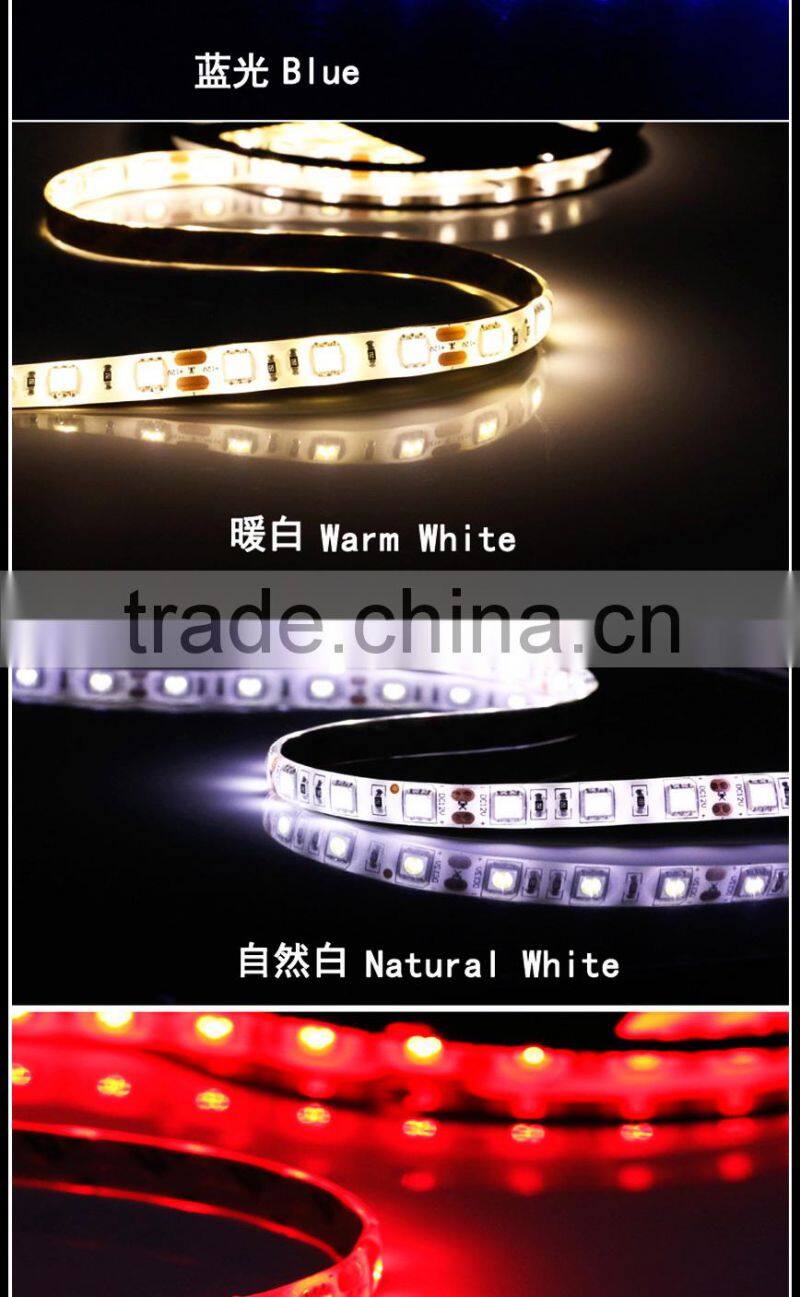

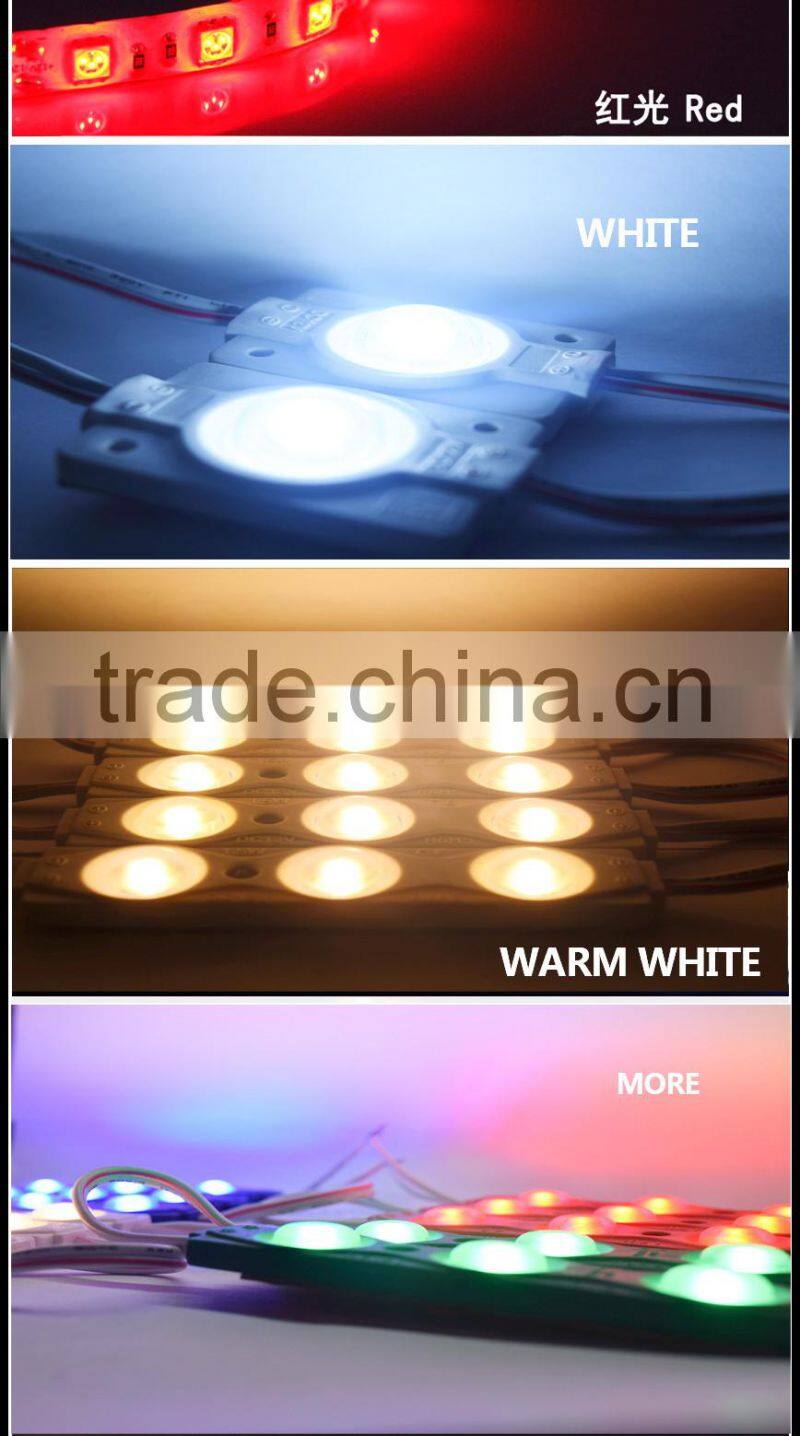

6. Used for LED Strips, LED Modules, LED Tubes and LED Spot lights.
Packaging & Shipping
5730 smd led specifications:
0.07KG/K
216KG/CTN
15KG/CTN
Size for carton:52*31*41cm 1.35kg/ctn
