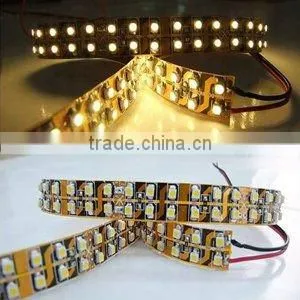

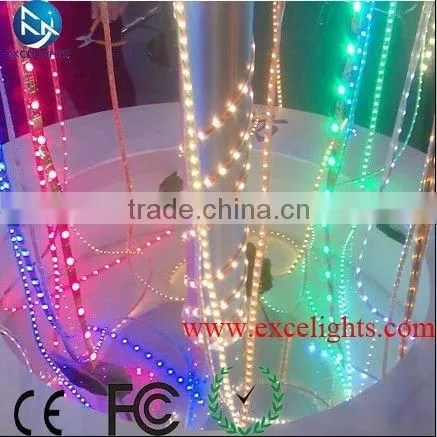

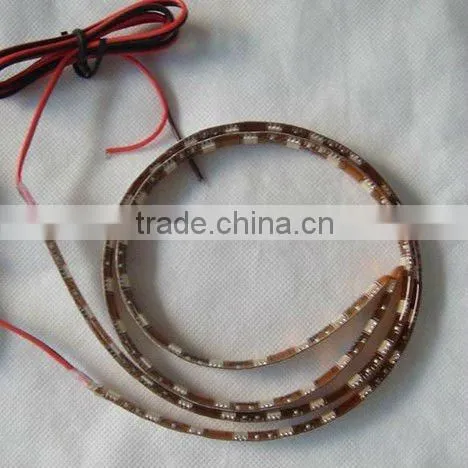

Flexible Waterproof Pink 5050 Led Strip

Flexible Waterproof Pink 5050 Led Strip thumbnail-1
Flexible Waterproof Pink 5050 Led Strip photo-1
US$ 0.7 - 1.5 MOQ: 30 Pieces
Key Specifications
Get Latest Price
Emitting Color:
White
Place of Origin:
Guangdong, China
Brand Name:
EL
Contact Supplier Request Quote Chat Now
Dongguan Excelights Led Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Emitting Color White
Place of Origin Guangdong, China
Brand Name EL
Model Number 5050 60 led

Specifications

pink 5050 led strip
1.CE and RoHS approval
2.Provide OEM service
3.Do 5050,3528,335SMD LED Light Source



pink 5050 led strip

flexible waterproof pink 5050 led stripflexible waterproof pink 5050 led strip

4Specifications:

 flexible waterproof pink 5050 led strip

We are a manufacture of led products  led spot lamp led tube bulb strip flood lamp underwater lamp underground lamp ....  in China

Description:

1.Power:9.6W/M,48W/Roll

2.LED quantity:120leds/M,600leds/Roll

3.Size:PCB1003*8MM,5M/Roll

4.LED Type:SMD3528 / 1210

5.Voltage:DC12V or DC24V

6.Cuttable every 3 LEDs

7.Waterproof:No waterproof,IP65/8 Waterproof.

8.Choice PCB color: Black,White,Copper

9.Operating temperature:-20+80 degree

10.Storage temperature:-20+80 degree

11.Packing: 5 meters per reel

12.Certificate:CE,RoHS

Can be pasted anywhere on the car

Working voltage: DC12V, 24V

Colors available: white, red, yellow, blue, green

Waterproof "B" IP65, glued with silicon tube LED flexible strips



Applications:

  • Commercial and residential decoration
  • Under-counter lighting
  • Media illumination
  • Small to medium channel letters
  • Piont-of-sale diaplay
  • Neon replacement

Products Features

  • SMD LED Type : SMD5050
  • Color available:  Pure white  (W), Warm white (WW), Cold white (CW),  Red (R), Green (G), Blue (B), Yellow (Y), Pink(PI), Purple(PU), RGB Full color.
  • View Angle : ≥120°
  • Power : 72W, DC12V, Max 6A
  • Size : L5000mm*W13mm*H3.5mm
  • LED quantity: 60leds/meter, 3-led cuttable
  • Standard package : 300leds / 5meters /reel
  • Luminous Flux:Red ( 3200lm), Green ( 4000lm), Blue ( 3400lm), Yellow ( 3500lm),  Pure white (4000lm), Warm white (3200lm), cold white ( 4000lm) , RGB( Red:334lm /Green:832lm /Blue: 376lm)
  • Life span : 50000 hours
  • Wire output single color : output two wires with red (+) and Black ( - )
  • Wire output RGB color :  output four wires with red , green, blue(-) and Black (+ )
  • Backside: 5000mm*13mm  3M double side adhesive tape
  • Environment parameter :Working temperature: -20°C- +65°C; Storage temperature:-30°C- +70°C

Item No.

Color

LED quantity

(pcs / meter)

Luminous Flux (lm)

Voltage (V)

Current (A)

el-FR5050W60B-12

White

60

4000

12VDC

6A

el-FR5050WW60B-12

Warm white

60

3200

12VDC

6A

el-FR5050Y60B-12

Yellow

60

3500

12VDC

6A





Item Model Color Voltage Work current
 /meter		 Wattage/M Specification Wattage/m
Quantity
pcs/m		 Lums/LED Angle
EL-NS3528PW60 pure white 12V DC 360-400mA 4.3-4.8W 60 5.5lm 120 4.8W
EL-NS3528WW60 warm white 5lm
EL-NS3528R60 Red 3lm
EL-NS3528G60 Green 4lm
EL-NS3528B60 Blue 3lm
EL-NS3528Y60 Yellow 3lm
EL-NS3528PI60 Pink 3lm
EL-NS3528PU60 Purple 3lm

 flexible waterproof pink 5050 led stripflexible waterproof pink 5050 led strip

flexible waterproof pink 5050 led stripflexible waterproof pink 5050 led strip

Features:

Easy installation: just paste it anywhere on the car

Solid-state, high-shock and vibration-resistant

Low power draw,puts less load on the automobile electrical system

Long life 100,000h

High-intensity

Built-in current-limiting resistors

24 months free warranty

Applications:

Used on the automobile as indication light, or decorative lighting,ect.
