SFAD 2.4m3/min Refrigerated Compressed Air Dryer for Screw Air Compressor Quality Choice

SFAD 2.4m3/min Refrigerated Compressed Air Dryer for Screw Air Compressor Quality Choice thumbnail-1
SFAD 2.4m3/min Refrigerated Compressed Air Dryer for Screw Air Compressor Quality Choice thumbnail-2
SFAD 2.4m3/min Refrigerated Compressed Air Dryer for Screw Air Compressor Quality Choice thumbnail-3
SFAD 2.4m3/min Refrigerated Compressed Air Dryer for Screw Air Compressor Quality Choice thumbnail-4

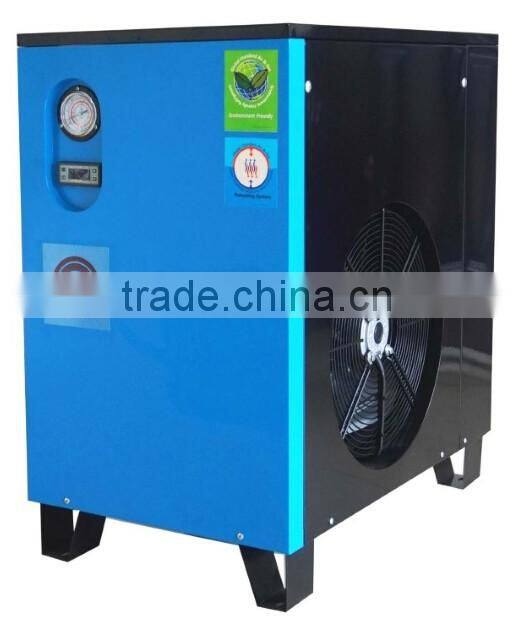

SFAD 2.4m3/min Refrigerated Compressed Air Dryer for Screw Air Compressor Quality Choice photo-1

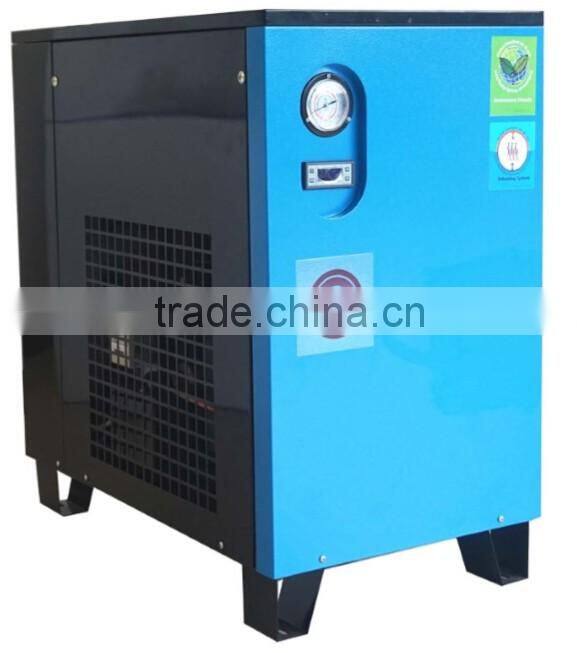

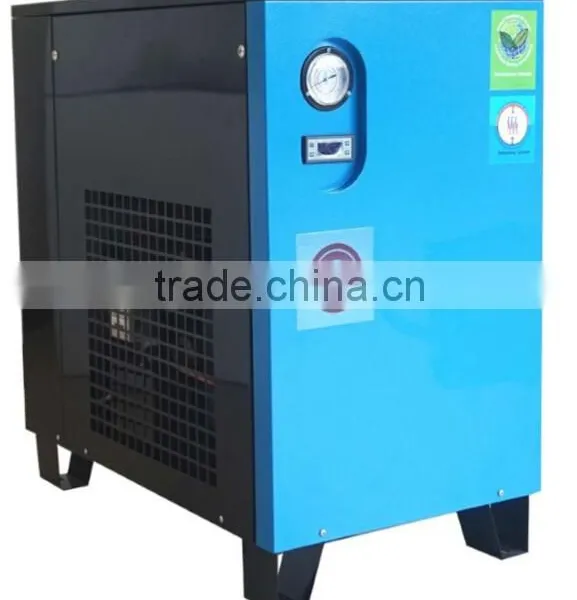

SFAD 2.4m3/min Refrigerated Compressed Air Dryer for Screw Air Compressor Quality Choice photo-2
SFAD 2.4m3/min Refrigerated Compressed Air Dryer for Screw Air Compressor Quality Choice photo-3
SFAD 2.4m3/min Refrigerated Compressed Air Dryer for Screw Air Compressor Quality Choice photo-4
US$ 650 - 850 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
SUNFILTER
Model Number:
SFAD-2HTF
Contact Supplier Request Quote Chat Now
Shanghai Sunfilter Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name SUNFILTER
Model Number SFAD-2HTF
Type Air Dryer
Product Description

SFAD 2.4m3/min refrigerated compressed air dryer for screw air compressor


Air contains contaminants like solid (dust particles), liquid (moisture) and oil which contaminates the compressed air. When this contaminated compressed air is used for various applications, it may cause failures of pneumatic valves, instruments, etc which results in the downtime of whole system.So behind the gas equipment is used to the our refrigerated air dryer.

Main Features

1).Low pressure dew point 3~5℃;
2).Aluminium plate heat exchanger;                                                                                                                                                        3).Low noise and low vibration;
4).Reliable,energy-saving,fully hermetic compressors use environmentally friendly R410A refrigerant.
5).There are more than 10 years of experience in OEM and ODM factory.
The technical data of the 2.4m3/min SFAD refirgerated air dryer



                                             Item
                                   Description
                                           Model
                                      SFAD-2HTF
                                Air Flow capacity
                             2.4 m³/min (85cfm)
                               Working pressure
                          ≤1.5Mpa(15bar or 218psi)
                                 Air connections
                                          Rc3/4”
                           Max.inlet temperature
                                            60℃
                          Max.Ambient temperature
                                            50℃
                                     Refrigerant
                                          R410a
                              Pressure dew point
                                           3~5℃
                                 Nominal Power
                                            1HP
                                    Voltage
                                   220V/1PH/50HZ
                                    Weight
                                             80KG
                              Dimension(L*W*H)
                                   600*400*730MM
The related SFAD series air dryer
                              Model
 Capactity
Nominal Power
Power Supply
Air                    connections
 Dimensions(mm)
 Weight
Nm3/min
      Hp
    V/Ph/Hz
   L
 W
  H
      Kg
SFAD-1HTF
      1.2
    1/3
    220/1/50
     Rc3/4"
580
400
730
     50
SFAD-2HTF
      2.4
      1
    220/1/50
     Rc3/4"
600
400
730
     80
SFAD-3HTF
      3.8
    1 1/4
    220/1/50
     Rc1"
750
450
790
     105
SFAD-6HTF
      6.5
    1 1/2
    220/1/50
     Rc1 1/2"
800
450
820
    150
SFAD-8HTF
      8.5
     1 1/2
    220/1/50
      Rc1 1/2"
800
450
820
     160
SFAD-10HTF
      10.7
       3
    380/3/50
         Rc2"
950
580
900
     240
SFAD-13HTF
     13.5
       3
    380/3/50
         Rc2"
950
580
900
     260
SFAD-15HTF
       17
     3 1/2
    380/3/50
         Rc2"
1100
680
960
    310
SFAD-20HTF
       23
       4
    380/3/50
         Rc2.5
1250
800
1050
    400
SFAD-25HTF
       28
       5
    380/3/50
         DN80
1250
800
1050
    450
SFAD-30HTF
       35
       6
    380/3/50
         DN80
1300
800
1170
    780
SFAD-40HTF
        45
       10
    380/3/50
        DN100
1600
1000
1340
     820
Detailed Images

Machine Parts

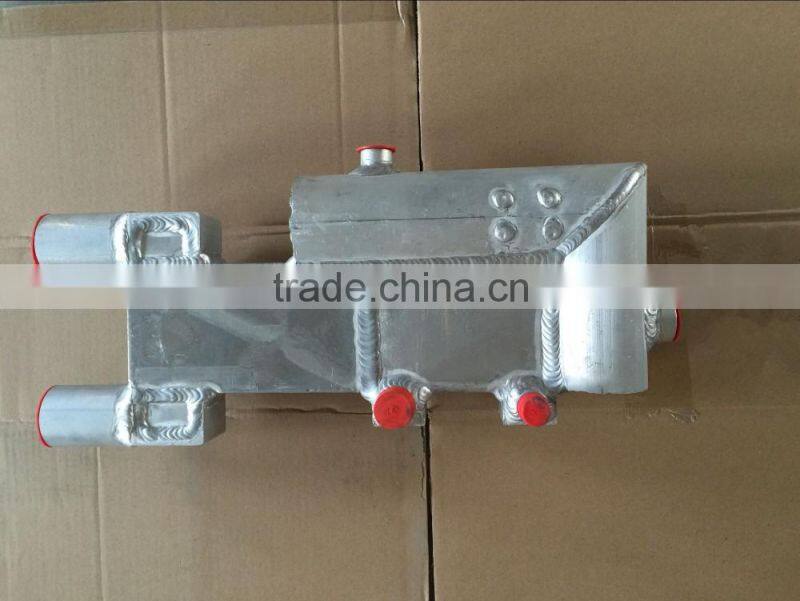

Name: Aluminium plate exchanger

Brand:Sunfilter

Original:China

The air/air and refrigerant/air heat exchangers are fitted with large diameter aluminium tubes. The smooth inner walls of the tubes are effective in preventing dirt deposits, resulting in a low differential pressure of the Sunfilter.dryer refrigeration dryer.

Machine Parts

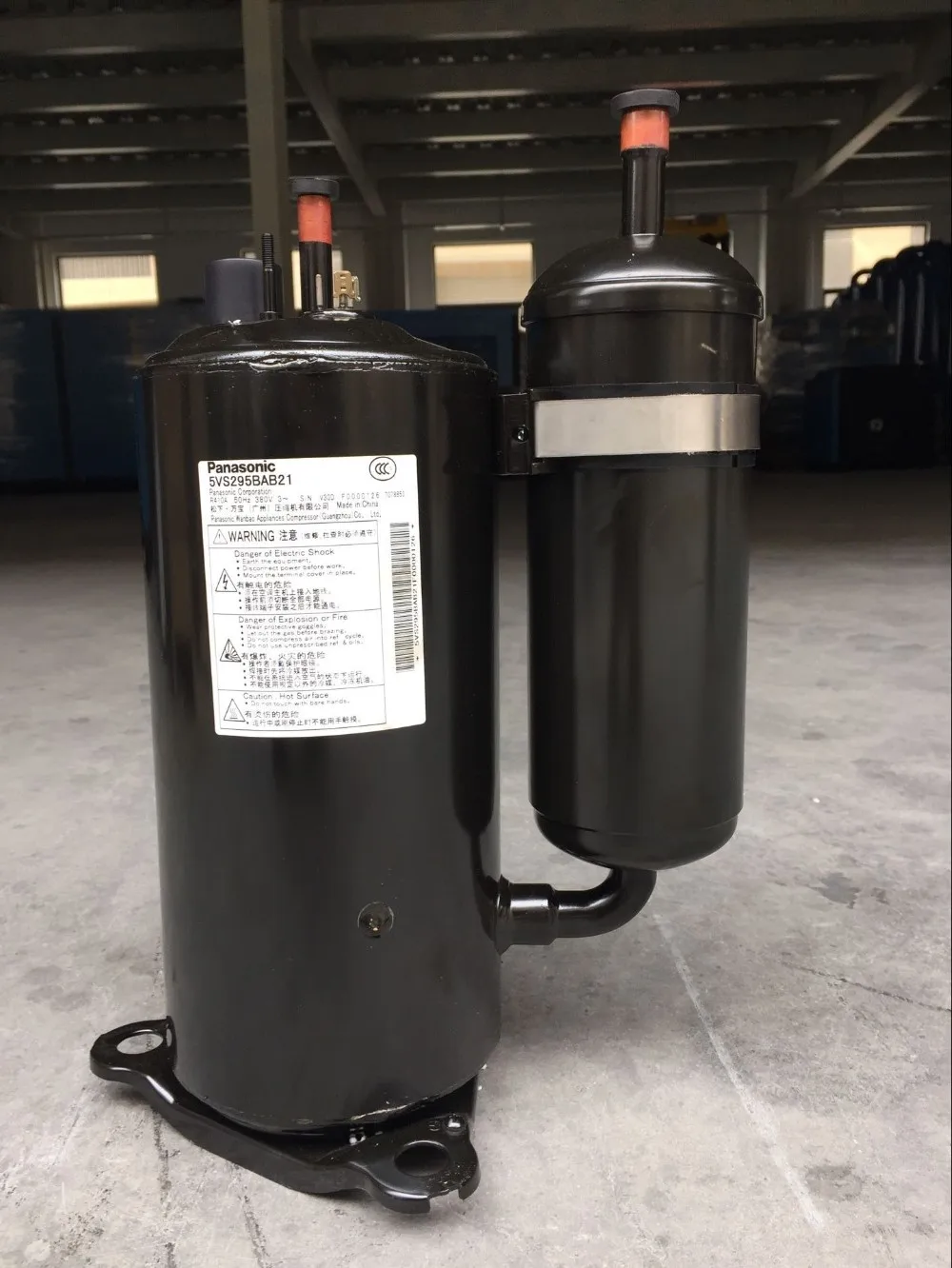

Name:Refrigerated compressor
Brand:Panasonic
Original:Japan
The famous Refrigerated Compressor operation stability and long service life

Machine Parts

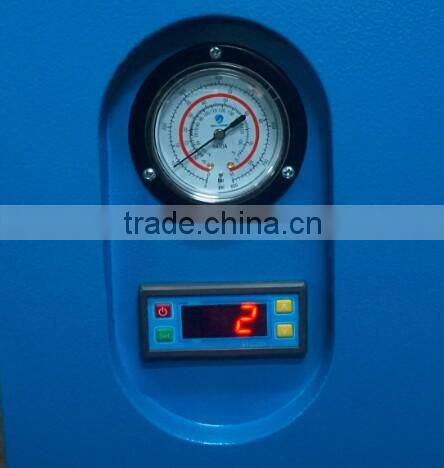

Name:Air dryer controller
Brand:Elitech
1.The digital controller which display and precise control Dew Point degree.
2.Programmed to achieve energy-saving operation

Machine Parts

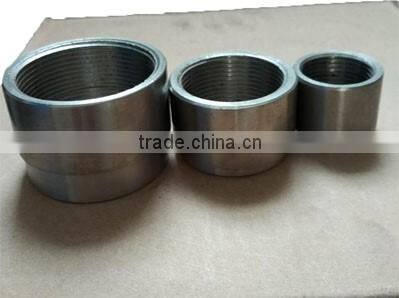

Name: Stainless steel air connection
1. The stainless steel air connection has long
service life.
2.Better corrosion resistance.

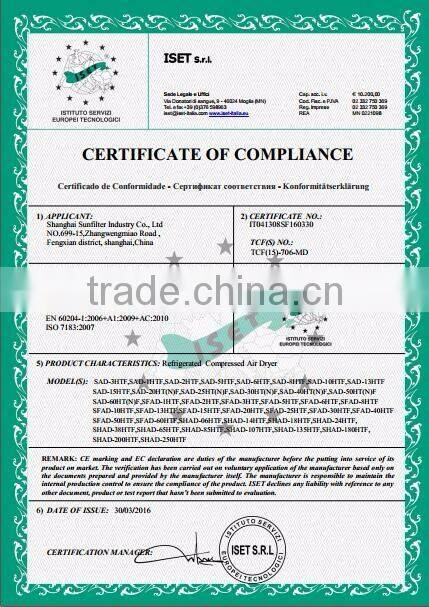

Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
700 (L) * 500 (W) * 830 (H)mm
Weight
90KG



Packaging Details
                                                                                                                                                                The normal package is wooden box(Size: L*W*H).
