Home > Products > LED Module > 2015 Hot NEW Low Cost and High brightness led module 2835
2015 Hot NEW Low Cost and High brightness led module 2835
- 100000 Piece / Pieces per Month
- DONGGUAN PORT
- T/T Credit Card PayPal
Product Details
Model Number: | EL-MDA02-WW | Chip Material: | Other, GOLD WIRE | Emitting Color: | Warm White |
Luminous Intensity: | 19800mcd | Luminous Flux(lm): | 60ML | Optical Attenuation(%): | 0.3 |
Power: | Other, 0.72 | Power Dissipation: | 0.72 | Color Rendering Index(Ra): | 85 |
Color Temperature: | 6000-6500 | Operating Temperature(℃): | -40, 80 | Storage Temperature(℃): | -40, 80 |
Place of Origin: | Guangdong, China | Brand Name: | EXCELIGHTS | Certification: | CE |
Product Description
Single color led module :
Specifications for Single color led module:
1. Lighting source: 2835 SMD LED
2. Quantity of LED: 3 PCS
3. Operating voltage: 12V DC
4. Wattage: 0.36W
5. Dimension: 75*12 mm
6. Forward current: 30mA
7. Waterproof grade: IP65 Epoxy resin
8. Viewing angle: 120°
9. Color: Various colors are available
Features for Single color led module
1. Wide applicability, easy to install and maintain
2. Extremely luminous, with wide viewing angle
3. Energy saving and environmental friendly
4. Various colors are available
5. Very bright and low power consumption
6. Long lifesapn: More than 50, 000 hours.
Item | Color | LED Quantity | Voltage | Wattage | size(mm) |
EL-MDAPW | White | 2835-3pcs | 12V DC | 0.36W | 75*12mm |
EL-MDACW | cool white | ||||
EL-MDAWW | warm white | ||||
EL-MDAR | Red | ||||
EL-MDAG | Green | ||||

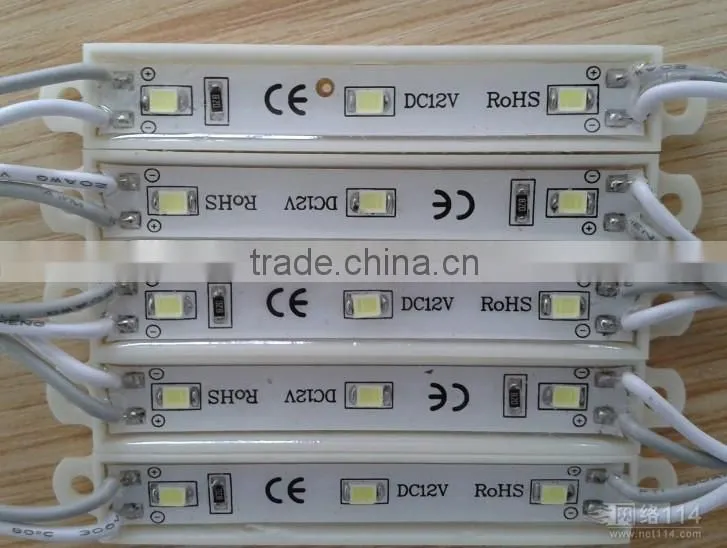

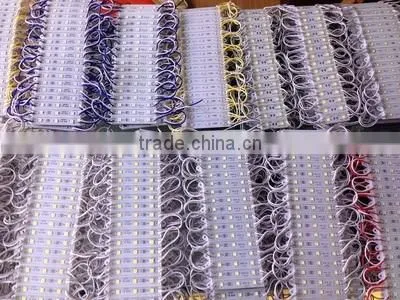

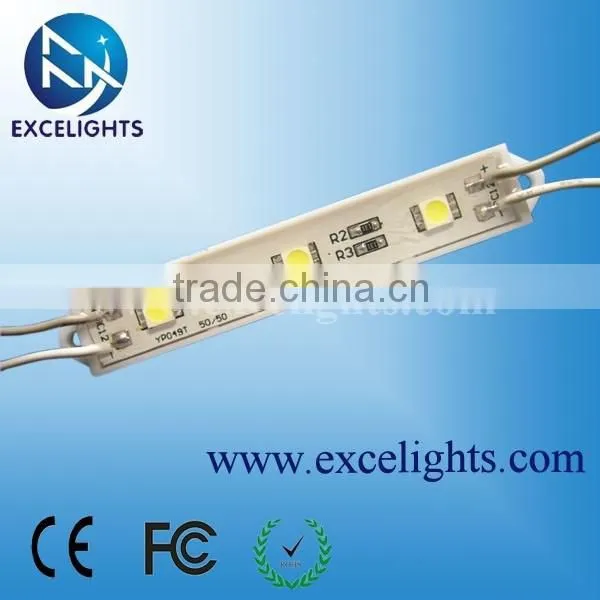

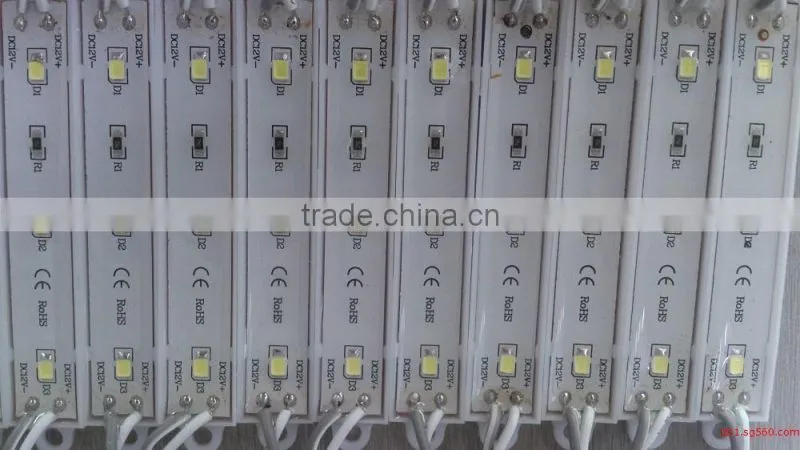

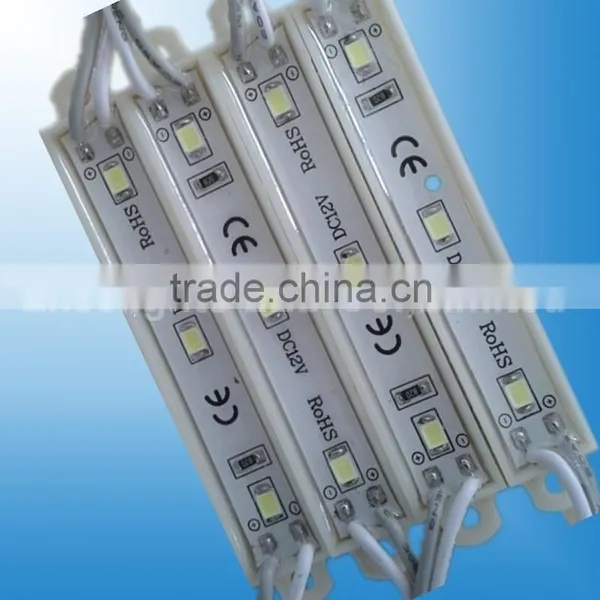

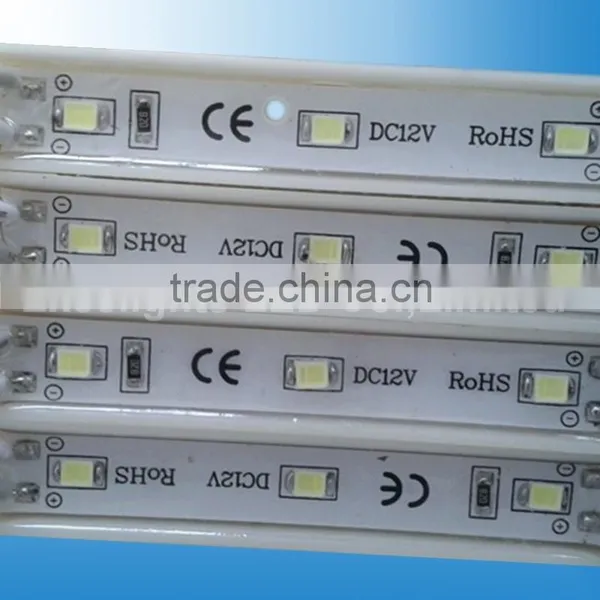

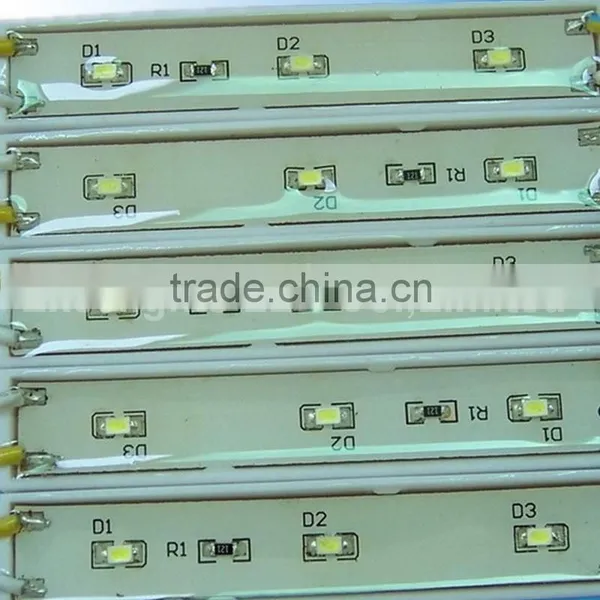

Products show for Single color led module
3. Application for Single color led module:
1. Idea for in cabaret, cabinet, furniture, landscape, and architectural lighting
2. Channel-letter backlights, signboard, sign and decoration, and more high luminance efficiency and low power consumption
3. For cable and fixing hole
4. Channel letters backlighting
5. Advertisement signs acklighting
6. Advertisement light boxes backlighting
4. Certifications for 2835 led module light:
Machines for doling light source:
Installation Instruction for 2835 led module light:
1. Main power cable dimension: should exceed 2x1.5mm². To prevent damage from overheating caused by overload, the extended module cable (if necessary) should adopt dimension above 0.75mm²/18#.,Cable length between power and module should not be exceed 2m, if not it’ll suffer from power loss the total power consumption will also increased.
2. Adopt method 1, the maximum is 20 PCS. (Don’t over-connecting).
3. Adopt method 2, the maximum is 25 PCS. (Don’t over-connecting).
4. Take off the adhesive tape from the back of modules, stick them in the light box or advertisement board for initial settlement, then fix the module by 2 piece of ST2.9x10 mm self tapping screws, or you can also fix the module by glass glue.
5. The standard number is 20 pcs for each string; they also can be cut off on customer’s requirement.
6. During the connection,using diagonal pliers to cut off power cable between modules, peel off the plastic around 10mm, wiring the cables and then connect them to their respective isolation port(the white-red cable heads to positive,the white cable for negtive).Do remember check the conductivity and reliablity of the cable after the connection, genernally, they can’t be pulled out of the port by middling force.
7. If there are extra cable for the string-end module, peel off the cable coat by 10mm (around)then connect then into isolation port.
8. To make sure that the waterproof and anti-corrosive reliability, grease some silicon glue (neutral glass glue or waterproof glue.) into the connection port for further protection.
9. Don’t touch the product when they are electrified.
10. Use reliable power driver that with certifications. (With short circuit protection, overload protection and over-current protection.)
Our market:
weight for 1pcs: 0.005kg
Quantity/ctn:2500pcs
Size for ctn: 52*30*40cm
Net weight: 12.725kg
Gross weight:13.725kg
We can offer OEM-Service.
We can serve you at any time.
All of our products can offer three years warranty.
Excelights LED Co., Limited is a professional manufacturer which specializes in manufacturing, developing and selling SMD LEDs and LED Lights since 2006. Excelights has acquired a reputation for product innovation and sales performance and supported a few customers covered U.K, US, Japan, Italy, Germany, Spain, Finland, Chile and some other countries.
We have several kinds of LED products which include SMD LED (3528,335,5050,020 etc), LED strip lights, LED rigid bar, LED Tubes(T8/T10/T5),LED Bulb ,LED Spotlight, LED modules, LED Downlight, Panel light, Grow Light.All of our products are warmly welcomed in most European and American markets.
Due to our high quality products, most competitive cost-performance , stronger production , advanced LED control technology and nice service system, Excelights has gain a high reputation both at home and abroad and become one of the most famous service-oriented suppliers in LED field in China.
