Packaging Detail:1. plastic bag+color box+wooden pallets 2.As the dients‘ requirement
Shipping Detail:Shipping by sea, air or express delivery are all available.
number of stage | 1-stage | 2-stage | 3-stage | |||||||||||||||
reduction ratio i | 3 4 5 7 10 | 12 16 20 25 28 35 40 50 70 100 | 80 100 125 140 175 200 250 350 400 500 700 1000 | |||||||||||||||

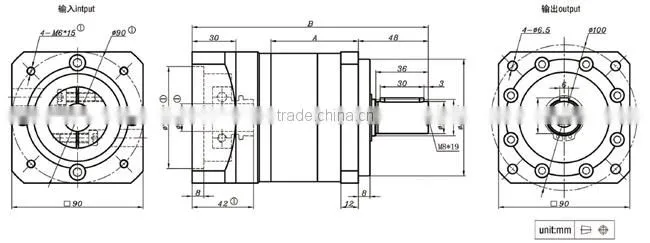

body length A(mm) | 61.0 | 86.0 | 111.0 | |||||||||||||||
overall length B(mm) | 154.0 | 179.0 | 204.0 | |||||||||||||||
nominal input speed(rpm) | 3500 | 3500 | 3500 | |||||||||||||||
max input speed(rpm) | 6000 | 6000 | 6000 | |||||||||||||||
max radial torque(N) | 1020 | 1270 | 1420 | |||||||||||||||
max axial torque(N) | 850 | 1100 | 1250 | |||||||||||||||
driving moment torque(N.m) | ≈ 0.8 | ≈ 0.4 | ≈ 0.4 | |||||||||||||||
full load efficiency(%) | 96 | 94 | 90 | |||||||||||||||
backlash (arcmin) | precision | <3 | <5 | <8 | ||||||||||||||
standard | <8 | <10 | <12 | |||||||||||||||
running noise(dB) | ≤62 | ≤62 | ≤62 | |||||||||||||||
weight(Kg) | 2.8 | 3.4 | 4.0 | |||||||||||||||
lifetime(h) | >20,000 | |||||||||||||||||
torsional stiffness(N.m/arcmin) | 7.5 | |||||||||||||||||
lubrication type | lifetime lubrication | |||||||||||||||||
degree of protection IP | IP65 | |||||||||||||||||
mounting type | any | |||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||||
reduction ratio i | 3 | 4 | 5 | 7 | 10 | 12 | 16 | 20 | 25 | 28 | 35 | 40 | 50 | 70 | ||||
nominal output torque | 60.0 | 86.0 | 94.5 | 64.0 | 39.5 | 30.0 | 96.0 | 96.0 | 105.5 | 96.0 | 105.5 | 96.0 | 105.5 | 71.5 | ||||
maxl output torque | 120.0 | 172.0 | 189.0 | 128.0 | 79.0 | 192.0 | 192.0 | 192.0 | 211.0 | 192.0 | 211.0 | 192.0 | 211.0 | 143.0 | ||||
moment of inertia | 0.4 | 0.309 | 0.291 | 0.285 | 0.283 | 0.4 | 0.309 | 0.291 | 0.291 | 0.285 | 0.285 | 0.283 | 0.283 | 0.283 | ||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||||
reduction ratio i | 80 | 1002 | 1003 | 125 | 140 | 175 | 200 | 250 | 280 | 350 | 400 | 500 | 700 | 1000 | ||||
nominal output torque | 120.0 | 44.0 | 120.0 | 132.0 | 120.0 | 132.0 | 120.0 | 132.0 | 120.0 | 132.0 | 44.0 | 132.0 | 89.5 | 55.0 | ||||
maxl output torque | 240.0 | 88.0 | 240.0 | 264.0 | 240.0 | 264.0 | 240.0 | 264.0 | 240.0 | 264.0 | 88.0 | 264.0 | 179.0 | 110.0 | ||||
moment of inertia | 94.5 | 0.283 | 94.5 | 94.5 | 0.285 | 0.285 | 0.283 | 0.283 | 0.283 | 0.283 | 0.283 | 0.283 | 0.283 | 0.283 | ||||
Detail
Advantages of Our Planetry Gearbox(precise) :
Lowest backlash(<3arcmin);
high output torques high efficiency(96%);
honed toothings;low noise(<65dB);
easy motor mounting.
Workshop
Quality control
QC / Technical Support
The QC department of us is fully equipped with all the necessary testing and inspection facilities. We also have experienced professional inspectors and Engineers guided by an ISO 9001:2000 certified quality management system.
QC Staff
14-20
Materials/Components
Some QC instruments and meters are sourced domestically, and some are imported form the Germany and Japan.
Procedures/testing details
All raw material and components are subject to rigid metallurgical tests and only qualified materials are used.
All components processed in every manufacturing stage are inspected and tested strictly.
100 percent inspection and testing is carried out before packing.
Inspection flow:
1. Packing checking: products quantity, packing method, packing mark, products putting.
2. Appearance checking: Put products at the place of 46cm from eyes, inspect with seeing, feeling plug gauge and graduated scale.
3. Machine performance inspection.
4. Electricity performance inspection.
5. Insides of products inspection.
6. Character and reliability testing: Life testing and Temperature test in operation
Application
Application
adapted to various kinds of electric motor ,it can be widely applied to the fields of the numerical control machinery,cutting equipment,textile printing&dying ,packing machinery,plastic machinery,medical machinery,electric equipment,metallurgy,industrial robot,machine tools transform,aerospace industry etc.
FAQ
Why choose us
Company view
The patent certificate
Our purpose:
"faith-based science and technology, honesty and trustworthiness, innovation, perfect quality, Customer satisfaction" . We have diversified products to meet the needs of clients.
Welcome to contact us for more information or send us inquiry with details directly.
