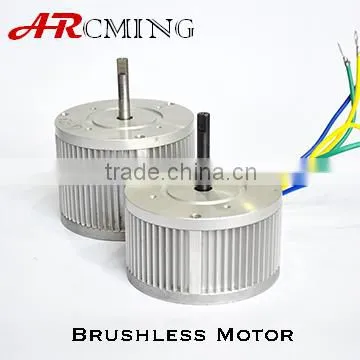

500w Brushless DC Motor for Model of aircraft

Specifications

1. Flexible customization capabilities
2. Low noise, smooth operation
3. Long life, low maintenance costs
4. Low interference

Packaging Detail:1. plastic bag+color box+wooden pallets 2.As the dients‘ requirement

Shipping Detail:Shipping by sea, air or express delivery are all available.

Brushless motor list
Inner Rotor
No.	Stator (mm)	Diameter (mm)	Length (mm)	Shaft (mm)	Rated voltage (V)	Rated power(W)	Rated speed(RPM)	Rated torque(N.m)
1	24	30	35-60	3--5	12VDC-72vdc	2-50	2000-30000	0.1 MAX
2	34	36	35-70	3--5	12VDC-73vdc	3-60	2000-30000	0.2 MAX
3	33	35	35-70	3--5	12VDC-74vdc	3-60	2000-30000	0.5 MAX
4	36	40	35-70	≤7	12VDC-75vdc	3-120	2000-30000	0.5 MAX
5	40	42--55	30--90	≤8	12VDC---540VDC ≤ 380VAC	5--240	100-20000	0.5 MAX
6	44	46--60	30--90	≤8		5--240		0.6 MAX
7	50	55--60	30--100	≤8		5--350		0.8 MAX
8	60	65--75	30--110	≤10		5--400		1 MAX
9	66	70--80	30--110	≤10		5--400		1.5 MAX
10	70x70	@	30--110	≤12		5--400		1.5 MAX
11	82	90--95	35--120	≤17		5--1000		4 MAX
12	85	92--100	35--120	≤17		5--1200		5 MAX
13	88	94--100	35--120	≤17		5--1500		6.5 MAX
14	100	115--120	40--150	≤17		5--3000	50--10000	10 MAX
15	120	140--150	40--180	≤25	24VDC---540VDC ≤ 380VAC	5--4000		15 MAX
16	121.7	140--150	40--180	≤25		5--4000		15 MAX
17	160	170x170	50--240	≤45		5--6000	50--8000	22 MAX
Outerside Rotor
1	55	≥68	≥30	≤12	12VDC---540VDC	0--350	0--10000	2 MAX
2	92	≥106	≥45	≤25		0--2000	0--8000	15 MAX
3	130	≥150	≥50	≤30	24VDC---540VDC	0--4000	0--5000	25 MAX

Detail

lThe advantage of the brushless motor:

1. Brushless, low interference

Brushless motor eliminates brushes, the most immediate change is that there is no spark generated when the motor is running, thus greatly reducing the spark radio interference.

2. Low noise, smooth operation

Brushless motor has no a brush, the friction is greatly reduced in running, and smooth operating; noise will be much lower, this advantage is a huge support for the model running stability.

3. Long life, low maintenance costs

There is no brush, so the main loss of brushless motor is from the bearing, at the mechanical point of view, the brushless motor is an almost none maintenance electric motor, and when necessary, you can only clean some dust.

Workshop

Quality control

QC / Technical Support
The QC department of us is fully equipped with all the necessary testing and inspection facilities. We also have experienced professional inspectors and Engineers guided by an ISO 9001:2000 certified quality management system.
QC Staff
14-20
Materials/Components
Some QC instruments and meters are sourced domestically, and some are imported form the Germany and Japan.
Procedures/testing details
All raw material and components are subject to rigid metallurgical tests and only qualified materials are used.
All components processed in every manufacturing stage are inspected and tested strictly.
100 percent inspection and testing is carried out before packing.
Inspection flow:
1. Packing checking: products quantity, packing method, packing mark, products putting.
2. Appearance checking: Put products at the place of 46cm from eyes, inspect with seeing, feeling plug gauge and graduated scale.
3. Machine performance inspection.
4. Electricity performance inspection.
5. Insides of products inspection.
6. Character and reliability testing: Life testing and Temperature test in operation

Application

lThe application of scope:

Usually used in the equipment with high control requirements and high speed, such as model of aircraft, precision instruments and other device with strict control of the motor speed, so it was only the use of high-end equipment.

Aerospace, aviation, marine, ships, military etc.
Machine tools, machining centre, robots, robotics, artificial limbs etc.
Textile machinery, chemical machinery, petroleum machinery, metallurgical machinery, light machinery, printing, printing machinery, carton packaging machinery, energy, machinery, energy equipment etc.
Medical equipment, communications equipment, electronic manufacturing equipment, radar equipment, satellite ground receiving equipment, semiconductor manufacturing equipment, automatic control equipment, automatic welding equipment, optical manufacturing equipment etc.
Power tools, advanced instruments, measuring instruments, analytical instruments, electrical tools etc.
Electric bicycles, electric scooters, electric scooter, electric golf carts, electric wheelchairs, electric beach car etc.

FAQ

Why choose us

Company view

The patent certificate

Our purpose:

"faith-based science and technology, honesty and trustworthiness, innovation, perfect quality, Customer satisfaction" . We have diversified products to meet the needs of clients.

Welcome to contact us for more information or send us inquiry with details directly.
