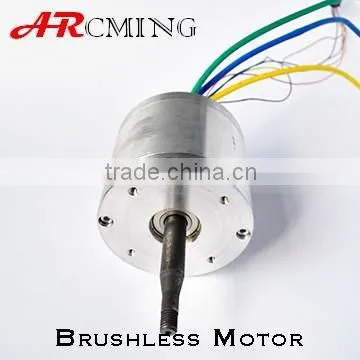

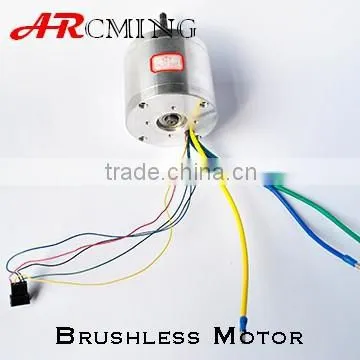

Help CenterMake Brushless dc Motor 24V 200W
Related Products
Specifications
1. Flexible customization capabilities2. Low noise, smooth operation
3. Long life, low maintenance costs
4. Low interference
Packaging Detail:1. plastic bag+color box+wooden pallets 2.As the dients‘ requirement
Shipping Detail:Shipping by sea, air or express delivery are all available.
| Brushless motor list | ||||||||
| Inner Rotor | ||||||||
| No. | Stator (mm) | Diameter (mm) | Length (mm) | Shaft (mm) | Rated voltage (V) | Rated power(W) | Rated speed(RPM) | Rated torque(N.m) |
| 1 | 24 | 30 | 35-60 | 3--5 | 12VDC-72vdc | 2-50 | 2000-30000 | 0.1 MAX |
| 2 | 34 | 36 | 35-70 | 3--5 | 12VDC-73vdc | 3-60 | 2000-30000 | 0.2 MAX |
| 3 | 33 | 35 | 35-70 | 3--5 | 12VDC-74vdc | 3-60 | 2000-30000 | 0.5 MAX |
| 4 | 36 | 40 | 35-70 | ≤7 | 12VDC-75vdc | 3-120 | 2000-30000 | 0.5 MAX |
| 5 | 40 | 42--55 | 30--90 | ≤8 | 12VDC---540VDC ≤ 380VAC | 5--240 | 100-20000 | 0.5 MAX |
| 6 | 44 | 46--60 | 30--90 | ≤8 | 5--240 | 0.6 MAX | ||
| 7 | 50 | 55--60 | 30--100 | ≤8 | 5--350 | 0.8 MAX | ||
| 8 | 60 | 65--75 | 30--110 | ≤10 | 5--400 | 1 MAX | ||
| 9 | 66 | 70--80 | 30--110 | ≤10 | 5--400 | 1.5 MAX | ||
| 10 | 70x70 | @ | 30--110 | ≤12 | 5--400 | 1.5 MAX | ||
| 11 | 82 | 90--95 | 35--120 | ≤17 | 5--1000 | 4 MAX | ||
| 12 | 85 | 92--100 | 35--120 | ≤17 | 5--1200 | 5 MAX | ||
| 13 | 88 | 94--100 | 35--120 | ≤17 | 5--1500 | 6.5 MAX | ||
| 14 | 100 | 115--120 | 40--150 | ≤17 | 5--3000 | 50--10000 | 10 MAX | |
| 15 | 120 | 140--150 | 40--180 | ≤25 | 24VDC---540VDC ≤ 380VAC | 5--4000 | 15 MAX | |
| 16 | 121.7 | 140--150 | 40--180 | ≤25 | 5--4000 | 15 MAX | ||
| 17 | 160 | 170x170 | 50--240 | ≤45 | 5--6000 | 50--8000 | 22 MAX | |
| Outerside Rotor | ||||||||
| 1 | 55 | ≥68 | ≥30 | ≤12 | 12VDC---540VDC | 0--350 | 0--10000 | 2 MAX |
| 2 | 92 | ≥106 | ≥45 | ≤25 | 0--2000 | 0--8000 | 15 MAX | |
| 3 | 130 | ≥150 | ≥50 | ≤30 | 24VDC---540VDC | 0--4000 | 0--5000 | 25 MAX |
Detail
motor factory report
|
Specifications / Technical Data NICK 1/1
| |
Typ / type |
BLDC |
nominal power |
200W |
nominal speed |
16000rpm |
nominal voltage |
24 VDC |
nominal torque |
0.118 Nm |
no load speed |
16800rpm |
maximum no load current |
2.0A |
maximum current |
10A (max. 5sec) |
Maximum peak torque |
0,215 Nm |
Single-phase resistance( R) |
43.3mOhm±5% |
max. motor temperature |
80 °C |
max. winding temperature |
155°C |
number of poles |
2 pair poles |
lifetime |
10000 h |
degree of protection |
IP 41 |
isolation class |
F |
|
|
Motor / drive unit | |
|
Geräusch in 1000mm Abstand im Leerlauf bei max. 35 dB Umgebungs- geräusch, in Geräuschkammer geprüft / noise measured at distance of 1000mm max. 50dBA at no load and max. 35 dB ambient noise in noise isolated test room |
max. 58dBA |
Surface treatment |
Oiler deal |
storage temperature |
5°C bis/to +35 °C
|
working temperature |
-30 °C bis/to +50 °C |
|
max. Motortemperatur (Gehäuse) bei Rt=20°C / maximum 80°C motor temperature at 20°C |
80°C |
Gewicht / weight |
1.3kg
|
lThe advantage of the brushless motor:
1. Brushless, low interference
Brushless motor eliminates brushes, the most immediate change is that there is no spark generated when the motor is running, thus greatly reducing the spark radio interference.
2. Low noise, smooth operation
Brushless motor has no a brush, the friction is greatly reduced in running, and smooth operating; noise will be much lower, this advantage is a huge support for the model running stability.
3. Long life, low maintenance costs
There is no brush, so the main loss of brushless motor is from the bearing, at the mechanical point of view, the brushless motor is an almost none maintenance electric motor, and when necessary, you can only clean some dust.
Workshop
Quality control
QC / Technical Support
The QC department of us is fully equipped with all the necessary testing and inspection facilities. We also have experienced professional inspectors and Engineers guided by an ISO 9001:2000 certified quality management system.
QC Staff
14-20
Materials/Components
Some QC instruments and meters are sourced domestically, and some are imported form the Germany and Japan.
Procedures/testing details
All raw material and components are subject to rigid metallurgical tests and only qualified materials are used.
All components processed in every manufacturing stage are inspected and tested strictly.
100 percent inspection and testing is carried out before packing.
Inspection flow:
1. Packing checking: products quantity, packing method, packing mark, products putting.
2. Appearance checking: Put products at the place of 46cm from eyes, inspect with seeing, feeling plug gauge and graduated scale.
3. Machine performance inspection.
4. Electricity performance inspection.
5. Insides of products inspection.
6. Character and reliability testing: Life testing and Temperature test in operation
Application
lThe application of scope:
Usually used in the equipment with high control requirements and high speed, such as model of aircraft, precision instruments and other device with strict control of the motor speed, so it was only the use of high-end equipment.
Aerospace, aviation, marine, ships, military etc.
Machine tools, machining centre, robots, robotics, artificial limbs etc.
Textile machinery, chemical machinery, petroleum machinery, metallurgical machinery, light machinery, printing, printing machinery, carton packaging machinery, energy, machinery, energy equipment etc.
Medical equipment, communications equipment, electronic manufacturing equipment, radar equipment, satellite ground receiving equipment, semiconductor manufacturing equipment, automatic control equipment, automatic welding equipment, optical manufacturing equipment etc.
Power tools, advanced instruments, measuring instruments, analytical instruments, electrical tools etc.
Electric bicycles, electric scooters, electric scooter, electric golf carts, electric wheelchairs, electric beach car etc.
FAQ
Why choose us
Company view
The patent certificate
Our purpose:
"faith-based science and technology, honesty and trustworthiness, innovation, perfect quality, Customer satisfaction" . We have diversified products to meet the needs of clients.
Welcome to contact us for more information or send us inquiry with details directly.
