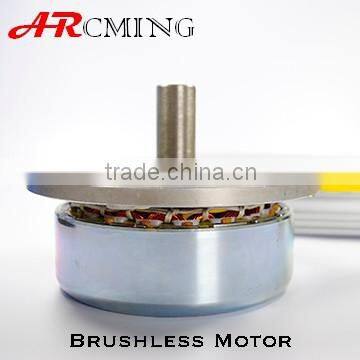

china top ten selling products 12V bldc motor

Specifications

1. Flexible customization capabilities
2. Low noise, smooth operation
3. Long life, low maintenance costs
4. Low interference







Packaging Detail:1. plastic bag+color box+wooden pallets 2.As the dients‘ requirement

Shipping Detail:Shipping by sea, air or express delivery are all available.



Brushless motor range list
Internal Rotor
No.	Stator (mm)	Diameter (mm)	Length (mm)	Shaft (mm)	Rated voltage (V)	Rated power(W)	Rated speed(RPM)	Rated torque(N.m)
1	24	30	35-60	3--5	12VDC-72vdc	2-50	2000-30000	0.1 MAX
2	34	36	35-70	3--5	12VDC-72vdc	3-60	2000-30000	0.2 MAX
3	33	35	35-70	3--5	12VDC-72vdc	3-60	2000-30000	0.5 MAX
4	36	40	35-70	≤7	12VDC-72vdc	3-120	2000-30000	0.5 MAX
5	40	42--55	30--90	≤8	12VDC---540VDC ≤ 380VAC	5--240	100-20000	0.5 MAX
6	44	46--60	30--90	≤8		5--240		0.6 MAX
7	50	55--60	30--100	≤8		5--350		0.8 MAX
8	60	65--75	30--110	≤10		5--400		1 MAX
9	66	70--80	30--110	≤10		5--400		1.5 MAX
10	70x70	@	30--110	≤12		5--400		1.5 MAX
11	82	90--95	35--120	≤17		5--1000		4 MAX
12	85	92--100	35--120	≤17		5--1200		5 MAX
13	88	94--100	35--120	≤17		5--1500		6.5 MAX
14	100	115--120	40--150	≤17		5--3000	50--10000	10 MAX
15	120	140--150	40--180	≤25	24VDC---540VDC ≤ 380VAC	5--4000		15 MAX
16	121.7	140--150	40--180	≤25		5--4000		15 MAX
17	160	170x170	50--240	≤45		5--6000	50--8000	22 MAX
External Rotor
1	55	≥68	≥30	≤12	12VDC---540VDC	0--350	0--10000	2 MAX
2	92	≥106	≥45	≤25		0--2000	0--8000	15 MAX
3	130	≥150	≥50	≤30	24VDC---540VDC	0--4000	0--5000	25 MAX



Brushless DC motor

l  Profile

Brushless DC motors consists of the motor body and controller, is a typical mechatronic products. Because brushless DC motor is running self-controlled, so it does not like synchronous motors under heavy starting with frequency conversion to variable speed, which is added starting additional winding on the rotor, and it will not be out of step and oscillate at the time of mutation load. The permanent magnet of small and medium-capacity brushless DC motor is always more high energy product rare earth neodymium iron boron (Nd-Fe-B) materials. Thus, the volume of rare earth permanent magnet brushless motor is far smaller more than the three-phase asynchronous motor with same capacity.

Brushless DC motor has the DC brush motor characteristics and the frequency change devices, so they are called DC frequency conversion, the international generic term is the BLDC. The operating efficiency, low-speed torque and speed accuracy of brushless DC motor is better than any inverter control technology.



Detail

———————————————————————————

Electrical Performance

Winding Type	Star
Hall Effect Angle	120°
Insulation Class	F
Ambient Temperature Range	-20℃--+50℃
Insulation Resistance	100M ΩMin 500VC DC
Dielectric Strength	700 AC 1minute

Electrical Specifications

Model	ARCM3501
Number of poles	8
Number of phase	3
Nominal voltage VDC	12
Rated speed RPM	1200
Rated torque N-M	3
Rated current Amps	36.5
Rated Output power W	370
Peak torque N-m	7.6
Peak current Amps	50.6
Hall sensors	YES
Controller standard function:braking, speed controlling, over load protection, lack voltage protection, CW&CCW...



DRAWING









The advantage of the brushless motor:

1. Brushless, low interference

Brushless motor eliminates brushes, the most immediate change is that there is no spark generated when the motor is running, thus greatly reducing the spark radio interference.

2. Low noise, smooth operation

Brushless motor has no a brush, the friction is greatly reduced in running, and smooth operating; noise will be much lower, this advantage is a huge support for the model running stability.

3. Long life, low maintenance costs

There is no brush, so the main loss of brushless motor is from the bearing, at the mechanical point of view, the brushless motor is an almost none maintenance electric motor, and when necessary, you can only clean some dust.





Features of our products:





1, widely power range: Our Company can provide 5W - 200KW brushless DC motor,



2, the unique non-magnet technology: the above 5KW power motors are applied the International leading of non-magnet technology to solve the electromagnetic eddy problems in high-power motor, reducing the motor heat and energy consumption, efficiency is improved 30 %.



3, cost advantage



4, powerful development capabilities: we have fifteen years of experience in R&D and production of brushless motor, with profound technical background, As the partner of Beijing Tsinghua University and Shanghai Tongji University with the project of new energy sources development, we have been widely trusted by high-end customers at home and abroad.



5, flexible customization capabilities



6, the highest sealing rating: IP67





Workshop



Quality control



QC / Technical Support
The QC department of us is fully equipped with all the necessary testing and inspection facilities. We also have experienced professional inspectors and Engineers guided by an ISO 9001:2000 certified quality management system.
QC Staff
14-20
Materials/Components
Some QC instruments and meters are sourced domestically, and some are imported form the Germany and Japan.
Procedures/testing details
All raw material and components are subject to rigid metallurgical tests and only qualified materials are used.
All components processed in every manufacturing stage are inspected and tested strictly.
100 percent inspection and testing is carried out before packing.
Inspection flow:
1. Packing checking: products quantity, packing method, packing mark, products putting.
2. Appearance checking: Put products at the place of 46cm from eyes, inspect with seeing, feeling plug gauge and graduated scale.
3. Machine performance inspection.
4. Electricity performance inspection.
5. Insides of products inspection.
6. Character and reliability testing: Life testing and Temperature test in operation



Application



lThe application of scope:

Usually used in the equipment with high control requirements and high speed, such as model of aircraft, precision instruments and other device with strict control of the motor speed, so it was only the use of high-end equipment.



Aerospace, aviation, marine, ships, military etc.
Machine tools, machining centre, robots, robotics, artificial limbs etc.
Textile machinery, chemical machinery, petroleum machinery, metallurgical machinery, light machinery, printing, printing machinery, carton packaging machinery, energy, machinery, energy equipment etc.
Medical equipment, communications equipment, electronic manufacturing equipment, radar equipment, satellite ground receiving equipment, semiconductor manufacturing equipment, automatic control equipment, automatic welding equipment, optical manufacturing equipment etc.
Power tools, advanced instruments, measuring instruments, analytical instruments, electrical tools etc.
Electric bicycles, electric scooters, electric scooter, electric golf carts, electric wheelchairs, electric beach car etc.





FAQ



Q:Do you accept ODM and OEM orders ?



Yes, Our R&D department is devoted to developing and designing the most optimized products according to every customer's requirements and applications. We create optimized computerized designs of new products, especially customized motors and harmonic drives. Then we supply a prototype as per approved design for your final approval. Mass production will be  carried out after your final approval. Necessary improvements will be made according to your feedback.



Q:What is the normal delivery time ?



Lead time of samples is about 15-30days, and lead time of batch order is about 25-            35days, this is based on the order quantity details and the detailed requirement of product.



Q:Could you manufacture products as per customers' specification ?



Yes, we are in the position of accept the orders based on customers' specification and samples. In the fact,most of our products are all the customized ones according to clients' requirements and work conditions. We have wide range of motor sizes and performance in manufacture, it is no problem to meet your special shaft sizes and installation dimensions. And if our existing physical sizes of motors are not suitable for your usage, then the new mold can be opened for you, and the electric performance is flexible to be changed according to requirements of application.



Q:Can we test the sample before batch orders ?



Yes, After confirming the specification, samples are available for your testing.



Q:What is the condition of products warranty ?



One year quality warranty for our all products.



Q:What is certification status?



ISO9000



Q:What is your overall customer PPM ?



3‰  in 2013 year,Target 2‰ in 2014 year,



Q:What level of finished goods does you target?



At least to meet the request of customer and satisfy customer.





Why choose us





1, The rich professional experience on this industry.

The main Engineers team has more than 10 years of R&D experience, extensively dealed with the production of various types of products for all kinds of industry. We can  cooperate with the customers in product development, and offer more professional advice to the customer in the product matching and design.



Because the BLDC motors and harmonic drives are newly developing lines, we can help customers to choose the most suitable products for the practical application and avoid the potential risk maximally.



2, The plentiful and complete professional products.

We have been opened out various specifications of BLDC motor and Harmonic drives, the diameter sizes of BLDC motors cover 15mm to 255mm, they can flexibly match different customized installation size and diverse performance requirements.





3, The economical manufacture cost.

A, we can save much R&D and mold cost for customers because of our existing plentiful and complete products developed.

B, Most products are customized ones to be lower operating costs

C, Precise design and manufacture process reduce loss

D, The strict management of quality control brings low PPM, it is only about 0.025-0.035%.



4, The service of ODM and OEM.

Our R&D team has been obtained rich achievement and offer the optimization design and development of the products based on customers' requirement and application. As the partner of Beijing Tsinghua University and Shanghai Tongji University with the project of new energy sources development, have been widely recognized by high-end customers at home and abroad.



5, The technical sales team.

My company composed one exclusive sales team that consisted of professional and technical personnel, it can achieved  communication with customers with high efficiency, short the communication time, improve the quality of communication, can be closer to provide pre-sale, sale and after sale service.
