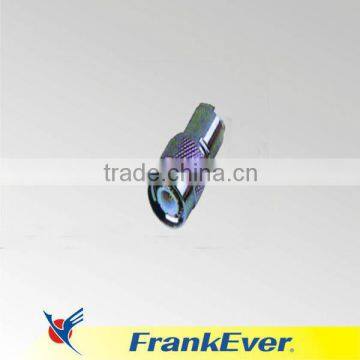

FRANKEVER Excellent ODM ODM TNC MALE PANEL

Name: FRANKEVER Excellent ODM ODM TNC MALE PANEL
Brand: FRANKEVER
SKU: 113827233

US$ 0.025 - 0.03 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

FRANKEVER

Model Number:

FK7003

Hangzhou Frankever Imp. & Exp. Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai and ningbo for TNC MALE PANEL

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name FRANKEVER

Model Number FK7003

Type TNC

Application Other, Audio & Video

Gender Male

Specifications

Excellent ODM ODM TNC MALE PANEL
1. Good performance
2. Easy installation
3. RoHS compliance

Product Description

FRANKEVER Excellent ODM ODM TNC MALE PANEL

Electronical Specifications

Impedance	50Ω	75Ω
Frequency Range	0-11 GHz	0-2 GHz
Working Voltage	500 VRMS max. at sea level	500 VRMS max. at sea level
Dielectric Withstanding Voltage	1500 VRMS min. at sea level	1500 VRMS min. at sea level
VSWR	Straight: 1.3 max., R/A: 1.5 max.	Straight: 1.3 max., R/A: 1.5 max.
Contact Resistance	Center Contact: 3 milliohm Max.	Center Contact: 3 milliohm Max.
Contact Resistance	Outer Contact: 2 milliohm Max.	Outer Contact: 2 milliohm Max.
Insulator Resistance	5000 megaohms min.	5000 megaohms min.

Material Specifications

Parts Name		Material	Finish
Center Contact	Male	Brass	3u" Gold or Silver per requirement
Center Contact	Female	BeCu or P. Bronze	3u" Gold or Silver per requirement
Body, Metal Parts		Brass	Nickel
Insulators		PTFE, Delrin, PBT	None
Clamp Gaskets		Silicone rubber	None
Crimp Ferrules		Annealed copper	Nickle or Silver per requirement
