Plus Shank SDS Hammer Drill Bits Sand Blasted

Plus Shank SDS Hammer Drill Bits Sand Blasted thumbnail-1
Plus Shank SDS Hammer Drill Bits Sand Blasted photo-1
US$ 1.52 - 71.88 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
boyu
Type:
Indexable Drill Bit
Contact Supplier Request Quote Chat Now
Danyang Boyu Tools Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name boyu
Type Indexable Drill Bit
Material Tungsten Carbide
Use Masonry Drilling

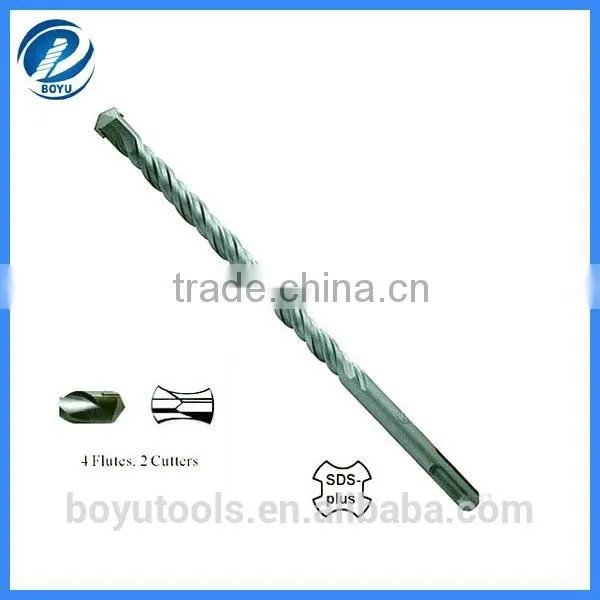

Plus shank SDS hammer drill bits sand blasted

1.The following electric hammer drill bit are machined from chrome steel fitted with carbide insert brazed at a very high temperature to withstandard severe heating when drilling hard mateials.

2.For drilling on granite,concrete,stone,masonry,tiles and marble

3.Φ10.0-45.0mm,Overall length:110-1000mm

4.Fit hammer drills with SDS-MAX chucking,It can be used with BOSCH GBH 5/40 FCE GBH 8/65 DCE.



Plus shank SDS hammer drill bits sand blasted



Drill Working Total Drill Working Total
Diameter Length Length Diameter Length Length
(mm) (mm) (mm) (mm) (mm) (mm)
4 50 110 10 150 210
4 100 160 10 200 260
5 50 110 10 250 310
5 100 160 10 290 350
5 150 210 10 340 400
5.5 50 110 10 400 460
5.5 100 160 10 440 500
5.5 150 210 10 540 600
6 50 110 10 740 800
6 100 160 10 940 1000
6 150 210 12 50 110
6 200 260 12 100 160
6 250 310 12 150 210
6 290 350 12 200 260
7 50 110 12 250 310
7 100 160 12 300 350
7 150 210 12 350 400
8 50 110 12 410 460
8 100 160 12 450 500
8 150 210 12 550 600
8 200 260 12 750 800
8 250 310 12 950 1000
8 290 350 14 60 110
8 340 400 14 110 160
8 400 460 14 160 210
8 440 500 14 210 260
8 540 600 14 260 310
8 740 800 14 300 350
10 50 110 14 350 400
10 100 160 14 410 460
      14 450 500
      14 550 600
      14 750 800



Drill Working Total Drill Working Total
Diameter Length Length Diameter Length Length
(mm) (mm) (mm) (mm) (mm) (mm)
14 940 1000 22 150 210
16 100 160 22 200 260
16 150 210 22 250 310
16 200 260 22 290 350
16 250 310 22 340 400
16 290 350 22 400 460
16 340 400 22 440 500
16 400 460 22 540 600
16 440 500 22 740 800
16 540 600 22 940 1000
16 740 800 24 150 210
16 940 1000 24 200 260
18 150 210 24 250 310
18 200 260 24 290 350
18 250 310 24 340 400
18 290 350 24 400 460
18 340 400 24 440 500
18 400 460 24 540 600
18 440 500 24 740 800
18 540 600 24 940 1000
18 740 800 25 150 210
18 940 1000 25 200 260
20 150 210 25 250 310
20 200 260 25 290 350
20 250 310 25 340 400
20 290 350 25 400 460
20 340 400 25 440 500
20 400 460 25 540 600
20 440 500 25 740 800
20 540 600 25 940 1000
20 740 800
20 940 1000

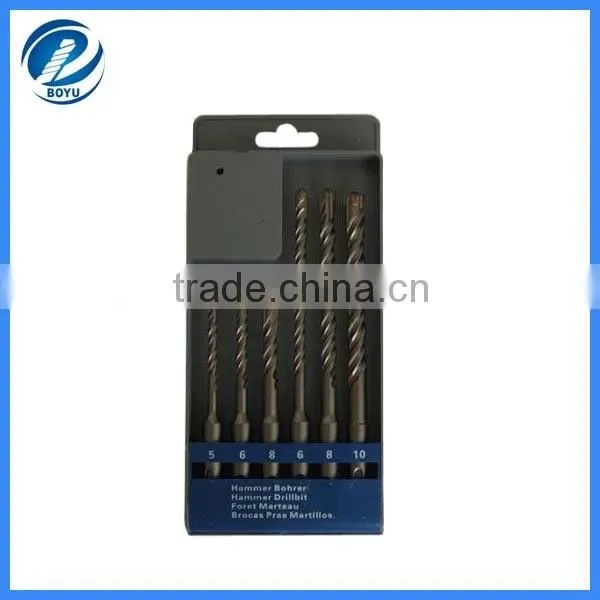

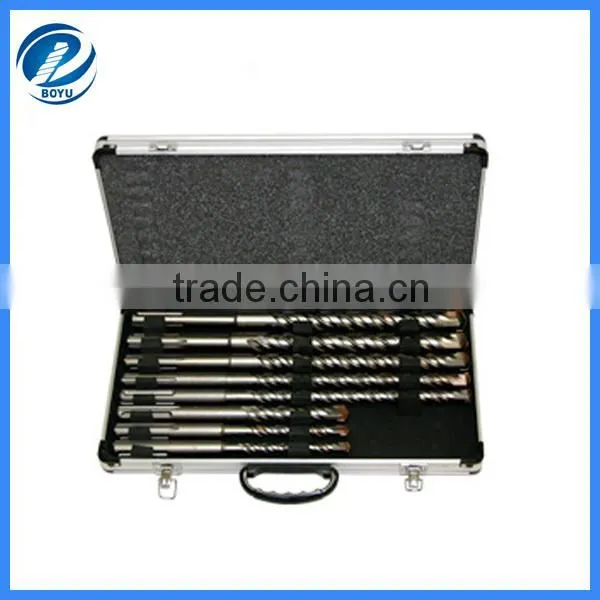

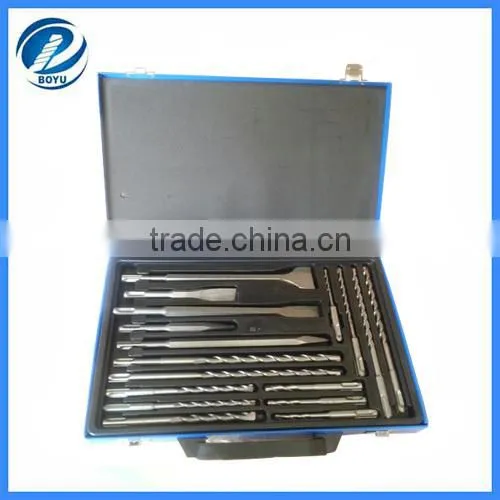

Combination SDS Hammer Drill Set We Have:

Plus shank SDS hammer drill bits sand blasted



Plus shank SDS hammer drill bits sand blasted



Plus shank SDS hammer drill bits sand blasted



Plus shank SDS hammer drill bits sand blasted



 Plus shank SDS hammer drill bits sand blasted



Plus shank SDS hammer drill bits sand blasted
