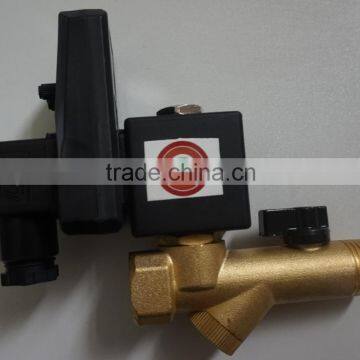

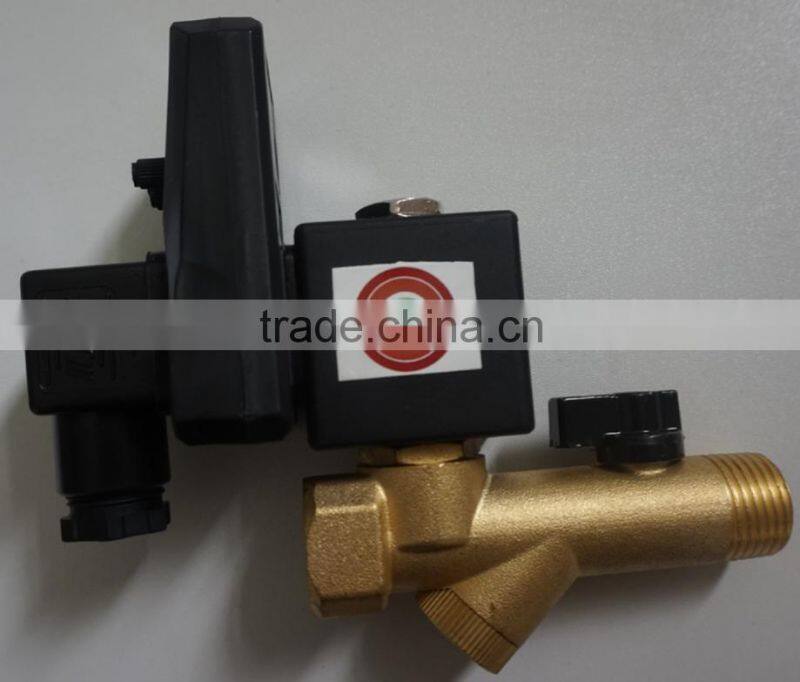

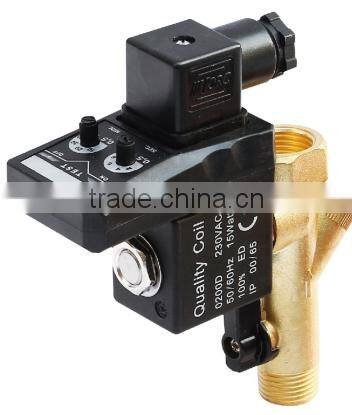

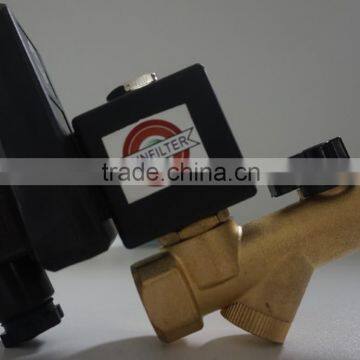

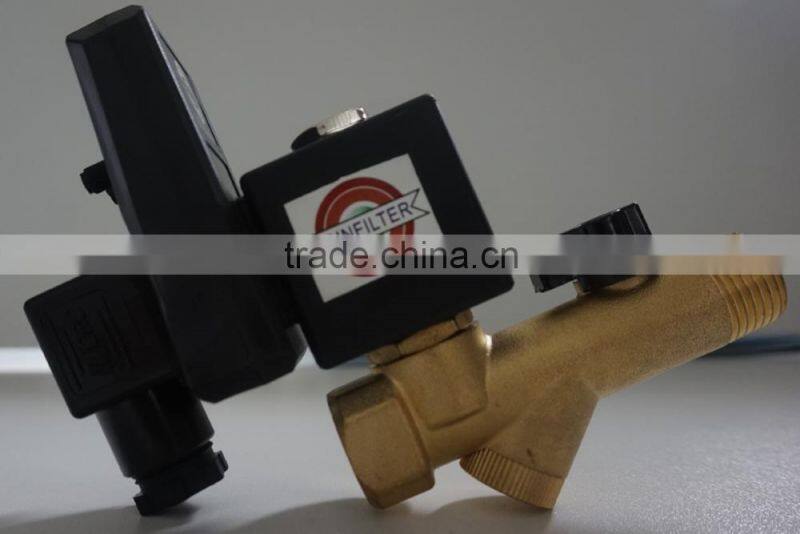

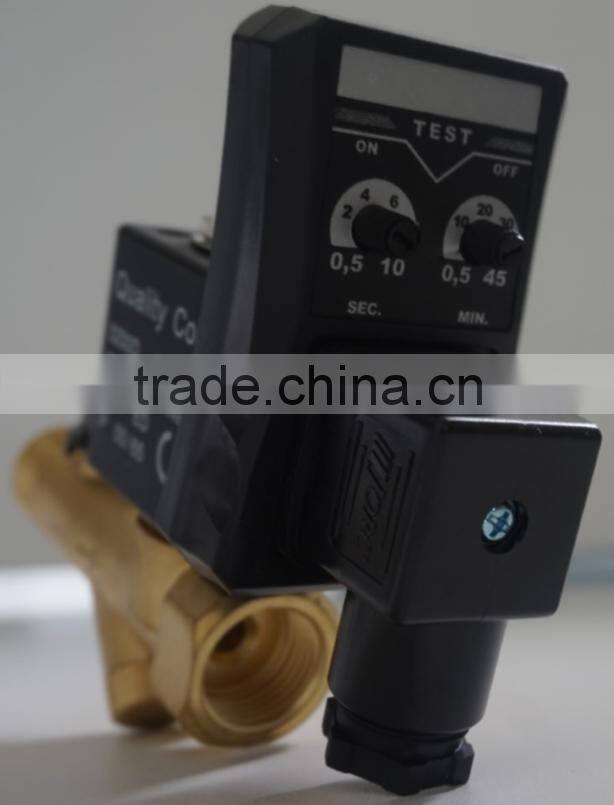

Electronic condensate auto drain for air compressor and air filter
The SRPT-16B series electronic-drain valve is made of solid state electronic time
setting and solenoid valve, which can make the compressor condensates water drain automatically. It is widely used in filter drier, oil/water segregator, refrigerant compressed air drying machine, drying machine, air compressor dripfeet, and so on. The time of drain and interval can be adjusted according to different needs.
Know More of Electronic Auto Drain Solenoid Valve
Technical Parameter for | Timer |
OFF | 0.5--45minutes |
ON | 0.5--10seconds |
Voltage | 24-240V AC/DC 50/60HZ |
Power Consumption | 22VA |
Ambient Temperature | -10--+60°c |
Insulation Class | IP65 |
Plastic Material | Fire resistance ABS |
Connecting Type | DIN43650A |
LED | Shining means with electricity |
Technical Parameter for | Electronic auto drain solenoid valve |
Type | 2/2Way, Direct Acting |
Port Size | G1/2" |
Working Pressure | 0--16Bar |
Medium Temperature | <80°c |
Nominal Diameter | 3mm |
Valve Body Material | Brass |
Insulation Class | H |
Protecting Class | IP65 |
Voltage Tolerance | ±10% |
Shanghai Sunfilter Industry.Co.,Ltd.is a manufacturing company which is specialized in Air Compressor and compressed air drying and purification equipment who's research,manufactory,sales and service.
the leading product is Combined air compressor, Refrigerated Air Dryer ,Desiccant Air Dryer ,Compressed Air Filter. we have the CE certification and could provide the ASME code dryer for customer.
Sunfilter has been seeking excellence all the time . the company ushers in the Denmark France Japanese ect. Nations system cold and advanced technique,equipments and the original machine pieces,meanwhile taking the advanced designing concept and exquisite Production Process,following the ISO9001 quantity management system completely.
we have been improving quality by good management,seeking development by innovation ,casting the brand in good faith,expanding the market in a win-win situtaion,our products not only throughout the country,but also export to Australia ,South America ,South America, Southeast Asia, Middle East, Europe and more than 30 Countries.
1. Are you manufacturer or Trade Company?
We are professional compressed air purifing and drying system factory, founded in 2005.
2. What's the order process?
a. Inquiry---provide us all clear requirements.
b. Quotation---official quotation form with all clear specifications.
c. Printing file--- PDF, Ai, CDR, PSD, the picture resolution must be at least 300 dpi.
d. Sample confirmation---digital sample, blank sample without printing or hardcopy.
e. Payment terms--- T/T 30% in advanced, balanced before shipment.
f. Production---mass production
g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
3. What terms of payment you use?
T/T, L/C
