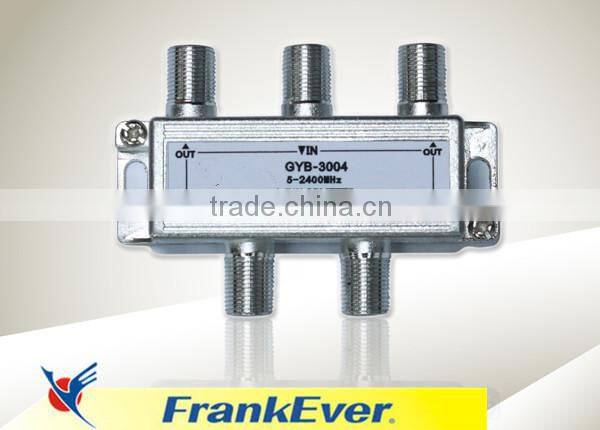

FrankEver GYB-3004 SATV Splitter 4-Way
FrankEver GYB-3004 SATV Splitter 4-Way
Product Description:
Description of the splitter:
Zinc die-cast housing, tin-plated
Simple installation and built-in two grounding blocks
Micro-strip circuit design and perfect performance index
Designed for SATV/CATV
Power passing-24V 0.5A(MAX. )
All ports of the splitter are F-(f)connector, 75 Ohm
Zinc die-cast housing, tin-plated
Simple installation and built-in two grounding blocks
Micro-strip circuit design and perfect performance index
Designed for SATV/CATV
Power passing-24V 0.5A(MAX. )
All ports of the splitter are F-(f)connector, 75 Ohm
Technique parameter:
| Model | 2-way splitter | 3-way splitter | 4-way splitter | 6-way splitter | 8-way splitter | |
| Item | Frequency | Typical | Typical | Typical | Typical | Typical |
| INSERTION LOSS (IN-OUT) (dB) | 5-40MHz | ≤ 4.0 | ≤ 7.0 | ≤ 8.0 | ≤ 11.5 | ≤ 12.0 |
| 40-1000MHz | ≤ 4.5 | ≤ 7.5 | ≤ 8.5 | ≤ 12.0 | ≤ 12.5 | |
| 1000-1750MHz | ≤ 5.0 | ≤ 9.5 | ≤ 10.0 | ≤ 13.5 | ≤ 14.5 | |
| 1750-2400MHz | ≤ 6.0 | ≤ 11.2 | ≤ 11.5 | ≤ 16.5 | ≤ 17.0 | |
| ISOLATION LOSS (OUT-OUT) (dB) | 5-40MHz | ≥ 20.0 | ≥ 22.0 | ≥ 22.0 | ≥ 22.0 | ≥ 25.0 |
| 40-1000MHz | ≥ 24.0 | ≥ 22.0 | ≥ 22.0 | ≥ 22.0 | ≥ 25.0 | |
| 1000-1750MHz | ≥ 24.0 | ≥ 22.0 | ≥ 22.0 | ≥ 22.0 | ≥ 22.0 | |
| 1750-2400MHz | ≥ 22.0 | ≥ 22.0 | ≥ 22.0 | ≥ 22.0 | ≥ 22.0 | |
| RETURN LOSS (IN. OUT) (dB) | 5-40MHz | ≥ 10.0 | ≥ 9.0 | ≥ 11.0 | ≥ 10.0 | ≥ 10.0 |
| 40-1000MHz | ≥ 12.0 | ≥ 12.0 | ≥ 12.0 | ≥ 12.0 | ≥ 12.0 | |
| 1000-1750MHz | ≥ 12.0 | ≥ 12.0 | ≥ 12.0 | ≥ 12.0 | ≥ 12.0 | |
| 1750-2400MHz | ≥ 12.0 | ≥ 12.0 | ≥ 12.0 | ≥ 12.0 | ≥ 12.0 |
