Product Details
| Place of Origin | Shanghai, China | Brand Name | SUNFILTER | |
| Model Number | SHAD-24HTF | Type | Air Dryer |
Product Description
Environment Friendly refrigerated compressed air dryers refrigerated compressed air dryers made in China
The advantages of Sunfilter’s refrigerated air dryer:
1.Low pressure dew point 3~5℃;
2.Stainless steel air pipe and exchanger;
3.Low noise and low vibration;
4.Reliable,energy-saving,fully hermetic compressors use environmentally friendly R134A refrigerant.
5.Small size takes up less of this machine.
6.There are more than 10 years of experience in OEM and ODM factory.
Technical Specification of Red SHAD Series Dryer
Model | Capacity | Nominal Power | Power Supply | Air Connections | Dimensions(mm) | Weight | ||
Nm3/min | Kw | V/Ph/Hz | L | W | H | kg | ||
SHAD-06HTF | 0.6 | 0.21 | 220/1/50 | Rc1/2" | 500 | 300 | 500 | 24 |
SHAD-14HTF | 1.4 | 0.25 | 220/1/50 | Rc1/2" | 500 | 300 | 500 | 30 |
SHAD-18HTF | 1.8 | 0.45 | 220/1/50 | Rc3/4" | 520 | 440 | 780 | 32 |
SHAD-24HTF | 2.4 | 0.6 | 220/1/50 | Rc3/4" | 520 | 440 | 780 | 36 |
SHAD-38HTF | 3.8 | 0.64 | 220/1/50 | Rc1" | 570 | 440 | 805 | 50 |
SHAD-65HTF | 6.5 | 1.4 | 220/1/50 | Rc1.5" | 620 | 490 | 820 | 78 |
SHAD-80HTF | 8.5 | 1.7 | 220/1/50 | Rc1.5" | 620 | 490 | 820 | 84 |
SHAD-107HTF | 10.7 | 2.3 | 380/3/50 | Rc2" | 800 | 550 | 900 | 130 |
SHAD-135HTF | 13.5 | 2.5 | 380/3/50 | Rc2" | 800 | 550 | 900 | 142 |
SHAD-180HTF | 18 | 3 | 380/3/50 | Rc2" | 1020 | 600 | 980 | 160 |
SHAD-250HTF | 25 | 4 | 380/3/50 | Rc2.5" | 1020 | 600 | 980 | 200 |
The technical data of the 2.4m3/min SHAD refirgerated air dryer
Item | Description |
Model | SHAD-24HTF |
Air Flow capacity | 2.4 m³/min (85cfm) |
Working pressure | ≤1.6Mpa(16bar or 232psi) |
Air connections | Rc3/4” |
Max.inlet temperature | 65℃ |
Max.Ambient temperature | 50℃ |
Min.Ambient temperature | 5℃ |
Cooling type | Air-cooling |
Refrigerant | R134a |
Pressure dew point | 3~5℃ |
Nominal Power | 0.6KW |
Voltage | 220V/1PH/50HZ |
Weight | 36 KG |
Dimension(L*W*H) | 520*440*780MM |

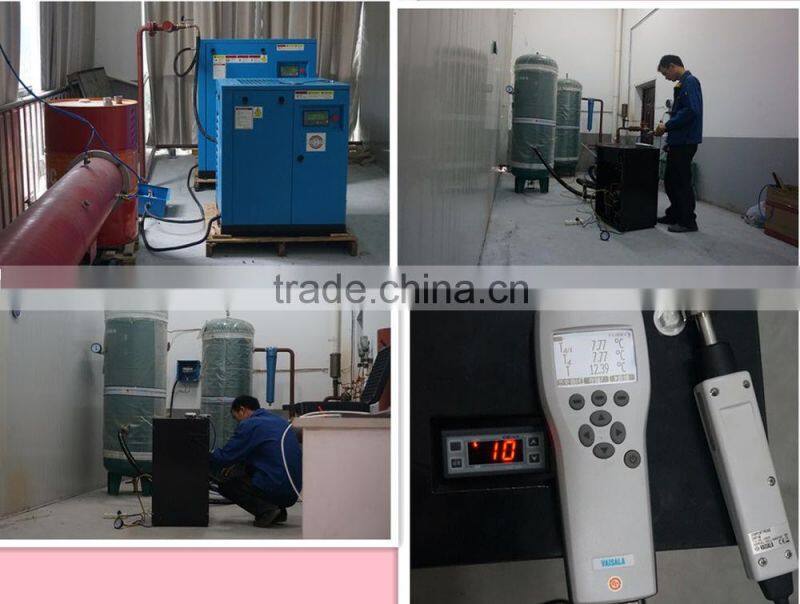

Product Testing:

Shanghai Sunfilter Industry.Co.,Ltd.is a manufacturing company which is specialized in compressed air drying and purification equipment who's research,manufactory,sales and service.
The leading product is refrigerated air dryer,desiccant air dryer,compressed air filter,modular regenerative adsorption compressed air dryer,water chiller.we have the CE certification and could provide the ASME code dryer for customer.
Sunfilter has been seeking excellence all the time.the company ushers in the Denmark France Japanese ect. Nations system cold and advanced technique,equipments and the original machine pieces,meanwhile taking the advanced designing concept and exquisite Production Process,following the ISO9001 quantity management system completely.
We have been improving quality by good management,seeking development by innovation ,casting the brand in good faith,expanding the market in a win-win situtaion,our products not only throughout the country,but also export to Australia ,South America ,South America, Southeast Asia, Middle East, Europe and more than 30 Countries.
Whether pre-sale, in sale, after-sale, as long as the user needs the help of equipment and technical advice, our company will provide the technical information within 24 hours for free, debugging boot on spot. Having finished the debug, our engineers are responsible for the operation training for the user's staff, receiving user equipment faiure notification.
1. Are you manufacturer or Trade Company?
We are professional compressed air purifing and drying system factory, founded in 2005.
2. What's the order process?
a. Inquiry---provide us all clear requirements.
b. Quotation---official quotation form with all clear specifications.
c. Printing file--- PDF, Ai, CDR, PSD, the picture resolution must be at least 300 dpi.
d. Sample confirmation---digital sample, blank sample without printing or hardcopy.
e. Payment terms--- T/T 30% in advanced, balanced before shipment.
f. Production---mass production
g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
3. What terms of payment you use?
T/T, L/C
