26~30 Core FRP FTTH Drop Optic Fiber Cable Indoor Fiber Optic Cable
US$ 0.1 - 100
MOQ: 6 Kilometers
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
FRANKEVER
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
20~24 Core GYFTC8Y Aerial Fiber Optic Cable/self-support Optical Fiber Cable/manufatory Fiber Optic CableUS$ 0.1 - 100MOQ: 6 Kilometers -
14~18 Core GYFTC8Y Aerial Optical Fiber Cable/self-support Optical Fiber Cable/manufacture Fiber Optical CableUS$ 0.1 - 100MOQ: 6 Kilometers
-
8~12 Core GYFTC8Y Aerial Self-support Optical Fiber CableUS$ 0.1 - 100MOQ: 6 Kilometers
-
74-96 Core GYTY Stranded Loose Tube Armored Optical Fiber CableUS$ 0.1 - 100MOQ: 6 Kilometers
-
62-72 Core GYTY Stranded Loose Tube Armored Optical Fiber CableUS$ 0.1 - 100MOQ: 6 Kilometers
Place of Origin
Zhejiang, China
Brand Name
FRANKEVER
Product Description

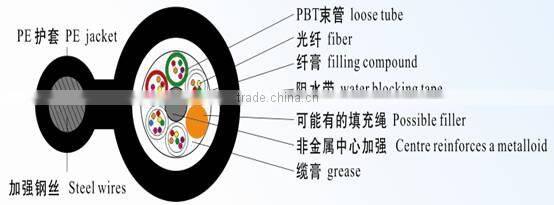

high quality 26~30 Core optical fiber cable
| Messenger Wire | ||||||
| > Self-supporting,easily to install | ||||||
| Medium Density Polythylene Jacket | ||||||
| >low friction installation | ||||||
| >Excellent protection from enviromental hazards | ||||||
| Sheath Markings | ||||||
| >provide positive indentification and length verification | ||||||
| >Custome print avaiable | ||||||
| >optional embedded stripe available for additional cable indentification | ||||||
| Cable watertight method | ||||||
| > All free cable core provide Anti-electromagnetism abality | ||||||
| > Loose tube filling compound | ||||||
| > Water Blocking tape enhacing moisture-proof | ||||||
| > 100%cable core filling | ||||||
| Bend Radius | ||||||
| Dynamic | 20*Cable OD | |||||
| Static | 10*Cable OD | |||||
| Tensile Rating | N ( A pictuer ) | |||||
| long term | MRCL*50% | |||||
| short term | MRCL | |||||
| Crush Resistance | N/100MM | |||||
| Short Term/ Long term | 1000/300 | |||||
| Temprature Ratings | °C | °F | ||||
| Operation | -40 to + 60 | -40 to + 158 | ||||
| Installation | -30 to + 50 | -22 to + 140 | ||||
| Storage/Shipping | -50 to + 70 | -40 to + 167 | ||||
| NOMINAL DESINGN PARAMETERS | ||||||
| Part NO: Increased by 2 fiber | Fiber Count | Tubes | Fillers | Cable OD (mm) | Cable Weight(kg/km) | |
| GYFTC8Y-2~6 | 2~6 | 1 | 4 | 9.5*19.1 | 159 | |
| GYFTC8Y-8~12 | 8~12 | 2 | 3 | 9.5*19.2 | 159 | |
| GYFTC8Y-14~18 | 14~18 | 3 | 2 | 9.5*19.3 | 159 | |
| GYFTC8Y-20~24 | 20~24 | 4 | 1 | 9.5*19.4 | 159 | |
| GYFTC8Y-26~30 | 26~30 | 5 | 0 | 9.5*19.5 | 159 | |
| GYFTC8Y-32~36 | 32~36 | 6 | 0 | 10.1*19.7 | 170 | |
| GYFTC8Y-38~48 | 38~48 | 4 | 1 | 10.8*20.4 | 179 | |
| GYFTC8Y-50~60 | 50~60 | 5 | 0 | 10.8*20.4 | 179 | |
| GYFTC8Y-62~72 | 62~72 | 6 | 0 | 11.6*21.2 | 195 | |
| GYFTC8Y-74~84 | 74~84 | 7 | 1 | 12.4*22.0 | 208 | |
| GYFTC8Y-86~96 | 86~96 | 8 | 0 | 13.1*22.7 | 222 | |
| GYFTC8Y-98~108 | 98~108 | 9 | 1 | 13.9*23.5 | 238 | |
| GYFTC8Y-110~120 | 110~120 | 10 | 0 | 14.7*24.3 | 255 | |
| GYFTC8Y-122~132 | 122~132 | 11 | 1 | 15.5*25.1 | 273 | |
| GYFTC8Y-134~144 | 134~144 | 12 | 0 | 16.2*25.8 | 290 | |
| ORDERING INFORMATION | ||||||
| Select the fiber account according to your project | ||||||
| Select the fiber type in the following table | ||||||
| G652D | G655 | 50/125um | 62.5/125um | |||
| Attenuation | 850nm | < 3.0dB/KM | < 3.0dB/KM | |||
| 1300nm | < 1.0dB/KM | < 1.0dB/KM | ||||
| 1310nm | < 0.36dB/KM | < 0.40dB/KM | ||||
| 1550nm | < 0.22dB/KM | < 0.23dB/KM | ||||
| Bandwith (class A ) | ||||||
| No : Aperture | 0.2000 | 0.275 | ||||
| Cable Cut-off Wavelength CC | < 1260NM | < 1450NM | ||||
Packaging & Shipping
Wooden drum
