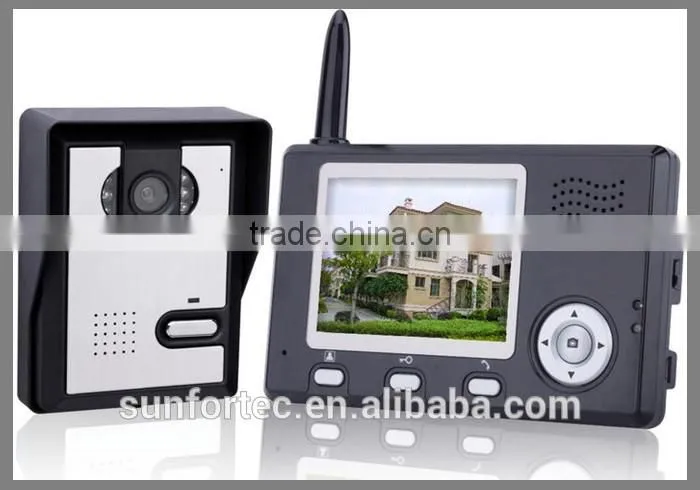

Wide angle lowest price long range wireless calling system

What is the functions of our long range wireless calling system?

 (1) 2.4GHz digital frequency hopping and encryption technology, transmission distance up to 200 meters in free field, robust anti-interference

(2) Clear night vision can capture image in low-illumination environment

(3) Rain shield for the outdoor camera is available

(4) 3.5 or 7 inch TFT color panel for indoor monitor

(5) Surveillance, unlock, hands-free call and talk

(6) 16 chord melodies and melody volume is adjustable

(7) Brightness and talk volume are adjustable

(8) Date (only one camera with one monitor system) and time shown on the screen

(9) Indoor monitor could take pictures automatically or by instruction. It could store up to 100 pictures with date and time

(10) BL-5J battery of camera and monitor is replaceable and rechargeable

(11) Outdoor camera works about 30 days if with battery. It works all the while if connected with the 2w solar module. Or it works all the while if power adapter is connected.

(12) Wireless unlock control supports power on and power off unlock

(13) One outdoor camera supports up to 4 indoor monitors and vice versa

long range wireless calling system Specifications

wireless calling system features

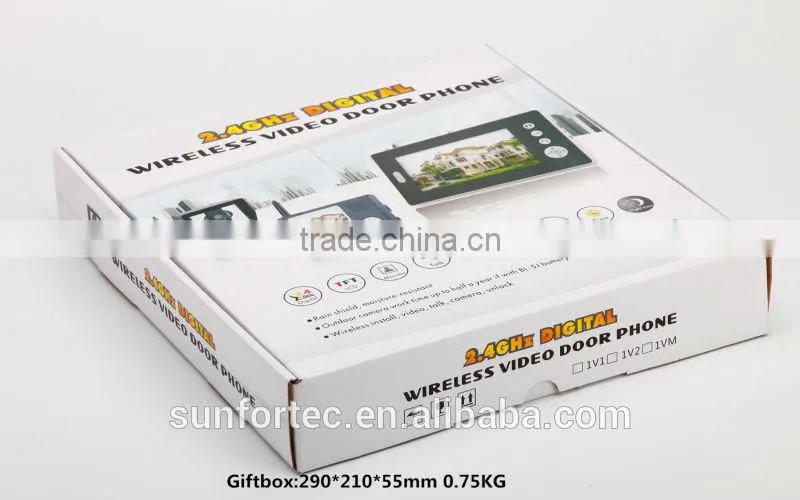

long range wireless calling system packing list

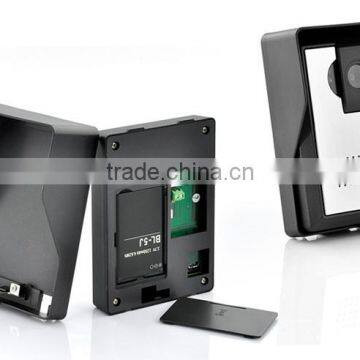

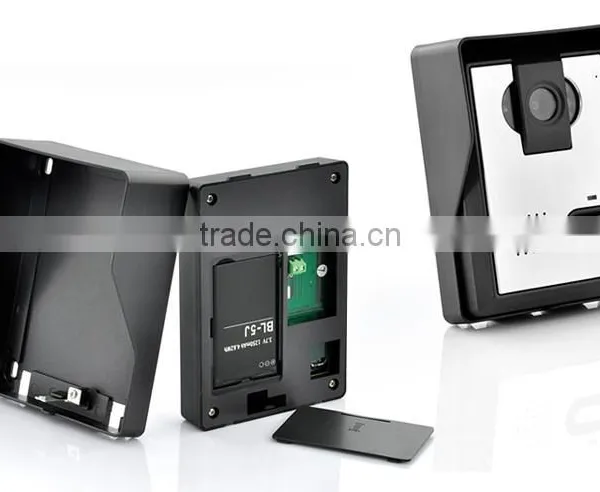

Outdoor camera part

(1) Outdoor camera  (2) Power adapter Input: 100-240V 50/60Hz Output: 5V/1A

(3) double-sided tape (4) Wireless unlock control (5) Screws and stoppers           (6) DC cable

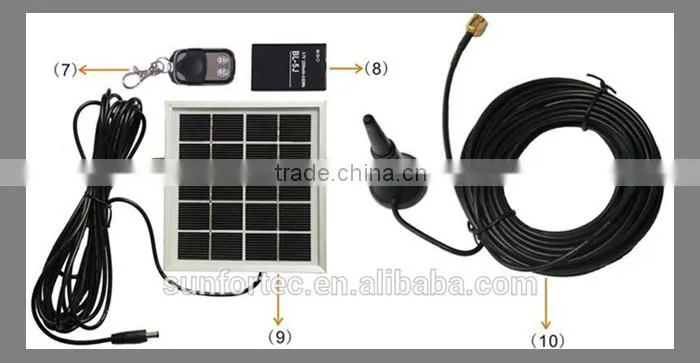

(7) BL-5J battery (optional)   (8) Remote control (optional)

(9) Sloar moudle charger (optional) (10) 6meters or 10meters antenna

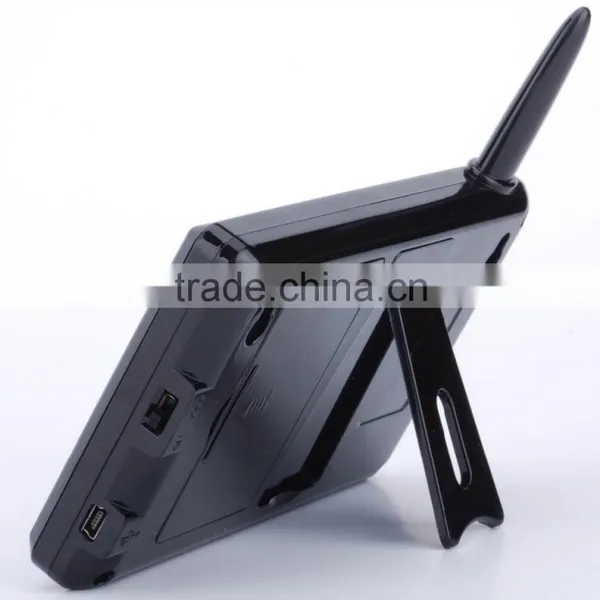

Indoor monitor part

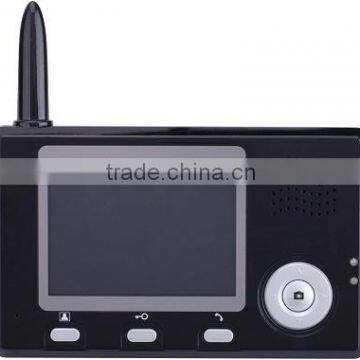

(11)  3.5”  indoor monitor  (12)  BL-5J battery  (13)USB  cable

(14)  USB power adapter; Input: 100-240V 50/60Hz Output: 5V/1A

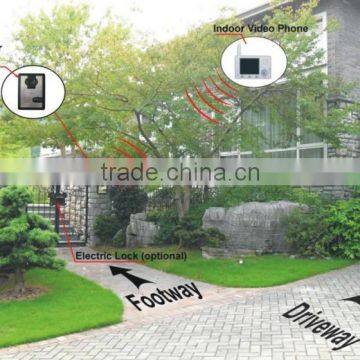

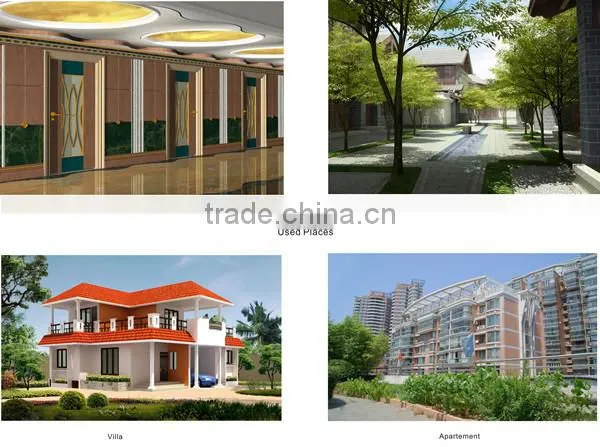

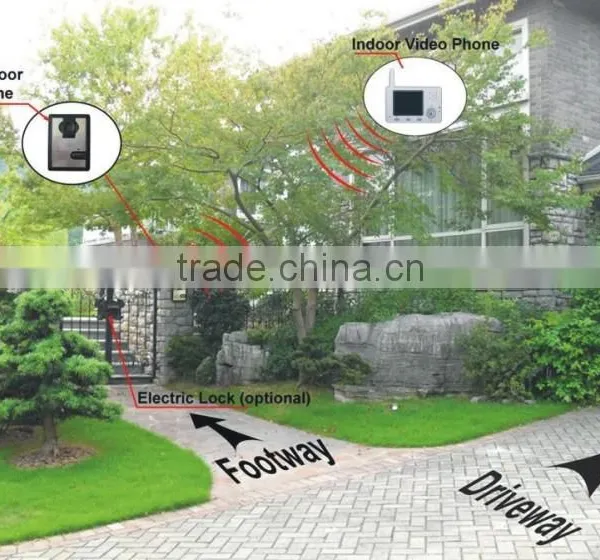

Where to use our long range wireless calling system?

How to install our long range wireless calling system?

The outdoor camera should be installed at the shielded position to be free from direct shinning of strong light or raining. The height for installation is recommended to be 1.5~1.7m for outdoor camera to focus on the best monitoring range.  Wireless signal will be weakened if there are obstacles between the outdoor camera and the indoor monitor. Please check the best sign of monitor when install the outdoor camera to get the best position.

If wiring needs to go through wall, the plug should be firstly wrapped with tape so as to avoid the sand or dirt going into the plug thus resulting in malfunction.

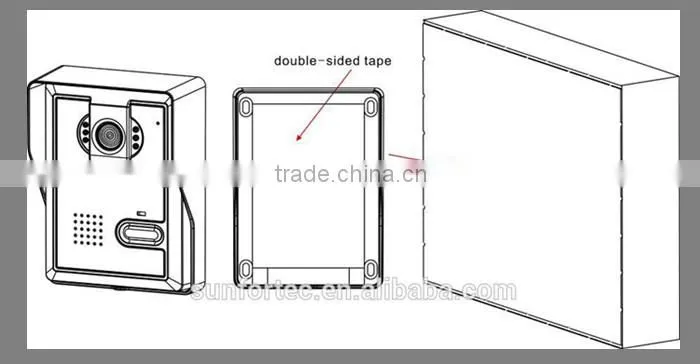

Use double-sided tape fix camera on the wall or door as the following diagram.

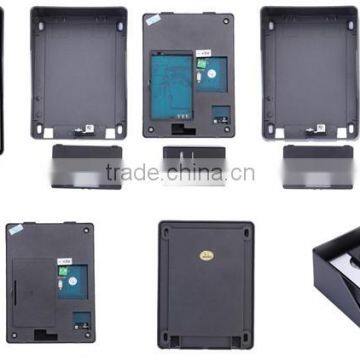

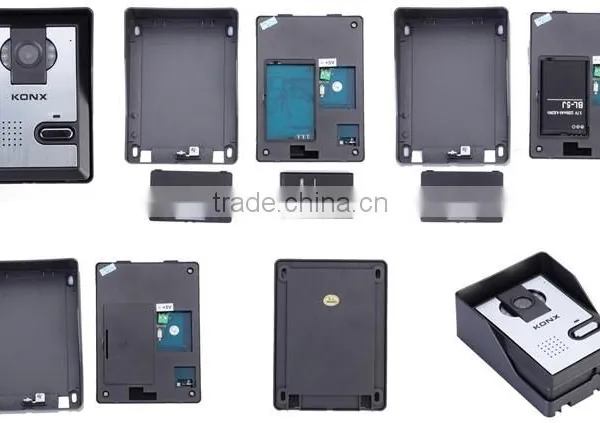

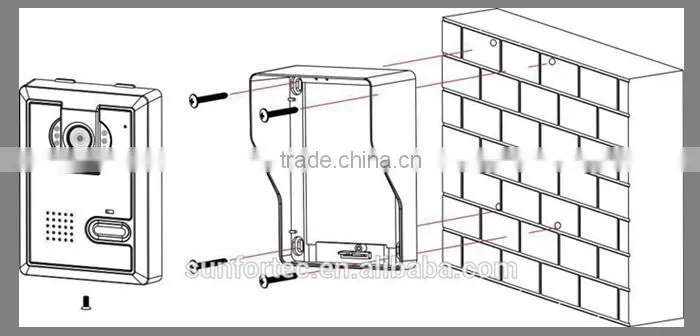

Take off the screw on the bottom, remove the back box fit on the wall, embed the camera to the back box and use screws to fix as the following diagram.

long range wireless calling system Shipping information

Based on the customer’s demands to choose the most economical shipping terms.Suggest, for sample order ship byExpress, for mass order shipping by Air Cargo or By Sea.

We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS.

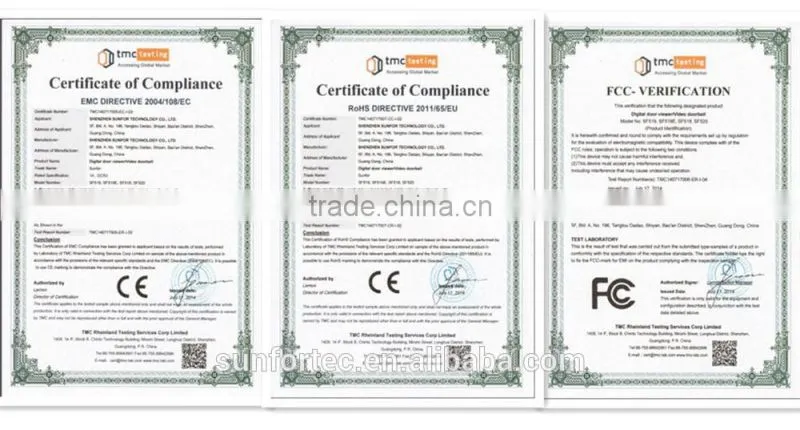

long range wireless calling system Certification

We are 100% original manufacturer. We are looking for reseller and distributor in every country.OEM and ODM is welcome too.
