Automatic Bottle Packing Machine Using PE Film

Automatic Bottle Packing Machine Using PE Film photo-1
US$ 8,888 - 18,888 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Bottles, Cans, Other, Bottles,Cans,Hard Cartons
Payment & Shipping
Payment Methods:
Port of Shipment:
Jiangmen Gao Sha Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage
Packaging Type Bottles, Cans, Other, Bottles,Cans,Hard Cartons
Packaging Material Plastic
Automatic Grade Other, Automatic, Full-Auto
Driven Type Other, Electric, Electric
Power 18KW
Place of Origin Guangdong, China
Brand Name Fountain Palm
Model Number JMB-250A
Certification ISO90001

Specifications

Automatic bottle packing machine
1.using PLC control
2.capacity:2000 to 12000bph
3.for bottle, cans, beverage.
4.use PE film

Specifications for Automatic Bottle packaging machine
1. The technical parameters:

Model:JMB-250A with touch screen

Packing material maximum size: L600 × W400 × H350mm

Shrink film material: PE/  PVC / POF

Shrink film thickness :0.03-0 .15 mm

Thermal furnace maximum temperature: 160 – 260°C arbitrary regulation

The maximum capacity: 6-12 packages per minutes

Equipment power: 18Kw

The actual power: 15Kw / h

 Power Requirements: 380/220V

Weight: 1.3T

Fan: 0.75Kw 380V 2 units; 65W 220V  4 units.

Length of bottle conveying machine: 2500mm



2. Technical conditions and requirements:

1 Packing form :

(1) 350/500/550/600ML-- Big packing: 4 × 6, 4 × 5 ,  Small packing : 3 × 4, 3 × 5 four types of packing.

(2) 1L/1.5L/2L/2.5L-- Big packing: 3 × 3, 3 × 4 ,  small packing:  2 × 2, 2 × 3  four types of packing.

2 Aimed at Easy Can is best way to adopt packaging with tray and after packaging is stable.

3 Packing speed :6-12 packages / min.



3. To meet the filling machine speed.

(1) 350/500/550/600ML--

     Big package:   4 × 6, 4 × 5, (12000-15000 bottles / hour),

     Small package: 3 × 5, 3× 4, (8000-10000 bottles / hour).

(2) 1L/1.5L/2L--

     Big package:   3 × 4, 3 × 3, (5000-6000 bottles / hour),

     Small package: 2 × 3, 2 × 2 (3000-4000 bottles / hour).



4. packaging materials:

PE shrink film width (200-600mm), thickness (0.08-0.12mm)



The output with feeding tray or not

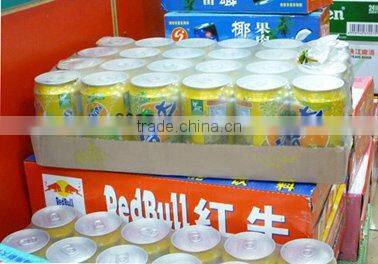

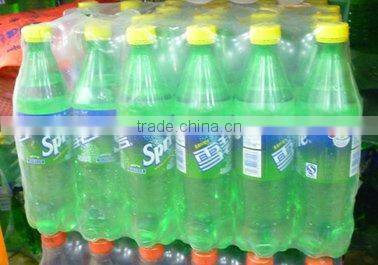

Automatic Bottle Packing Machine using PE filmAutomatic Bottle Packing Machine using PE film
