Specifications
instant flat plate solar collector1.high efficiency
2.long life flat plate collector
3.OEM flar collector
4.SGS SRCC CE
Instant flat plate solar collector
What is Features of our instant flat plate solar collector ?
•Red copper inner tube with average compressive property (working pressure is 0.2Mpa)
•Safe and cl factory price flat plate solar energy collector ean inner tube is applicable for unpressurized open loop system
•The selective absorption coating is using anodizing and electric pigmentation
•The absorptivity is94% and the emissivity is 18%
•The strong thermal stability coating can bear high temperature as 185°C
•The strong weatherability of the oxidized aluminum fin has long life over 15 years
•Aluminum fin costs less than copper one
What is Specifications of our instant flat plate solar collector ?
|
Type
|
MYS-SC801-A |
Cover |
|
|
Dimension LxWxH
|
2000 x 1000 x 80 |
Cover No. |
1 |
|
Gross Area(m2)
|
2 sq.m. |
Cover Material |
tempered glass |
|
Aperture Area(m2)
|
1.85 sq.m. |
Cover Thickness |
4mm |
|
Absorber Area(m2)
|
1.83 sq.m. |
Cover Transmission |
over 89% |
|
Absorptivity
|
94% |
Weight |
About 32kg |
|
Emissivity
|
18% |
Cover No. |
1 |
|
Max. Working Pressure
|
0.2MPa |
Life Span |
15 years |
|
Absorber
|
Thermal Insulation |
||
|
Fin Dimension
|
1850x 122x 0.65 |
Density |
32kg per cubic meters |
|
Material
|
Copper-aluminum Compound |
Insulation Material |
Fibre Glass |
|
Surface Treatment
|
Anodic Oxidation |
Insulation Thickness |
back: 40mm |
|
Construction Type
|
tube and fin |
Casing |
|
|
Header Material
|
Copper |
Frame |
6063 Aluminum Alloy |
|
Header tube size
|
φ22 ×δ0.7mm 2pcs |
Frame Color |
Champagne |
|
Riser Material
|
Copper coil pipe line |
Frame Thickness |
1mm |
|
Riser tuber size
|
φ12 ×δ0.7mm 8pcs |
Back Plate |
Aluminum Plate (1mm ) |
|
|
|
Sealing Gasket
|
EPDM |

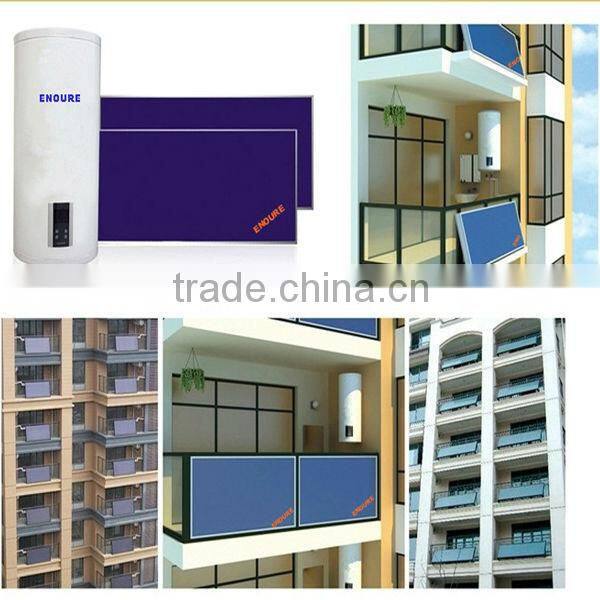

What is Applications of our instant flat plate solar collector ?
1) Domestic : Flats, Bungalows and Apartments.
2) Commercial : Hotels, Hospitals, Hostels and Dormitories.
3) Industrial : Process Industries, Preheating boiler feed water.

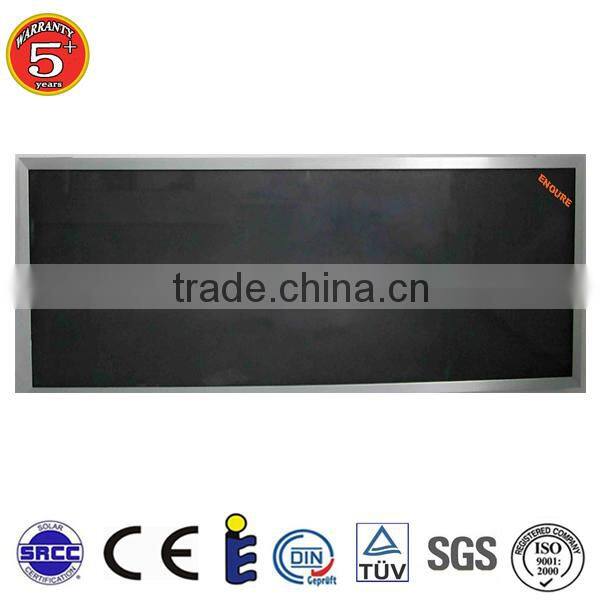

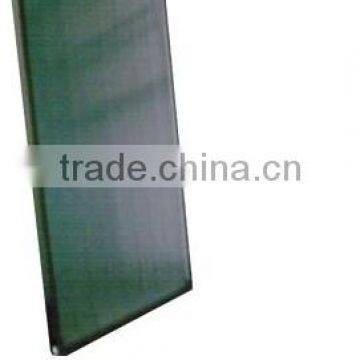

Product Photos:
Our Certifications:
Company View:
Trade Terms:
Payment: T/T, L/C
Delivery: Within 10 working days
Why choose us?
1.We are Chinese Leading instant flat plate solar collector Manufacturer;
2.Alibaba instant flat plate solar collector Top 10 Golden Supplier;
3.Inspected by the inspection of TUV&DINCERTCO;
4.100% QC Inspection before Shipping;
5.Best Quality & Professional service with Competitive price.
