48W SMD4014 LED Panel Light 600*600*10mm Panel Light 90lm/w From Coreach

48W SMD4014 LED Panel Light 600*600*10mm Panel Light 90lm/w From Coreach thumbnail-1
48W SMD4014 LED Panel Light 600*600*10mm Panel Light 90lm/w From Coreach thumbnail-2
48W SMD4014 LED Panel Light 600*600*10mm Panel Light 90lm/w From Coreach thumbnail-3
48W SMD4014 LED Panel Light 600*600*10mm Panel Light 90lm/w From Coreach thumbnail-4
48W SMD4014 LED Panel Light 600*600*10mm Panel Light 90lm/w From Coreach thumbnail-5
48W SMD4014 LED Panel Light 600*600*10mm Panel Light 90lm/w From Coreach thumbnail-6
48W SMD4014 LED Panel Light 600*600*10mm Panel Light 90lm/w From Coreach photo-1
48W SMD4014 LED Panel Light 600*600*10mm Panel Light 90lm/w From Coreach photo-2

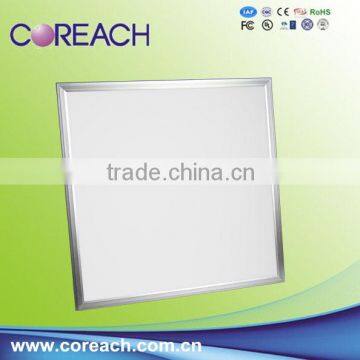

48W SMD4014 LED Panel Light 600*600*10mm Panel Light 90lm/w From Coreach photo-3
48W SMD4014 LED Panel Light 600*600*10mm Panel Light 90lm/w From Coreach photo-4
48W SMD4014 LED Panel Light 600*600*10mm Panel Light 90lm/w From Coreach photo-5
48W SMD4014 LED Panel Light 600*600*10mm Panel Light 90lm/w From Coreach photo-6
US$ 21.30 - 21.36 MOQ: 100 Pieces
Key Specifications
Get Latest Price
LED Light Source:
SMD4014
Warranty(Years):
3
Input Voltage(V):
AC85-265V,50-60Hz
Contact Supplier Request Quote Chat Now
Anhui Coreach Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Any china port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD4014
Warranty(Years) 3
Input Voltage(V) AC85-265V,50-60Hz
Lamp Power(W) 48
Lamp Luminous Flux(lm) 3840
Lamp Luminous Efficiency(lm/w) 80
Color Temperature(CCT) Cool White
Working Temperature(℃) -45, 65
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP44
Certification BV, C-tick, CCC, CE, CQC, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, SAA, SASO, UL, VDE
Place of Origin Anhui, China
Brand Name COREACH
Model Number CRH-PL060601048-T180W(W/N/D)

Panel light 48W 600*600*10mm 90lm/w from Coreach

Anhui Coreach Electronic Technology Co., Ltd

Product Description



48W LED Panel Light Physical Specifications:

Product Name Panel light 48W 600*600*10mm 90lm/w from Coreach
LED Source SMD4014
LED Chip Epistar&Samsung&Cree&Epileds
LED Quantity 216pcs
Material Aluminum + PC cover
Dimension 595*595*10 mm
Lifespan >50,000 hours

48W LED Panel Light Electrical Specifications:

Input Voltage AC85-265V
Wattage 48W
Power Factor >0.9
Power Efficiency >90%
Running Frequency 50-60Hz

48W LED Panel Light Optical Specifications:

Luminous Flux 3840lm
Light Efficiency 80lm/w
Color Rendering Index(CRI) 80Ra
Beam Angle 180°
Working Temperature -45°C~65°C
Color Temperature 2700-3500k Warm White
4000-5000k Normal White
6000-7000k Cool White







Packaging & Shipping





Inner Packing carton
Carton Size L665*W665*H200
Quantity per Carton 5pcs/ctn
Net Weight(N.W) 3.28KG/PCS
Gross Weight(G.W)

16.40 KG/CTN







Our Services

1.We provide 3 years warranty since shipping date.

2.we ship to the replacement to you with your next order if you can provide the proof of the broken parts .

3.We will request you to send back the broken parts to us to check and analyze the reasons. if the quantity exceed 20% of your order quantity, Buyer is responsible for shipping cost of returning, Seller is responsible for shipping cost of resending .

Company Information





We are led light manufacturer, we are factory in Anhui Province. Our mainly product:led bulb light,led tube light, led panel light,led down light, led spot light, led filament light,led candle light, led round panel light, led ceiling light and so on.



Factory have ISO9001 certificate. Product pass CE ROHS EMC LVD certification.

FAQ





How to order?

1.Send us the inquiry if you have any questions before order.
2. Tell us the model number and quantity you want for whole order.
3. We make PI for you reference.
4. You pay us and inform us.
5. We arrange the products and ship your order.
6. Tell you the tracking information and track it until you get it.
7. You get the products.

Any comment please feel free to contact me.
