Solares Energia Solar Water Heater

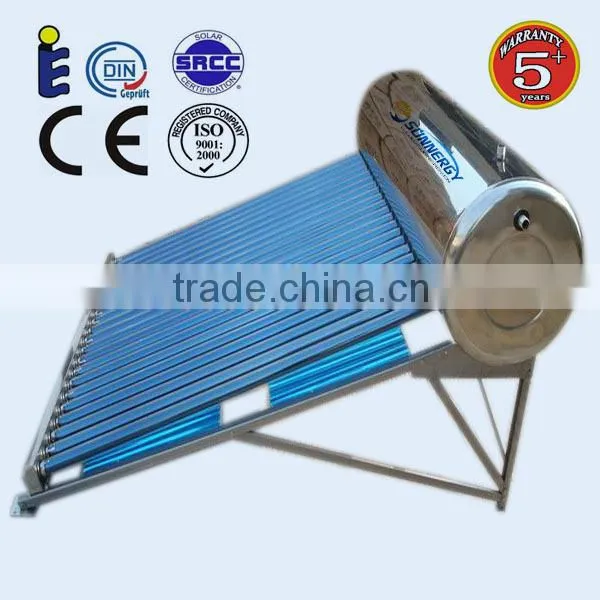

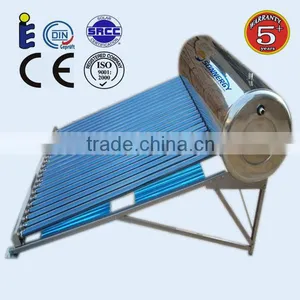

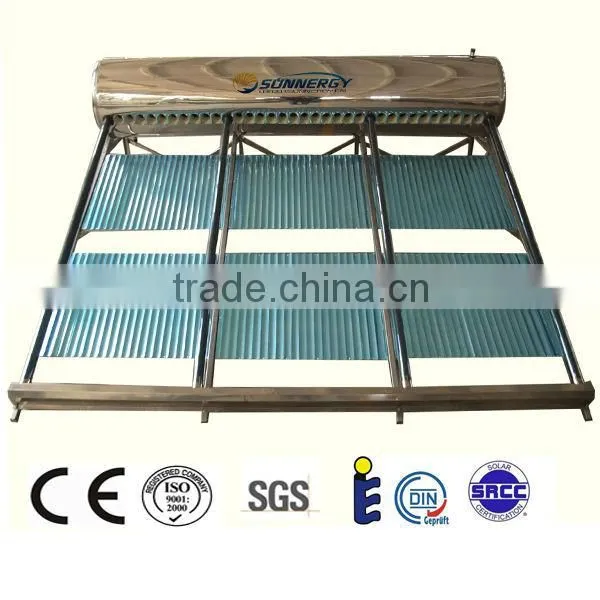

Solares Energia Solar Water Heater photo-1
US$ 30 - 650 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Evacuated Tube
Pressure:
Unpressurized
Circulation Type:
Direct / Open Loop (Active)
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Type Evacuated Tube
Pressure Unpressurized
Circulation Type Direct / Open Loop (Active)
Heating System Thermosyphon (Passive)
Connection Type Other, Direct-Plug, Direct-Plug
Installation Freestanding
Housing Material Stainless Steel
Certification CE, Other, CE, CE, SRCC SGS ISO9001-2000, CE, ISO9001-2000,SRCC ,SGS ,solar keymark
Capacity 180
Place of Origin Jiangsu, China
Brand Name ENOURE, SUNNERGY
Model Number SN SERIES

Specifications

Solares Energia Solar Water Heater
high effeciency
delivery:10 days
OEM available
CE ISO9001-2000 SRCC SGS

Solares  Energia Solar Water Heater



What is Features of our Solares Energia solar water heater?



•Tank material use SUS304 & SUS316, better than galvanized steel
•Correctly designed ribs for strength and rigidity.

•High efficiency and long life
•It can endure the harsh environment.

•Meet the international standard.

•Meet the international standard.



What is Specifications of our Solares Energia solar water heater?





Product name:

passive solar water heater
Product size:
Product class: Unpressurized Type
Product Introduction:

Stainless Steel System:
1. Material of Inner tank: SUS304-2B stainless steel with 0.4mm thickness
2. Material of Outer tank: SUS304-2B stainless steel with 0.31mm thickness
3. Magnetic-controlled Al-N-Al splash all glass evacuated heat-collecting tubes, fast heat absorbing and temperature risen
4. Heat Preservation Layer:55mm polyurethane integral foaming, superior heat preservation
5. Material of support:Stainless Steel Profiled Bar with 1.2mm thickness

Model
Absorbing Area
(m2)
Glass Vacuum Tube
Tank Capability
(L)
Loading Qty(sets)
20"/40"
Ø(mm)
L(mm)
NO.(PCS)
420-1500/47-15-C
0.75
47
1500
15
85
66/137
420-1500/47-18-C
0.90
47
1500
18
100
56/115
420-1500/47-20-C
1.00
47
1500
20
111
50/105
420-1500/47-24-C
1.20
47
1500
24
135
44/92
420-1500/47-30-C
1.50
47
1500
30
166
36/75
470-1500/47-15-C
0.75
47
1500
15
113
51/102
470-1500/47-18-C
0.90
47
1500
18
140
44/88
470-1500/47-20-C
1.00
47
1500
20
150
42/84
470-1500/47-24-C
1.20
47
1500
24
180
33/66
470-1500/47-30-C
1.50
47
1500
30
230
30/60
470-1800/58-16-C
1.28
58
1800
16
133
44/91
470-1800/58-18-C
1.44
58
1800
18
150
39/81
470-1800/58-20-C
1.60
58
1800
20
165
35/73
470-1800/58-24-C
1.92
58
1800
24
200
30/62
470-1800/58-30-C
2.40
58
1800
30
250
24/50

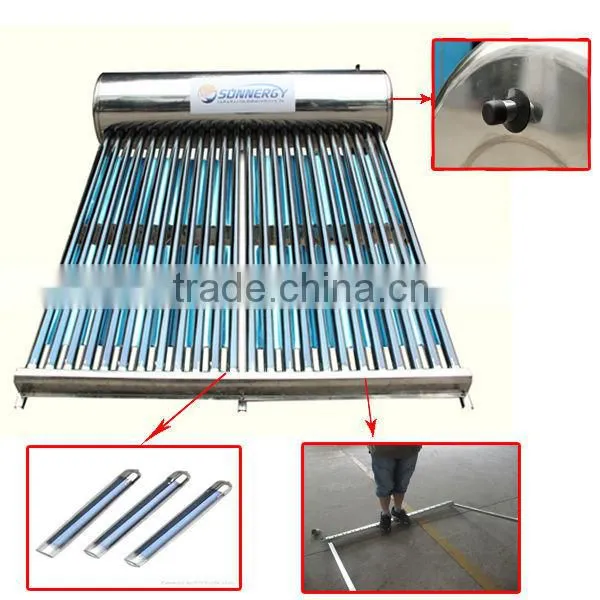

Product Photos:

Solares Energia Solar Water Heater

Solares Energia Solar Water Heater

Solares Energia Solar Water HeaterSolares Energia Solar Water HeaterSolares Energia Solar Water Heater

Solares Energia Solar Water Heater

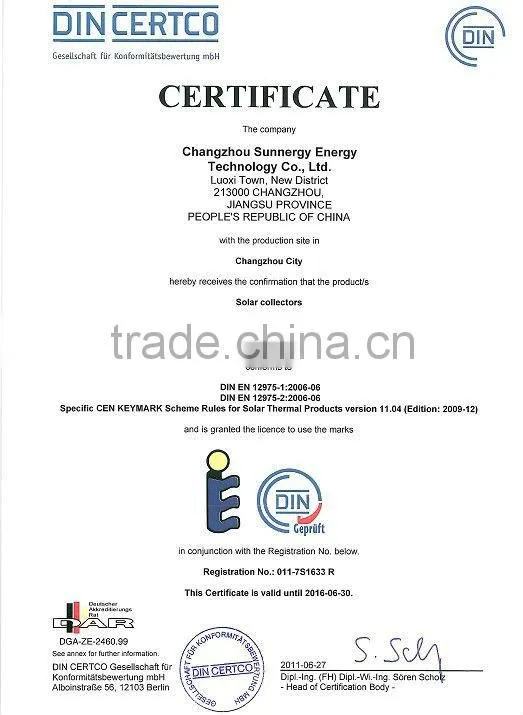

Our Certifications:



Solares Energia Solar Water HeaterSolares Energia Solar Water Heater

Trade Terms:





 Payment: T/T, L/C



 Delivery: Within 10 working days



Why choose us?



We are Chinese  Solares Energia Solar Water Heater Manufacturer;

Alibaba Solares Energia solar water heater Top 10 Golden Supplier;

Inspected by the inspection of TUV&DINCERTCO;

100% QC Inspection before Shipping;

Best Quality & Professional service with Competitive price;

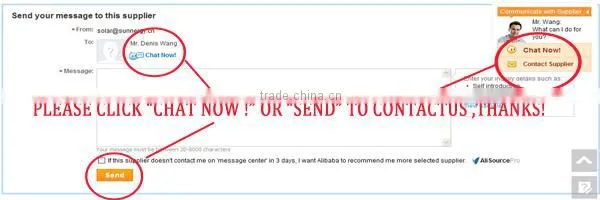

How to Contact Us?
