2013 High Quality Solar Water Geysers

2013 High Quality Solar Water Geysers photo-1
US$ 50 - 600 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Evacuated Tube
Pressure:
Pressurized
Circulation Type:
Direct / Open Loop (Active)
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Type Evacuated Tube
Pressure Pressurized
Circulation Type Direct / Open Loop (Active)
Heating System Thermosyphon (Passive)
Connection Type Direct-Plug
Installation Freestanding
Housing Material Stainless Steel
Certification CE, Other, CE, CE, ISO9001-2000,SRCC ,SGS ,solar keymark, CE, ISO9001-2000,SRCC ,SGS ,solar keymark
Capacity 165
Place of Origin Jiangsu, China
Brand Name SUNNERGY, SUNNERGY
Model Number SN-470-58/1800-24

Specifications

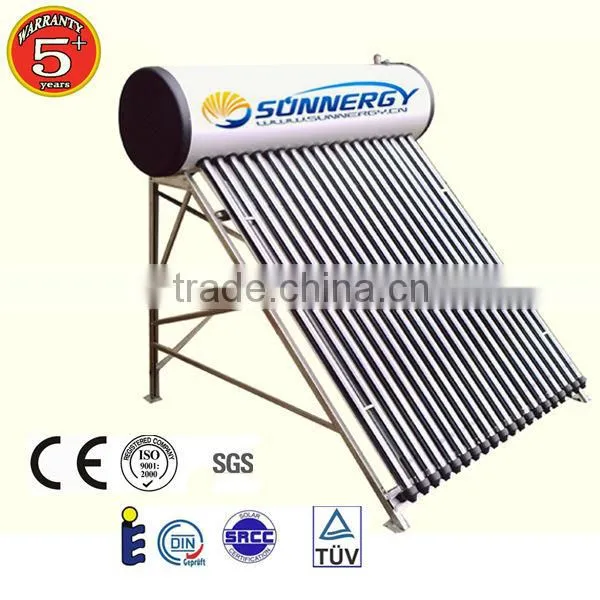

2013 high quality solar water geysers
1.Warranty:5 years
2.high quality and efficiency
3.OEM privide
4.CE ISO9001-2000 SGS

2013 high quality solar water geysers

Changzhou sunnergy solar water heater co.,ltd.is specially engaged in research ,development,production and sales of solar water heaters and collectors and solar water tanks.



Product name: 2013 high quality solar water geysers
Product size:
Product class: Pressurized Type
Product Introduction:




1.high effeciency mpt delivery,delivery:10 days 3.CE ISO9001-2000 SRCC CE SGS solar keymark 4.5 years quality warranty petitive price 6.OEM available 7.Easy installation,convenient operation 8.Design for you 9.Assured quality,fast delivery stainless solar water heater,solar water heater ,solar energy,renewable stainles vacuum tube solar water heaters

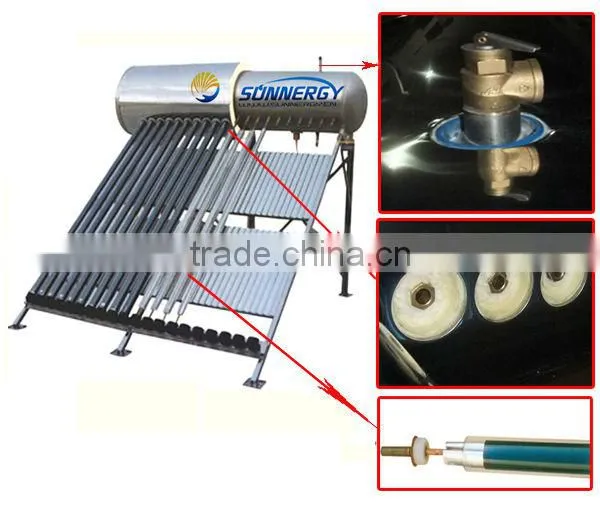

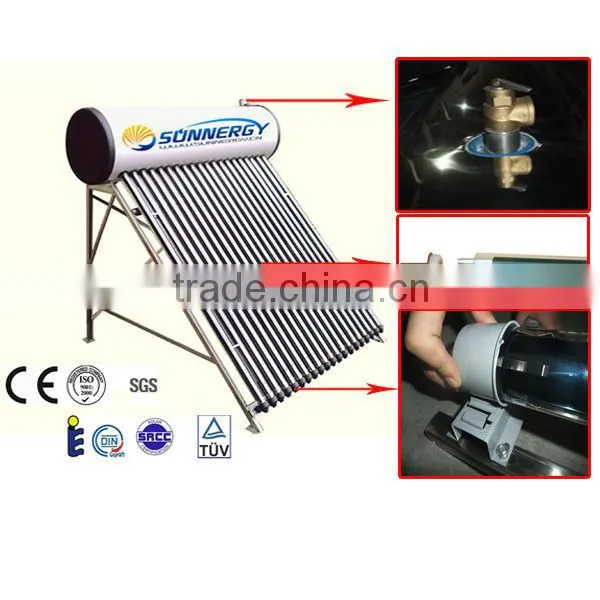

Stainless Steel System:
1. Material of Inner tank: SUS304-2B stainless steel with 0.4mm thickness
2. Material of Outer tank: SUS304-2B stainless steel with 0.31mm thickness
3. Magnetic-controlled Al-N-Al splash all glass evacuated heat-collecting tubes, fast heat absorbing and temperature risen
4. Heat Preservation Layer:55mm polyurethane integral foaming, superior heat preservation
5. Material of support:Stainless Steel Profiled Bar with 1.2mm thickness

Model
Absorbing Area
(m2)
Glass Vacuum Tube
Tank Capability
(L)
Loading Qty(sets)
20"/40"
Ø(mm)
L(mm)
NO.(PCS)
420-1500/47-15-C
0.75
47
1500
15
85
66/137
420-1500/47-18-C
0.90
47
1500
18
100
56/115
420-1500/47-20-C
1.00
47
1500
20
111
50/105
420-1500/47-24-C
1.20
47
1500
24
135
44/92
420-1500/47-30-C
1.50
47
1500
30
166
36/75
470-1500/47-15-C
0.75
47
1500
15
113
51/102
470-1500/47-18-C
0.90
47
1500
18
140
44/88
470-1500/47-20-C
1.00
47
1500
20
150
42/84
470-1500/47-24-C
1.20
47
1500
24
180
33/66
470-1500/47-30-C
1.50
47
1500
30
230
30/60
470-1800/58-16-C
1.28
58
1800
16
133
44/91
470-1800/58-18-C
1.44
58
1800
18
150
39/81
470-1800/58-20-C
1.60
58
1800
20
165
35/73
470-1800/58-24-C
1.92
58
1800
24
200
30/62
470-1800/58-30-C
2.40
58
1800
30
250
24/50

2013 high quality solar water geysers

 2013 high quality solar water geysers2013 high quality solar water geysers2013 high quality solar water geysers2013 high quality solar water geysers2013 high quality solar water geysers
