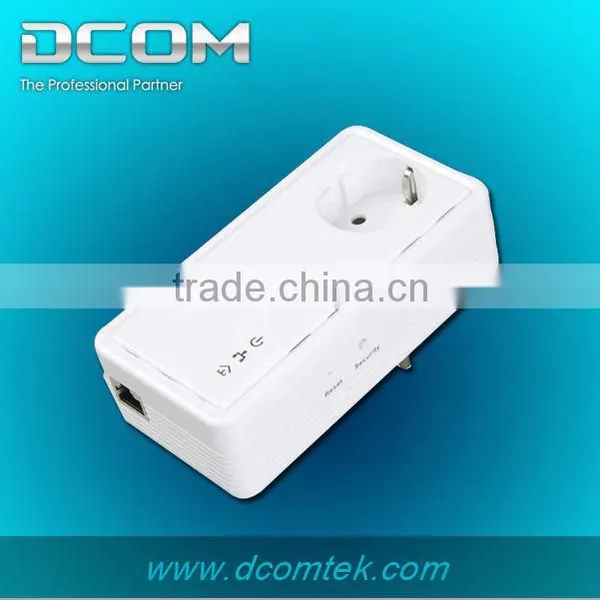

PLC Homeplug Powerline Adapter

US$ 25 - 30 MOQ: 1000 Sets

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

DPL-P200I

Shenzhen Dcom Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OEM

Model Number DPL-P200I

Type AC Power Cord

Application Telecommunication

Male End Type Other, AC adapter

Female End Type Other, AC Adapter

Specifications

1.200M Powerline Passthrough Adapter
2.Wallmount
3.Power voltage range of 100 to 240 V AC 50/60Hz
4.HomePlug AV compliant

Parameter	Specification
System SPEC
Chipset	Intellon INT6400/INT1400
Serial Flash	16Mbits
SDRAM:	64Mbits
Firmware	Support North America/Europe/APAC/Japan
Feature and Technology SPEC
Protocol	HomePlug AV IEEE 802.3 10/100 Ethernet (100Mbps) IEEE 802.3u Fast Ethernet Co-exists with existing HomePlug 1.0
PLC Rate	200Mbit/s
Data Rate - TCP/UDP	65Mbps TCP 90Mbps UDP
Modulation Band	2-30MHz
Modulation Schemes	Supports 1024/256/64/16/8-QAM, QPSK,BPSK and ROBO
Encryption	128-bit AES
Outlet current	220VAC 16A Maximum,110VAC 20A Maximum
Filter characteristics	-22 dB to -45 dB
QoS	Support contention-free access, four-level priority based contention access, and multi segment bursting Support VLAN Priority Support ToS and CoS Packet Classifier
Work Mode	TDMA and priority based CSMA/CA
Multicast Support	Supports IGMP managed multicast sessions
IPv6	Support
Ethernet Interface	1 x RJ45 for 10/100 Ethernet (Auto MDI/MDI-X)

System SPEC
System Support	Windows 98SE, 2000, ME, XP 32/64 bit and Vista 32/64bit
LED’s	Power Ethernet: Ethernet Link and Activity Data: PLC Link and Activity Wlan: Wireless Link and Activity
Power Socket	Support British, Euro, Japan, US and China power connector
Ethernet Interface	1 x RJ45 for 10/100 Ethernet (Auto MDI/MDI-X)
Consumption	3.5W (Max)
Environment Requirement
Operating Temperature	0º to 40º C
Storage Temperature	-20 º to 70 º C
Operating Humidity	10% to 90% Non-condensing
Storage Humidity	5% to 90% Non-Condensing
Input Rating	100-240 VAC, 50/60Hz
EMC and Safety
Regulatory Compliance	FCC Part 15 Class B CE
Safety Regulations	UL
Green Standard	RoHS
Physical Characteristics
Dimension	L×W×H: 132mm×67mm×41mm
Weight	223g
