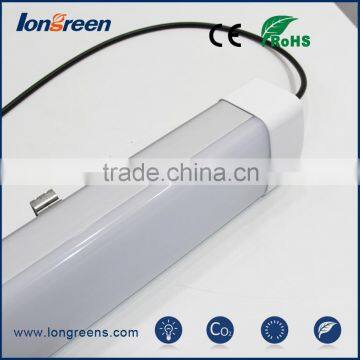

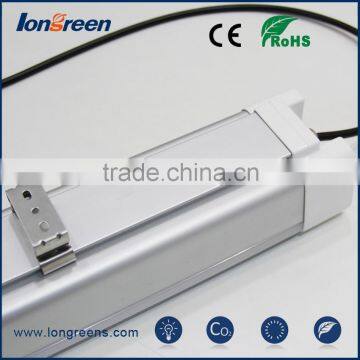

Newest IP65 LED Tri-proof Light with CE, ROHS 3 years warranty
General Overview of Tri-proof Linear Light
1,The new Sell well industrial and super LED Tri-proof light Patented design;
2,IP65,waterproof,dustproof,anti-corrosion;
3,The lighting effect could be above 100LM/W,used for 6—8M high lighting;
4,The lifespan is 50000 hours;
5,Concise appearance design, easy for installation and maintenance:Ceiling and recessed;
6,No UV, IR, mercury and other harmful materials
7,Microwave radar sensor function provided
Product Details:
Specification of Tri-proof Linear Light
- LED Source: Epistar SMD2835
- Input Voltage: AC 100-240V
- PF: >0.9
- CCT: WW,NW,CC
- CRI: Ra80
- Luminous Efficiency: 100lm/W
- Beam Angle:180°
- Lifespan: 30000Hrs
- Product Materials: Aluminium Alloy+PC
- IP: IP65
- Installation:surface mounted, suspended

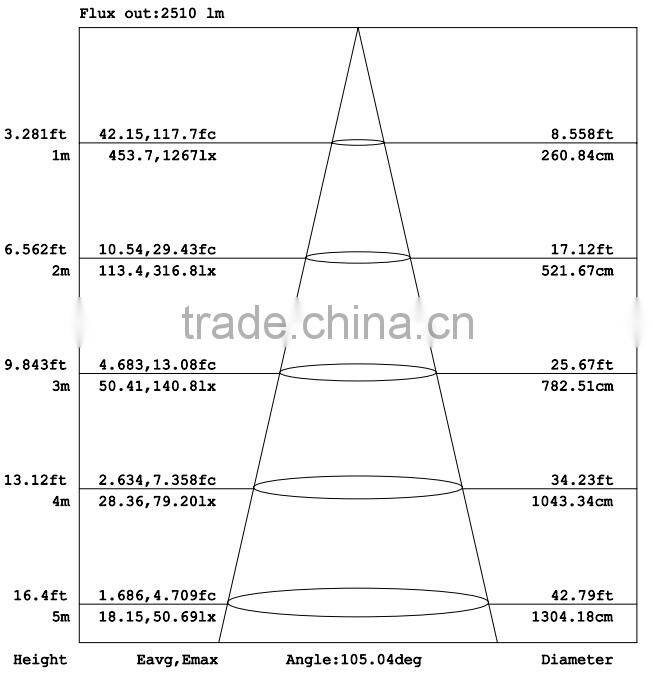

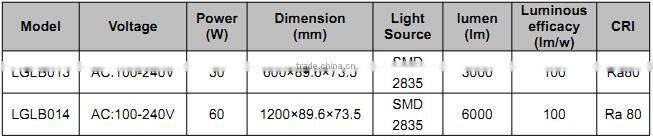

Technical Specification of Tri-proof Linear Light
Parameters of 0.6M Tri-proof Linear Light
Product Mode |
LGLB013 |
Power |
30W |
Input Voltage |
AC 100-240V |
Working Current |
700 mA |
Supply frequency |
50~60Hz |
Power factor(PF) |
>0.95 |
Luminous flux |
>3000Lm |
Luminous efficacy |
>100Lm/W |
Color Temperature: |
2700-3200K ,4000-4500K ,6000-6500K |
CRI(CRI) |
Ra>80 |

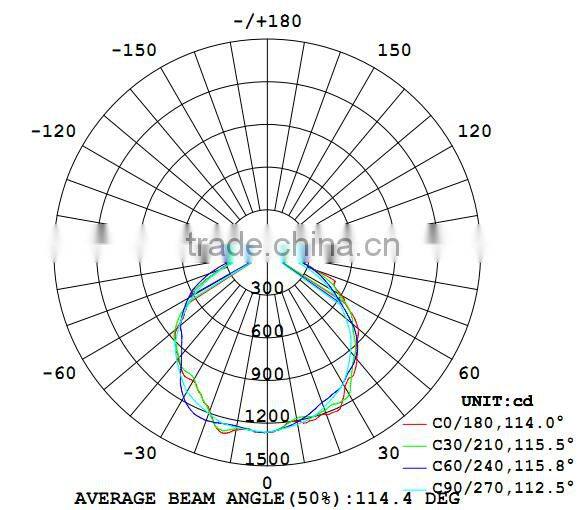

Beam Angle |
180° |
LED Source |
Epistar 2835 |
Material |
Aluminium Alloy+PC |
Housing colors |
Silver |
IP Rating |
IP65 |
Installation |
surface mounted,suspended |
Net Weight |
1.6Kg |
Dimension |
600×89.6×73.5 |

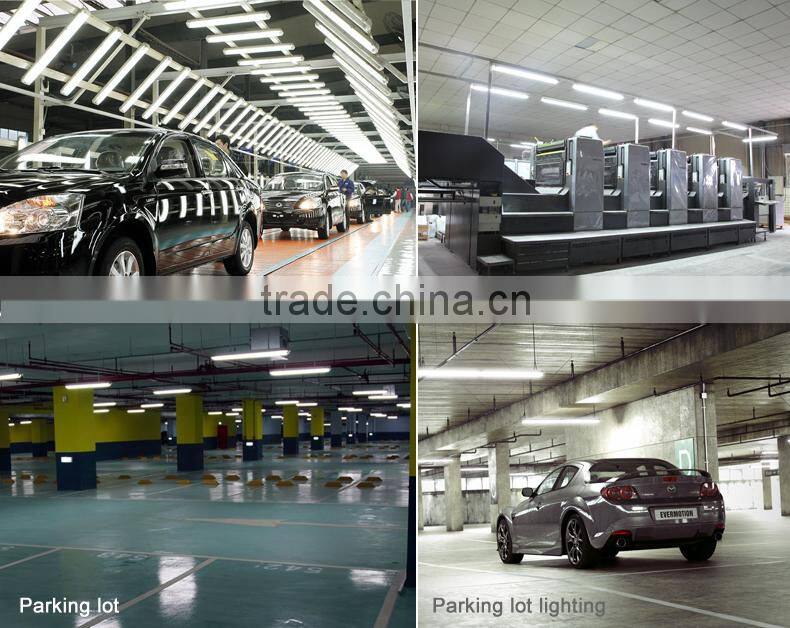

Application:
-Shopping center
-Office
-Factory
-Workshop
- Underground parking
-Corridor
- Warehouse

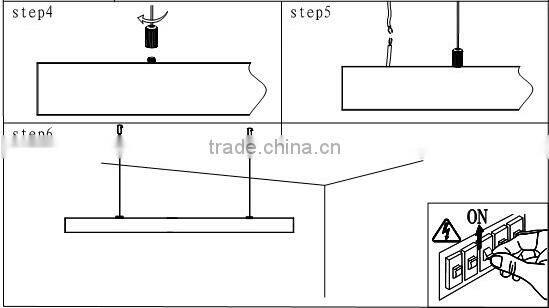

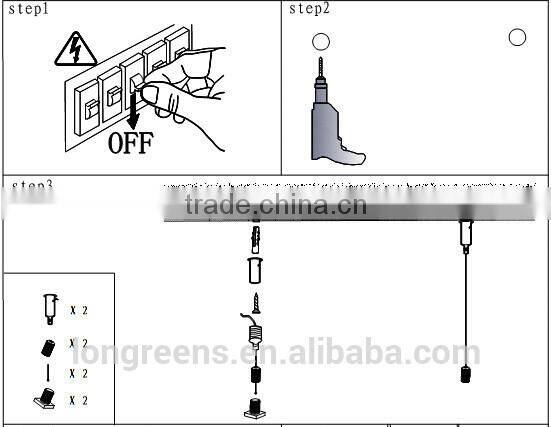

Install drawing:

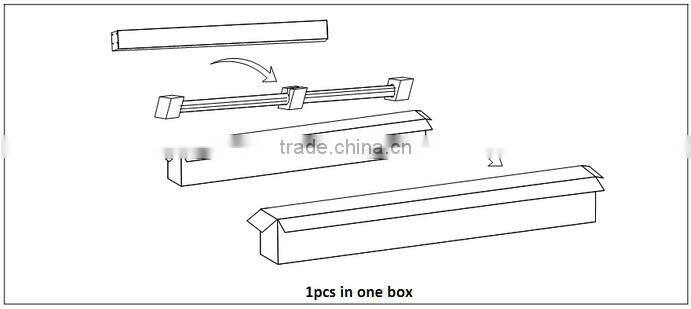

Well packed package
Available for multiple transportation condition,avoide the goods from damaging
Plastic bag for each panel light, avoide scratch;
Installation instruction sheet for details in installation, customized design;
Colorful box for each panel light, good for selling, customized label and design;
Neutral carton for packing in 6boxes/ ctn, customized labels
1. Your inquiry related to our products or prices will be replied in 24 hours.
2. Well-trained and experienced staffs to answer all your inquires
3. OEM & ODM, any your customized lighting we can help to design and produce.
4. Protection of your sale's area, idea of design and all your private information
5. All the products must gained 24 hours aging testing before delivery to ensure the quality again.
6. Delivery time: 3-4 days for sample,7-15days for bulk order usually
7. Delivery way: DHL; UPS; TNT; FEDEX; EMS; BY SEA; BY AIR
8. 3 year warranty for our led products.
-Provide professional industrial lighting, office lighting, super LED lighting solutions
-We have a complete and stable R & D in product development team, QA quality control system, production and supply system.
-All LED lighting products meet CE.ROHS, OL.SAA safety standards and quality certification
-We have a number of product certification and testing reports
-24 hours of aging, each batch of product shipments are strict testing all aspects, to ensure that products manufactured pass rate of 100%
-We are committed to providing customers with high quality LED products and solutions, and high value- added services.
Q: 1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: 2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 5000pcs.
Q: 3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q: 4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q: 5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q: 6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q 7: Do you offer guarantee for the products?
A: Yes, we offer 3years warranty to our products.
Q 8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q. 9:Do you have certificates about the led panel light?
A: we have got CE,RoHS,EMC,LVD certificates
