Modern Design 50W Suspended Super Linear Light With Ce Rohs Approved

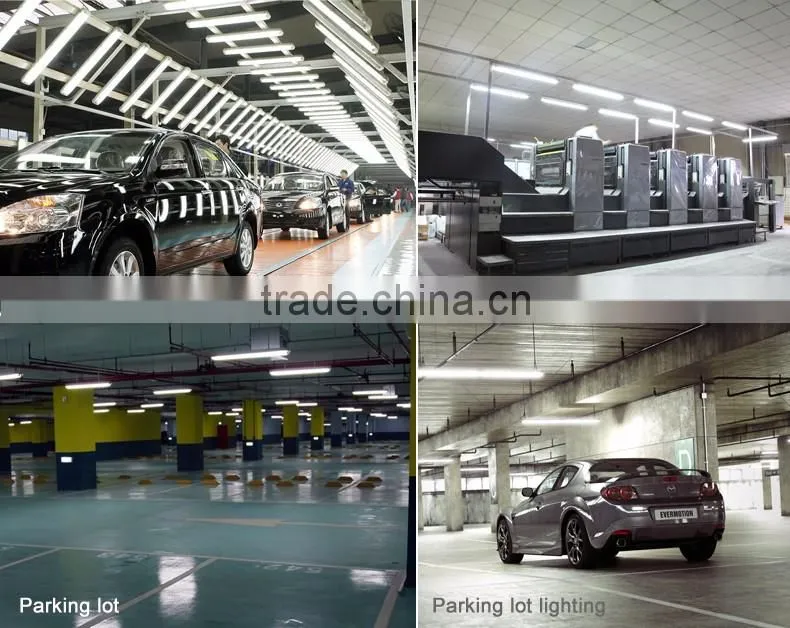

1. Good solution for super market, factory facilities, train, bus station, garage, airport ,warehouses, fair and exhibition halls, etc
2. Philip 3030 LED as option,lumen efficency up to 120lm/w with CRI over 80Ra.
3.Nice optical design with multiple beam angle (30° 60° 90°and double 25°).
4. With function of Microwave sensor,Daylight sensor,0-10V,DALI,emergency.
5. Rational design and easy installation, With installation of Chain connection.
Light Distribtion Drawing:
Parameters of 1.2M Tri-proof Linear Light:
Product Mode |
LGLD011 |
LGLD012 |
LGLD013 |
Power |
26W |
50W |
75W |
Input Voltage |
AC 220-240V |
AC 220-240V |
AC 220-240V |
Supply frequency |
50~60Hz |
50~60Hz |
50~60Hz |
Power factor(PF) |
>0.95 |
>0.95 |
>0.95 |
Luminous flux |
>3250 Lm |
>6250 Lm |
>9375Lm |
Luminous efficacy |
>125Lm/W |
>125Lm/W |
>125Lm/W |
Color Temperature: |
2700-3200K ,4000-5000K ,5700-6500K |
||
CRI(CRI) |
Ra>80 |
Ra>80 |
Ra>80 |
Beam Angle |
30° 60° 90° Double25° |
||
LED Source |
Philip SMD3030 |
||
Material |
6063Aluminium +PC |
||
Housing colors |
Silver,Black or White |
||
IP Rating |
IP44 |
||
Installation |
surface mounted, suspended |
||
Net Weight |
2.7 KGS |
4.3KGS |
5.1KGS |
Dimension |
L580×W62×H56mm |
L1154×W62×H56mm |
L1440×W62×H56mm |
Product Picture:
