EC Backward Curved Fan

EC Backward Curved Fan thumbnail-1
EC Backward Curved Fan photo-1
Negotiable MOQ: 200 Cartons (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Electric Current Type:
Other, ECAC
Blade Material:
Other, Metal
Mounting:
Other
Contact Supplier Request Quote Chat Now
PSC Motor And Fan China Inc.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type Other, ECAC
Blade Material Other, Metal
Mounting Other
Place of Origin Guangdong, China
Brand Name PSCMF, PSCMF
Model Number PI2E400141UB2M
Voltage 230V
Air Volume 2100CFM
Speed 1550RPM
Certification UL

Specifications

1.EC Centrifugal Impeller Fan
2.Quality: High Quality
3.Price: Competitive
4.Lead Time: Shortly

404 EC Centrifugal Impeller Fan/backward centrifugal fan/backward curved impeller fan/industrial centrifugal fan

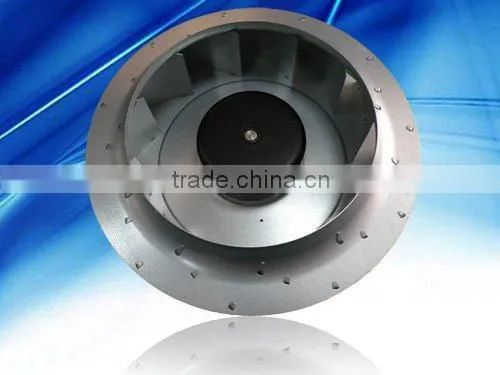

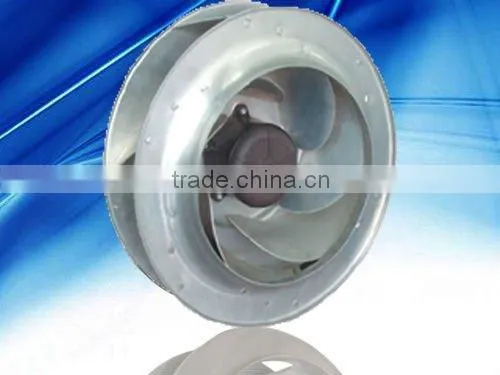

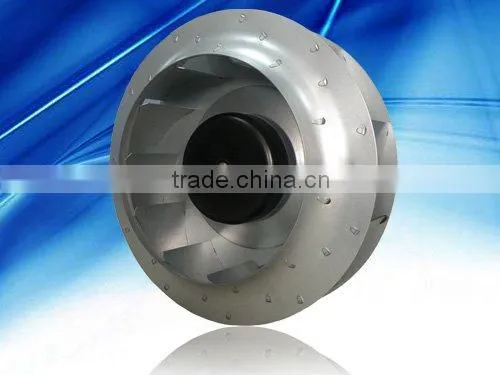

 EC backward curved FanEC backward curved Fan

  1. size Ø404x206mm
  2. Weight:7.7kg
  3. Impeller: Plastic PA6.6(polyamide glass-fibre reinforced)
  4. Rotor: Black paint
  5. Insulation: Class A
  6. Safety: In process
  7. Operation Temperature:-20°c~+60°c
  8. Rated Voltage :230V
  9. Direction of rotation:Clockwise , seen on rotor
Listed
Model		 Bearing
System		 Rated Voltage Operating Voltage Frequency Rated
Current		 Rated
Speed		 Power Air
Flow		 Air
pressure		 Noise
Level
Part NO. B / S VAC VAC Hz A RPM W CFM m3/h mmH2O inH2O dBA
PI2E400141UB2M B 230 184~276 50/60 2.45 1,550 360 2100.8 3568.7 71.09 2.8 71
