Help CenterPSC ECAC Blower: 205mm x 219mm x 272mm
Related Products
-
PSC ECAC Blower: 245x218x138mm With CE and Erp 2015NegotiableMOQ: 200 Pieces -
New Product! PSC IP54 Metal EC Centrifugal Blower: 180x171.5x95mm With CE and Erp2015NegotiableMOQ: 200 Pieces
-
PSC ECAC Industrial Blower 205x219x272mmNegotiableMOQ: 200 Pieces
-
PSC EC Centrifugal Blower Industrial Blower 245x218x138mmNegotiableMOQ: 200 Pieces
-
Tired and Tested for You! PSC EC Dual Inlet Blower 205x219x272mm With CE and Erp 2015NegotiableMOQ: 200 Pieces
Specifications
ECAC Blower: 205mm x 219mm x 272mm---PSC Motor and Fan1.High Quality
2.Energy-saving
3.Long life
4.Reasonable Price
PSC ECAC Blower:205x219x272mm ----PSC Motor and Fan
Company Profile
PSC Motor and Fan is an American company specialized in Thermal Solution since 1993, and its main products are DC/AC/EC Backward Curved Impeller, Axial Fan, DC/AC/ECAC Blower and CPU Cooler.
PSC has been a major supplier to HP Compaq, IBM, ATI, Cisco Systems, Rockwell Automation, NCR, APC (American Power Conversion, SGI and other many well-known companies in the world.
Key Features
– Low noise at high air flow and low back pressure
– High air flow at low flow rates
– Good contact of cooled ducts and surfaces with cold air due
– to the expanded width of the exhaust surface
– Very flat design
– Moisture-protected versions, for example for refrigeration
– technology
– GreenTech EC motors enable higher speeds and a higher
– maximum pressure than is possible with AC motors, as well
– as intelligent speed control via PWM signal

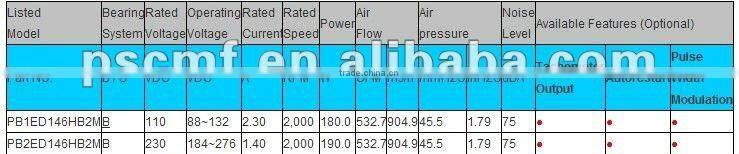

Base Parameter

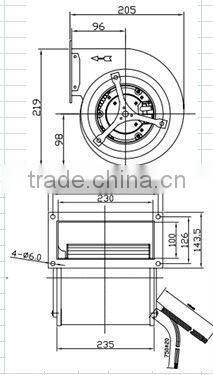

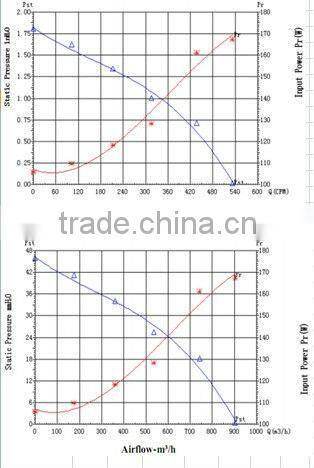

Outline Drawing & Performance Curve
ECAC technology
When PSC Motor and Fan describe their range of ECAC products, we use the acronym “ECAC,” to refer to an electric motor, fan, blower or impeller that is powered by Electronically Commutated Alternating Current.
This means that the power to the unit comes out of the available power socket; this is 115V AC in the US and 230V AC in Europe and Asia.
Each PSC ECAC Motor is equipped with sophisticated on-board Voltage Conversion Circuitry that converts the 115V AC or 230VAC power input to 90V DC power, and it is this current that actually powers the Motor.
As the motor itself is now actually powered by DC input, we can now incorporate the standard DC Motor functionality that would not be available with a standard AC powered unit.
This functionality includes the following features:
l The biggest benefit is PWM Speed Control or Analog Speed Control. This allows the User to vary the RPM of the motor to whatever speed is needed by his system; with a standard AC motor, it has to run at maximum speed at all times.
l A Tachometer Out Signal is provided, so that the User can monitor the performance of the motor. This signal usually provides 3 Pulses per Revolution.
l An Alarm Signal can also be available which tells the User if the Motor has stopped for some other reason.
The major advantage of ECAC technology, as compared to a straight AC-powered electric motor, is the Power Savings.
As an example, a standard 225mm AC Impeller may consume 160 Watts in power, whereas an equivalent 225mm ECAC Impeller may consume only 108 Watts in power, thereby using 62 per cent as much power as the AC unit.
ECAC powered electric motors, and by extension the full range of ECAC air moving devices manufactured by PSC Motor and Fan, will see on average a drop in power consumption of at least 30 per cent over an equivalent conventional AC powered unit.
