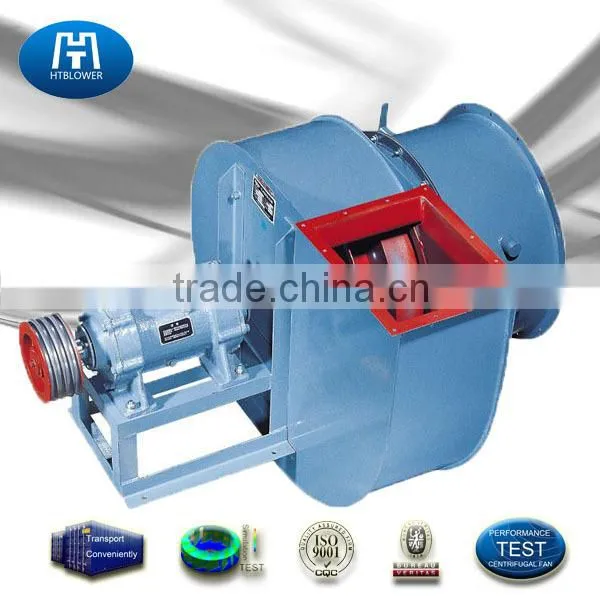

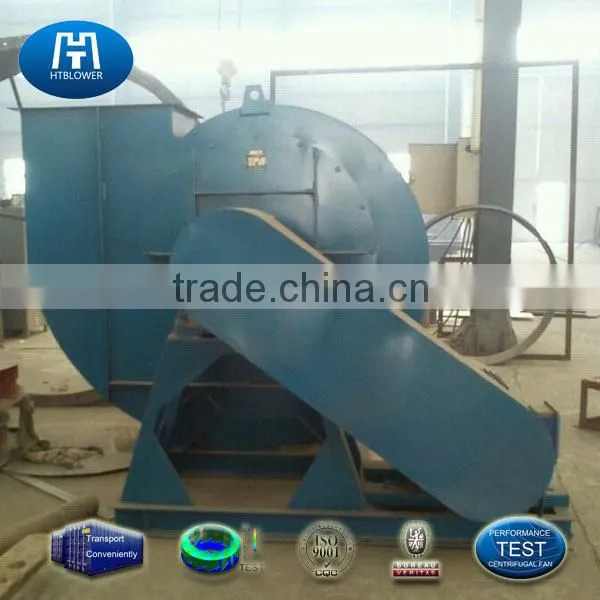

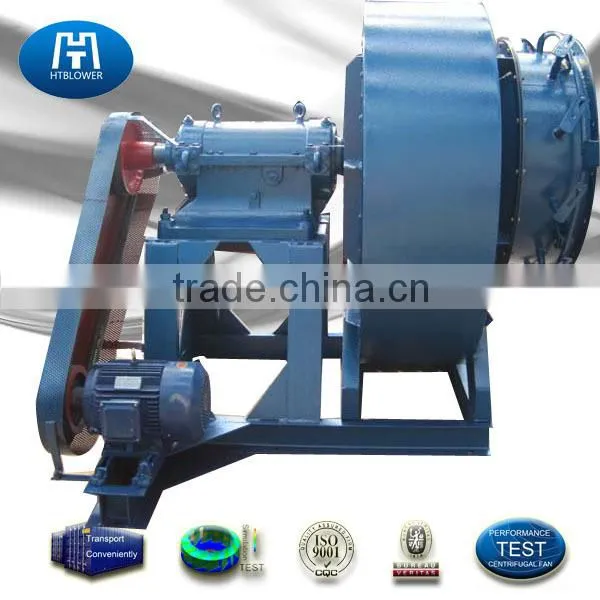

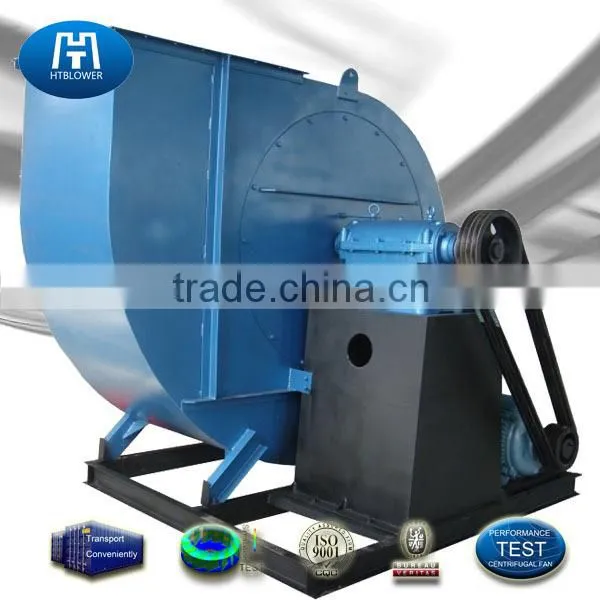

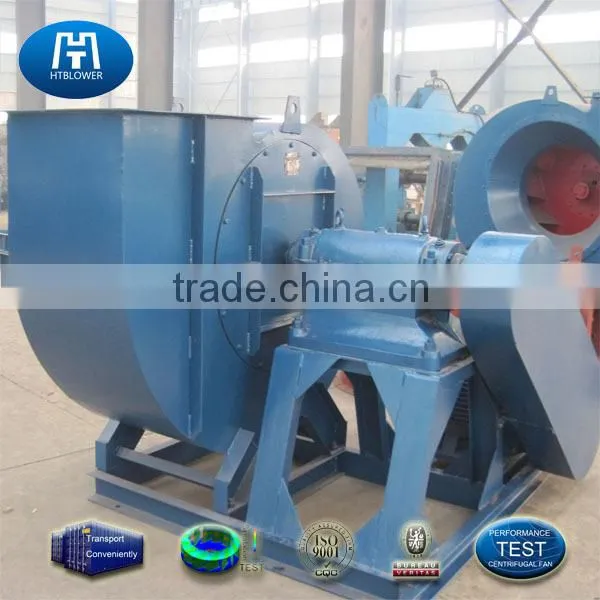

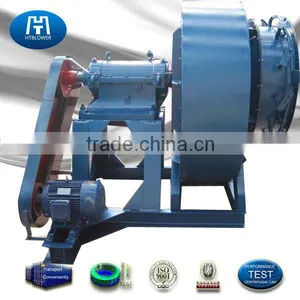

Long life span Good Material Mineral powder Centrifugal Fan
Welcome To Henan Hengtong Blower CO.,LTD
Hengtong Blower products in each big industry were used as key equipment, among dust removal blower, boiler blower, cement fan, ventilation fan ,Chemical plant blower , Material Mineral powder Centrifugal Fan , environmental protect blower etc were used in industrial and civil fields.
1.Certifacate:

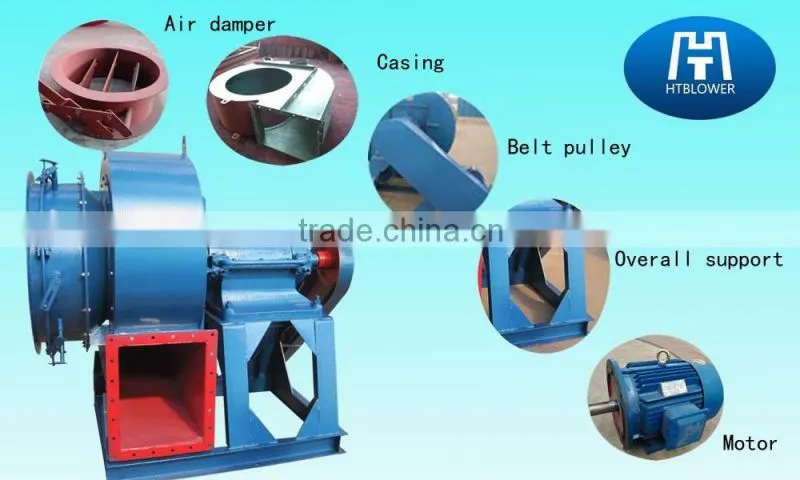

2.Recommended Parts: Material Mineral powder Centrifugal Fan :
Casing: Rugged enclosure design, selection of appropriate electrode for welding high-strength , ensure that housing more durable.
Impeller:Impeller annealed completely eliminate welding stress generated when the structure to ensure that the shape of the impeller does not occur creep and cracks.
Belt pulley:The structure is compact save a space ,differential transmission.
Air damper: Through damper adjustment into the internal gas flow, the fan to meet damper can make gas prewhirl effect, to enhance the overall efficiency of the fan.
Air inlet: Convergence can be a good design to reduce wind resistance, and to be able to get better gas inlet angle when entering the impeller wheel, can effectively improve the operating efficiency of the fan.
Overall support:Overall support is your installation is very simple and easy operation
Motor:General motor, high voltage, frequency conversion motor or custom is appropriate for your system
3.Technical Speficitions:
Application |
Temperature |
Normal temperature Air |
|||
Air composition |
Clean air |
||||
Dusty air | |||||
Performance |
Impeller diameter |
400 |
~ |
3200 |
mm |
Speed of mainshaft |
960 |
~ |
3550 |
rpm |
|
Pressure range |
251 |
~ |
4500 |
Pa |
|
1 |
~ |
33 |
mmHg |
||
25 |
~ |
459 |
mmH2O |
||
Flow range |
844 |
~ |
15455 |
m3/h |
|
1434 |
~ |
26270 |
CFM |
||
4.Our Principle:
Material Mineral powder Centrifugal Fan by motor, drive the impeller rotation, the gas along the air inlet get into the impeller, as a result of the action of the impeller, the gas gain energy, pressure and kinetic energy increased, the impeller gas out of the volute impeller junior people after work, leave is the role of volute impeller gas concentration of diversion, and parts of the gas kinetic energy into the static pressure, and then send the gas from the outlet of the spiral case, when the gas enough energy to overcome the resistance of pipelines and gas can be transported to high or the distance.
5.Production Process:
Our production process of Material Mineral powder Centrifugal Fan by the Large Plate Shears, Automatic CNC cutting machine, Spinning Machine,700T Hydropress, Impeller Welding, Casing Welding, Fan test Systerm, Wooden packging, Port of shipment complete.
6.Instalation service:
There are three methods for our Material Mineral powder Centrifugal Fan installation:
7.Application:
8.Order requirement:
We will appreciate it a lot if you can offer us your product performance requirement and operation environment for Material Mineral powder Centrifugal Fan of you need,so that we can customize optimal product to meet your every requirement.
Air volume/air flow |
m3/h |
|
Total pressure or static pressure |
Pa |
|
Medium temperature |
℃ |
|
Voltage |
v |
|
Frequency |
Hz |
|
Altitude of operation place |
m |
If you are interested in our Material Mineral powder Centrifugal Fan , Please don't hesitate to contact me !
htblower.en.china.cn
We will give you a favorable price. .
