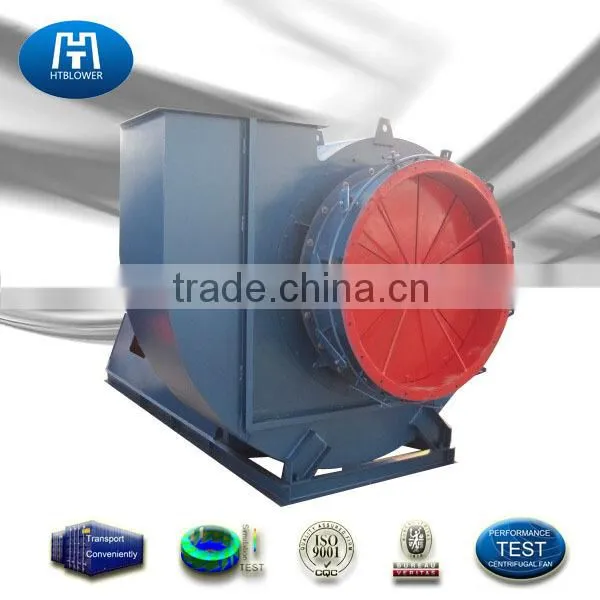

High efficient wear-resistant power generation blower

FOB Price

USD $600 - $8,000 / Set

1 Set(Min.Order)

Supply Ability 300 Set / Sets per Month
Port Qingdao shanghai or customer's requirements
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Electric Current Type:	AC	Blade Material:	Other, Cast Iron, carbon steel	Mounting:	Other, Free Standing, Free Standing
Place of Origin:	Henan, China	Brand Name:	Hengtong, Hengtong	Model Number:	XTS-150
Power:	5.5~367.6kw, 5.5~367.6kw	Voltage:	380~660V, 3~11kV	Air Volume:	5508~120000m3/h
Speed:	730~1450r/min, 960~2900r/min	Certification:	Other, ISO 9001:2008	After-sales Service Provided:	Engineers available to service machinery overseas

Packaging Details

wooden package or as customers' requirements

Product Description

Specifications

our produce
1. Large air flow
2. ISO 9001:2008 certification
3.easy to operate
mpt delivery

High efficient wear-resistant power generation blower

Welcome To Henan Hengtong Blower CO.,LTD

Hengtong Blower products in each big industry were used as key equipment, among dust removal blower, boiler blower, cement plant dedicated blower, ventilation blower, cooling blower, High efficient power generation blower, environmental protect blower etc were used in industrial and civil fields.

power generation	Hengtong blower provide all kinds of air handing products to meet the requirements of power generation industry. We provide fans and blowers that supply, exhaust contain and cool airflow within various applications. From industrial boilers systems and specialty cooling applications to dust collection systems, our pre-engineered and High efficient wear-resistant power generation blowers are designed by engineers with power generation applications in mind.
General Ventilation	Hengtong blower designs and manufactures an array of pre-engineered and High efficient wear-resistant power generation blowers for various industries to ensure proper ventilation .from airfoil fans to backward inclined fans, we provide highest performance with efficiency and versatility that match to your requirements, our air handing products supply clean air and exhaust unwanted and heated air out of the airflow so as to create an cosy and safe working environment.
transportation	The transportation industry requires high quality durable fans for military, construction and mining purposes as well as locomotive and aviation systems. Hengtong Blower’s pre-engineered and custom heavy duty fans are designed and manufactured for braking schemes, exhaust systems, and general ventilation applications. High efficient wear-resistant power generation blowers are constructed with spark resistant materials and can withstand the highest temperatures for exceptional durability even in the most extreme environments.
Burner System	Hengtong is a leading provider of pre-engineering and heavy custom duty fans for burner system applications, burner system are widely used for heating and drying throughout various industries. High efficient wear-resistant power generation blowers and blowers are constructed with abilities to supply long lasting quality and consistent airflow for high pressure and combustion air systems

Impeller :Impeller annealed completely eliminate welding stress generated when the structure to ensure that the shape of the impeller does not occur creep and cracks.

Motor:General motor, high voltage, frequency conversion motor or custom is appropriate for your system.

Overall support:Overall support is your installation is very simple and easy operation

Casing: Rugged enclosure design, selection of appropriate electrode for welding high-strength , ensure that housing more durable.

Air damper: Through damper adjustment into the internal gas flow, the fan to meet damper can make gas prewhirl effect, to enhance the overall efficiency of the fan.

Application	Temperature	Normal temperature Air
	Air composition	Clean air
		Dusty air
		Corrosive gas
		Combustible gas
		Powder materials
		Light particle materials
Performance	Impeller diameter	400	~	3200	mm
	Speed of mainshaft	730	~	1450	rpm
	Pressure range	383	~	5500	Pa
		2	~	41	mmHg
		39	~	561	mmH2O
	Flow range	5508	~	120000	m3/h
		9362	~	203977	CFM
System configuration	Motor	SIEMENS, ABB, LA…			Can assign
	Impeller	Carbon steel
	Impeller cone (Air Inlet)	Carbon steel
	Case	Carbon steel
	Air damper	Carbon steel
	Main shaft	High-strength carbon structural steel
	Bearing	FAG, SKF, ZWZ, C&U…
	Bearing housing	Cast iron
	Drivetrain	Coupling			Can assign
	Foundation bolt	Carbon steel

Quality Assurance:

Hengtong's Quality Control programe is backed by a comprehensive Quality
Management System (ISO 9001:2000), deviced at the time of inception and

continuously upgraded. We have in place highly mechanised testing facilities, with procedures laid out to the requirement standards. The test facilities in

place permit the flawless testing of the complete range of our products.

customer visitting

our blower export to Vietnam, Libya, the Philippines, Albania, Romania, Pakistan, India, EU and other countries and regions, which has won the domestic and foreign customers and several design institutes broad trust and praise.

If you are interested in our High efficient power generation blower,Please don't hesitate to visit our website.

htblower.en.china.cn

We will give you a favorable price.

Company Profile

Henan Hengtong Blower Co., Ltd.

Henan Hengtong Blower Co., Ltd. is a manufacturer of industry blowers with well-equipped testing equipment and strong technical force.
Leading fan products are generally USES centrifugal fan, medium pressure centrifugal fan, high pressure centrifugal fan, high temperature fan, anticorrosive fan, flameproof fan, crops with ventilation fan and axial flow fan, etc., for 10000 tons per day of the dry process cement production lines supporting all kinds of centrifugal and axial flow fan, with an annual capacity of 2 million tons for the cement grinding station supporting all kinds of centrifugal and axial flow fan, for 300000 KWH power plant, the thermal power plant equipped with pulverized coal boiler and circulating fluidized bed boiler drum induced draft fan, for the iron and steel industry sintering machine equipped with sintering flue gas induced draft fan, dust removal fan, ring cooling fan for metallurgical industry of smithing cupola furnace, equipped with high pressure blower, for the new brick kiln waste heat recycling drying kiln equipped with special induced draft fan, for papermaking, textile, wood processing, food processing industry is equipped with all kinds of material conveying fan for various fan equipped with various types of noise, etc

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in steel factories, boiler factories, cement factories, paper mill factories and other industries.

Contact Us

Henan Hengtong Blower Co., Ltd.: Contact nameJohn Sun; Phone86-373-5467001; AddressFuxing Road, Dazhaoying Town Industry Concentration District, Xinxiang County, Xinxiang, Henan, China (Mainland) Xinxiang,Henan
