Specifications
power plant centrifugal fan:1.Low Price
2. ISO 9001:2008
3.easy to operate
mpt delivery

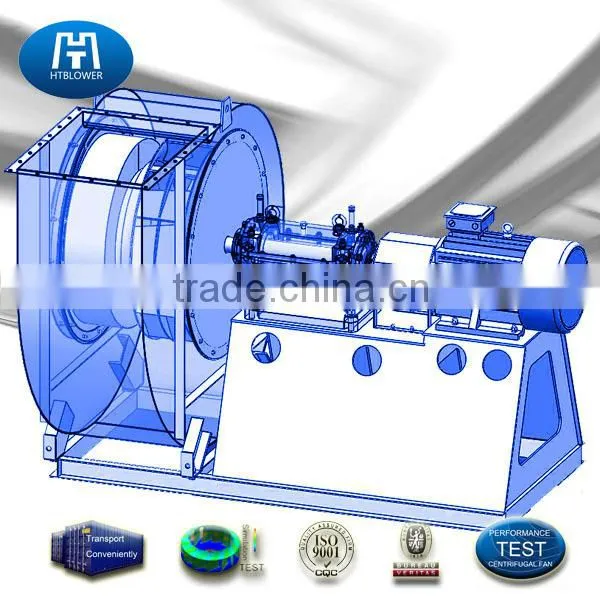

Energy conservation power plant centrifugal fan
Welcome To Henan Hengtong Blower CO.,LTD
Hengtong Blower products in each big industry were used as key equipment, among dust removal blower, boiler blower, cement plant dedicated blower, power plant centrifugal fan , cooling blower, high temperature blower, environmental protect blower etc were used in industrial and civil fields.
Technical Parameters
| Application | Temperature | Normal temperature Air | |||
| Air composition | Clean air | ||||
| Dusty air | |||||
| Corrosive gas | |||||
| Combustible gas | |||||
| Powder materials | |||||
| Light particle materials | |||||
| Performance | Impeller diameter | 400 | ~ | 3200 | mm |
| Speed of mainshaft | 730 | ~ | 1450 | rpm | |
| Pressure range | 383 | ~ | 5500 | Pa | |
| 2.8725 | ~ | 41 | mmHg | ||
| 39 | ~ | 561 | mmH2O | ||
| Flow range | 5508 | ~ | 120000 | m3/h | |
| 9362 | ~ | 203977 | CFM | ||
| System configuration |
Motor | SIEMENS, ABB, LA… | Can assign | ||
| Impeller | Carbon steel | ||||
| Impeller cone (Air Inlet) | Carbon steel | ||||
| Case | Carbon steel | ||||
| Air damper | Carbon steel | ||||
| Main shaft | High-strength carbon structural steel | ||||
| Bearing | FAG, SKF, ZWZ, C&U… | ||||
| Bearing housing | Cast iron | ||||
| Drivetrain | Coupling | Can assign | |||
| Foundation bolt | Carbon steel | |
|||

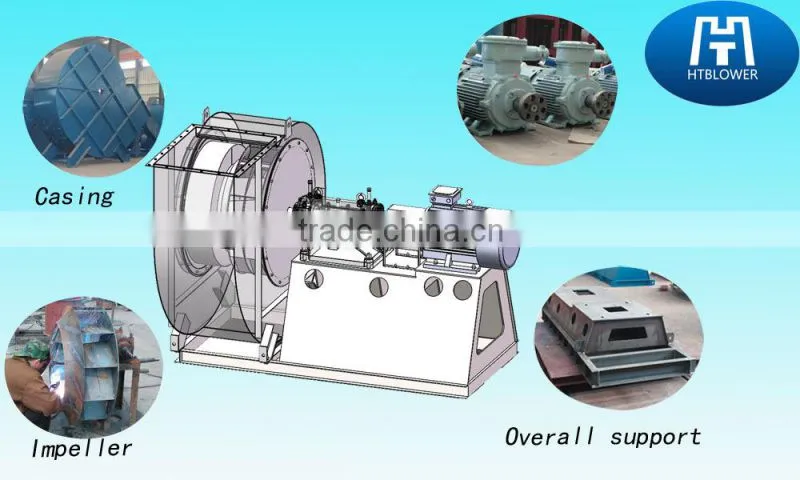

Recommended parts
Impeller :Impeller annealed completely eliminate welding stress generated when the structure to ensure that the shape of the impeller does not occur creep and cracks.
Motor:General motor, high voltage, frequency conversion motor or custom is appropriate for your system.
Overall support:Overall support is your installation is very simple and easy operation
Casing: Rugged enclosure design, selection of appropriate electrode for welding high-strength , ensure that housing more durable.
Optional components
Technical Parameters
| Application | Temperature | Normal temperature Air | |||
| Hot Air | |||||
| Air composition | Clean air | ||||
| Dusty air | |||||
| Corrosive gas | |||||
| Combustible gas | |||||
| Powder materials | |||||
| Light particle materials | |||||
| Performance | Impeller diameter | 400 | ~ | 3200 | mm |
| Speed of mainshaft | 960 | ~ | 4000 | rpm | |
| Pressure range | 2705 | ~ | 15563 | Pa | |
| 20 | ~ | 116 | mmHg | ||
| 276 | ~ | 1588 | mmH2O | ||
| Flow range | 4420 | ~ | 145533 | m3/h | |
| 7513 | ~ | 247378 | CFM | ||
Production process
Installation service
There are three methods for installing our service :
Quality Assurance:
Hengtong's Quality Control programe is backed by a comprehensive Quality
Management System (ISO 9001:2000), deviced at the time of inception and
continuously upgraded. We have in place highly mechanised testing facilities,
with procedures laid out to the requirement standards. The test facilities in
place permit the flawless testing of the complete range of our products.
Application
customer visitting
our blower export to Vietnam, Libya, the Philippines, Albania, Romania, Pakistan, India, EU and other countries and regions, which has won the domestic and foreign customers and several design institutes broad trust and praise.
Mian produce
hengtong blower custom engineered High strength Impeller welding industrial high blowers are designed specifically for each contract which allows us to apply a combination of experience, advanced design techniques and a knowledge of the operating conditions to select the optimum fan in terms of capital cost, running cost, maintainability and reliability. A wide range of options are available in terms of drive arrangement, output control, layout and ancillary equipment, to give maximum flexibility to the plant designer.
If you are interested in power plant centrifugal fan ,Please don't hesitate to visit our website.
htblower.en.china.cn
We will appreciate it a lot if you can offer us your product performance requirement and operation environment for the power plant centrifugal fan of you need,so that we can customize optimal product to meet your every requirement.
Air volume/air flow |
|
m3/h |
Total pressure or static pressure |
|
Pa |
Medium temperature |
|
℃ |
Voltage |
|
v |
Frequency |
|
Hz |
Altitude of operation place |
|
m |
We will give you a favorable price. .
