Specifications
centrifugal fan drying1.high quality
2.High efficiency
3.easy to operate
mpt delivery

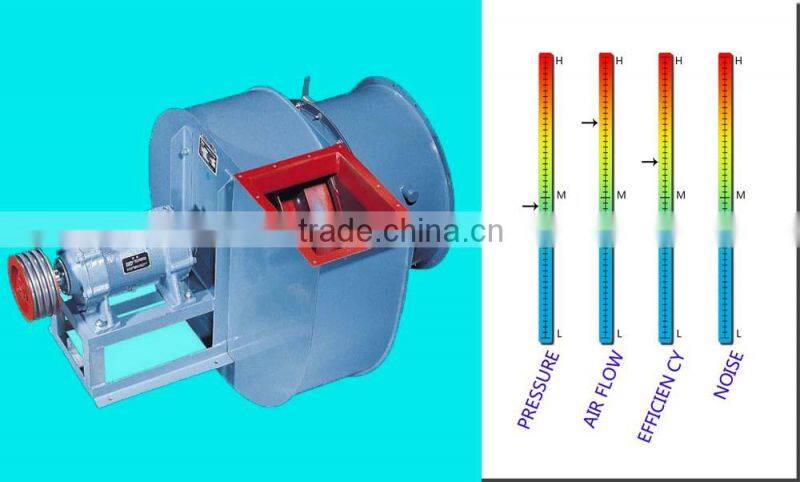

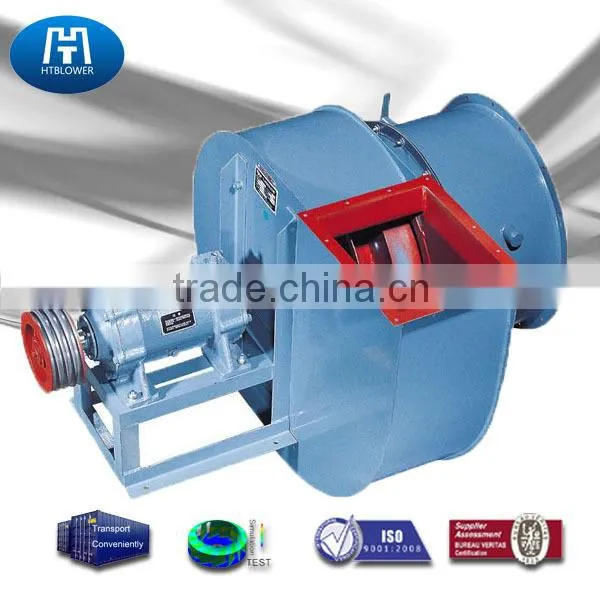

High air flow anti-explosion Combustible gas delivery blower
Welcome To Henan Hengtong Blower CO.,LTD

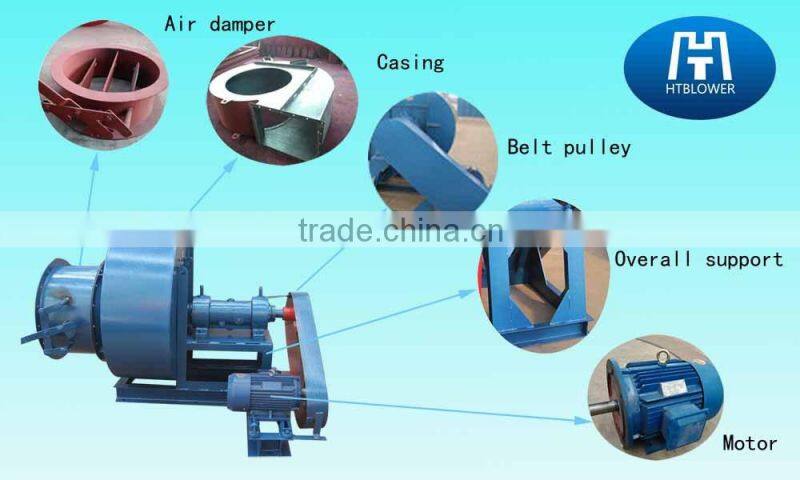

Impeller :Impeller annealed completely eliminate welding stress generated when the structure to ensure that the shape of the impeller does not occur creep and cracks.
Motor:General motor, high voltage, frequency conversion motor or custom is appropriate for your system.
Overall support:Overall support is your installation is very simple and easy operation
Casing: Rugged enclosure design, selection of appropriate electrode for welding high-strength , ensure that housing more durable.
Air damper: Through damper adjustment into the internal gas flow, the fan to meet damper can make gas prewhirl effect, to enhance the overall efficiency of the fan.
Belt pulley: The structure is compact save a space ,differential transmission.
| Application | Temperature | Normal temperature Air | |||
| Hot Air | |||||
| Air composition | Clean air | ||||
| Dusty air | |||||
| Corrosive gas | |||||
| Combustible gas | |||||
| Powder materials | |||||
| Light particle materials | |||||
| Performance | Impeller diameter | 400 | ~ | 2000 | mm |
| Speed of mainshaft | 960 | ~ | 4000 | rpm | |
| Pressure range | 470 | ~ | 5500 | Pa | |
| 3.525 | ~ | 41.25 | mmHg | ||
| 47.95918367 | ~ | 561.2244898 | mmH2O | ||
| Flow range | 2065 | ~ | 106934 | m3/h | |
| 3510.113887 | ~ | 181767.8055 | CFM | ||
| System configuration |
Motor | SIEMENS, ABB, LA… | Can assign | ||
| Impeller | Carbon steel | ||||
| Impeller cone (Air Inlet) | Carbon steel | ||||
| Case | Carbon steel | ||||
| Air damper | Carbon steel | ||||
| Main shaft | High-strength carbon structural steel | ||||
| Bearing | FAG, SKF, ZWZ, C&U… | ||||
| Bearing housing | Cast iron | ||||
| Drivetrain | V-belt | Can assign | |||
| Foundation bolt | Carbon steel | ||||
customer visitting
our blower export to Vietnam, Libya, the Philippines, Albania, Romania, Pakistan, India, EU and other countries and regions, which has won the domestic and foreign customers and several design institutes broad trust and praise.
If you are interested in our air blower ,Please don't hesitate to visit our website.
htblower.en.china.cn
We will give you a favorable price. .
