Specifications
centrifugal fan drying1. high temperature
2.high efficiency
3.easy to operate
mpt delivery

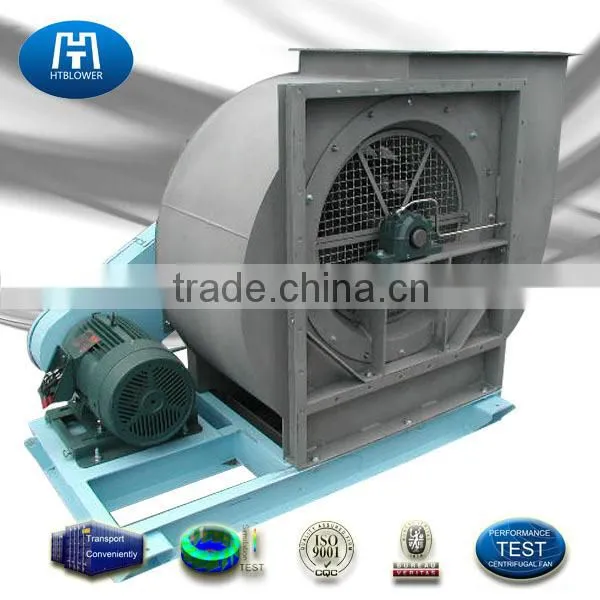

High Capacity Gas conveying cupola furnace fans
Welcome To Henan Hengtong Blower CO.,LTD
Hengtong Blower products in each big industry were used as key equipment, among dust removal blower, boiler blower, cement plant dedicated blower, ventilation blower, cooling blower, high temperature blower,cupola furnace fans ,environmental protect blower etc were used in industrial and civil fields.
petrochemical |
From the petroleum refining to chemical production, Hengtong blower provides pre-engineered and customized cupola furnace fans meet the strict requirements in the petrochemical industry . some industries need fan used in heating process, such as the flare stacks,fired heaters,burner systems.in addition to heating systems,fans are also used in pollution control systems like scrubbers and thermal oxidizers within the petrochemical industry. Even in the extreme operating conditions, all of our fans operates with coatings to ensure the system properly and specialty bearings seals to meet the needs of industry standards. |
mining |
Hengtong Blower Corporation’s pre-engineered and custom cupola furnace fans are designed and manufactured for mining industry operations all around the world. mining industry need to both axial and centrifugal designs for spark-resistant underground applications. ventilations exhaust, and supply systems are used throughout mining applications for dust control, mineral processing, and braking systems such as crushers, drillers and grinders. |
Burner System |
Hengtong is a leading provider of pre-engineering and heavy custom cupola furnace fans for burner system applications, burner system are widely used for heating and drying throughout various industries. our fans and blowers are constructed with abilities to supply long lasting quality and consistent airflow for high pressure and combustion air systems |
chemical processing |
Chemical processing requires high quality air moving products to move the toxic gases and pollutants into air purification applications. Hengtong blower’s pre-designed and custom heavy duty fans meet the high demands of chemical industry. Various fan are used in different applications include the dust collection, fume exhaust, induced draft, forced draft and pressure control. |

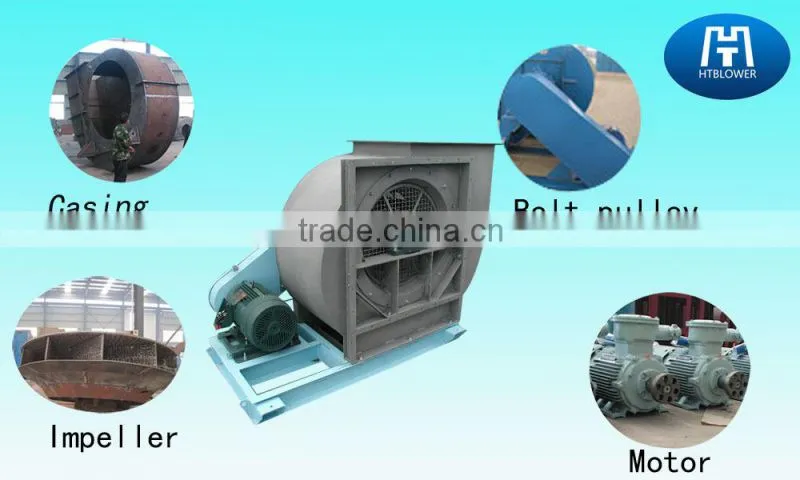

Impeller :Impeller annealed completely eliminate welding stress generated when the structure to ensure that the shape of the impeller does not occur creep and cracks.
Motor:General motor, high voltage, frequency conversion motor or custom is appropriate for your system.
Belt pulley: The structure is compact save a space ,differential transmission.
Casing: Rugged enclosure design, selection of appropriate electrode for welding high-strength , ensure that housing more durable.
| Application | Temperature | Normal temperature Air | |||
| Hot Air | |||||
| Air composition | Clean air | ||||
| Dusty air | |||||
| Corrosive gas | |||||
| Combustible gas | |||||
| Powder materials | |||||
| Light particle materials | |||||
| Performance | Impeller diameter | 400 | ~ | 2000 | mm |
| Speed of mainshaft | 960 | ~ | 4000 | rpm | |
| Pressure range | 251 | ~ | 4500 | Pa | |
| 1.8825 | ~ | 33 | mmHg | ||
| 25 | ~ | 459 | mmH2O | ||
| Flow range | 220 | ~ | 221730 | m3/h | |
| 373 | ~ | 376899 | CFM | ||
| System configuration |
Motor | SIEMENS, ABB, LA… | Can assign | ||
| Impeller | Carbon steel | ||||
| Impeller cone (Air Inlet) | Carbon steel | ||||
| Case | Carbon steel | ||||
| Air damper | Carbon steel | ||||
| Main shaft | High-strength carbon structural steel | ||||
| Bearing | FAG, SKF, ZWZ, C&U… | ||||
| Bearing housing | Cast iron | ||||
| Drivetrain | V-belt | Can assign | |||
| Foundation bolt | Carbon steel | ||||
Quality Assurance:
Hengtong's Quality Control programe is backed by a comprehensive Quality
Management System (ISO 9001:2000), deviced at the time of inception and
continuously upgraded. We have in place highly mechanised testing facilities, with procedures laid out to the requirement standards. The test facilities in
place permit the flawless testing of the complete range of our products.
customer visitting
our blower export to Vietnam, Libya, the Philippines, Albania, Romania, Pakistan, India, EU and other countries and regions, which has won the domestic and foreign customers and several design institutes broad trust and praise.
If you are interested in our cupola furnace fans ,Please don't hesitate to visit our website.
htblower.en.china.cn
We will give you a favorable price. .
