Specifications
centrifugal fan drying1. high temperature
2.high efficiency
3.easy to operate
mpt delivery

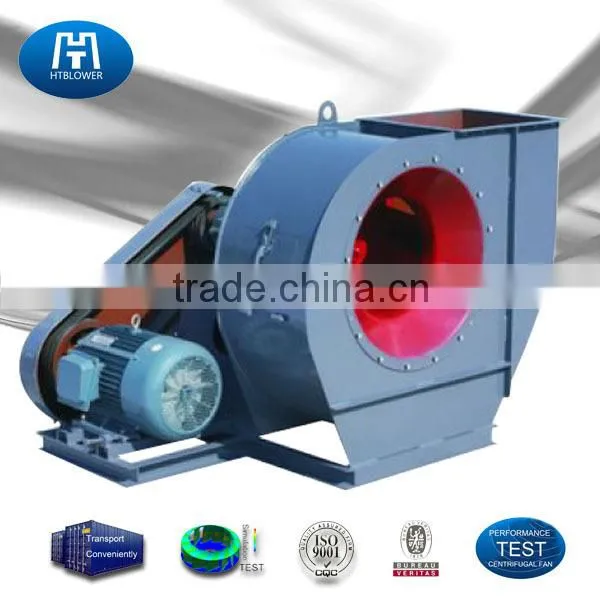

Special metallurgy anticorrosive Centrifugal blower
Welcome To Henan Hengtong Blower CO.,LTD
Hengtong Blower products in each big industry were used as key equipment, among dust removal blower, boiler blower, cement plant dedicated blower, ventilation blower, cooling blower, high temperature blower,smoke exhaust blower ,anticorrosive Centrifugal blower,environmental protect blower etc were used in industrial and civil fields.
mining |
Hengtong Blower Corporation’s pre-engineered and custom anticorrosive Centrifugal blowers are designed and manufactured for mining industry operations all around the world. mining industry need to both axial and centrifugal designs for spark-resistant underground applications. ventilations exhaust, and supply systems are used throughout mining applications for dust control, mineral processing, and braking systems such as crushers, drillers and grinders. |
manufacturing facilities |
Hengtong blower Co. Ltd. designs and manufactures ventilations supply and exhaust all types of the industrial air, our fans keep safe and comfortable working environment and prevent the volatile air staying within the equipment. Hengtong Blower’s pre-engineered and custom anticorrosive Centrifugal blowers meet the requirements of manufacturing facilities and their processes. |
coal |
Hengtong Blower has designed and engineered a wide array of high quality pre-engineered and custom heavy duty fans used in the coal manufacturing industry. Our spark resistant and abrasion resistant fans are designed by boiler and burner manufactures to provide recirculation and air exhaustion within these systems Other applications of our aircrafts are used for pneumatic conveying and dust collection system. In addition, Hengtong Blower supplies products for general ventilation and exhaust system. |
General Ventilation |
Hengtong blower designs and manufactures an array of pre-engineered and heavy custom duty fans for various industries to ensure proper ventilation .from airfoil fans to backward inclined fans, we provide highest performance with efficiency and versatility that match to your requirements, our air handing products supply clean air and exhaust unwanted and heated air out of the airflow so as to create an cosy and safe working environment. |

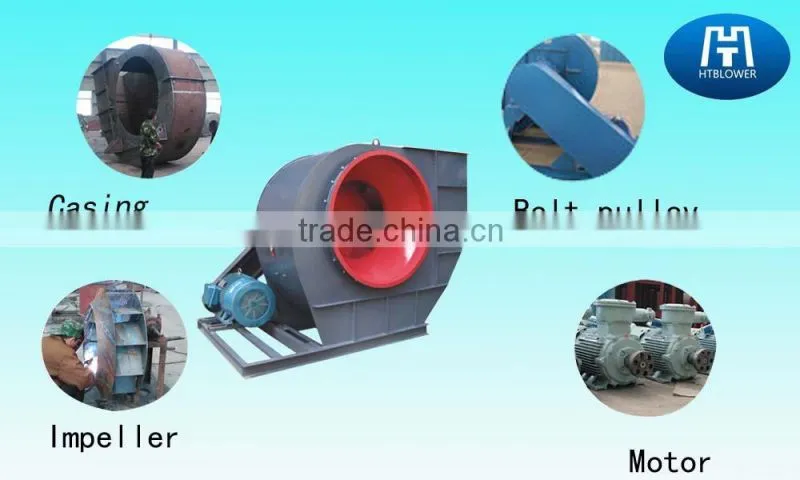

Impeller :Impeller annealed completely eliminate welding stress generated when the structure to ensure that the shape of the impeller does not occur creep and cracks.
Motor:General motor, high voltage, frequency conversion motor or custom is appropriate for your system.
Belt pulley: The structure is compact save a space ,differential transmission.
Casing: Rugged enclosure design, selection of appropriate electrode for welding high-strength , ensure that housing more durable.
| Application | Temperature | Normal temperature Air | |||
| Hot Air | |||||
| Air composition | Clean air | ||||
| Dusty air | |||||
| Corrosive gas | |||||
| Combustible gas | |||||
| Powder materials | |||||
| Light particle materials | |||||
| Performance | Impeller diameter | 400 | ~ | 2000 | mm |
| Speed of mainshaft | 960 | ~ | 4000 | rpm | |
| Pressure range | 251 | ~ | 4500 | Pa | |
| 1 | ~ | 33 | mmHg | ||
| 25 | ~ | 459 | mmH2O | ||
| Flow range | 220 | ~ | 221730 | m3/h | |
| 373 | ~ | 376899 | CFM | ||
| System configuration |
Motor | SIEMENS, ABB, LA… | Can assign | ||
| Impeller | Carbon steel | ||||
| Impeller cone (Air Inlet) | Carbon steel | ||||
| Case | Carbon steel | ||||
| Air damper | Carbon steel | ||||
| Main shaft | High-strength carbon structural steel | ||||
| Bearing | FAG, SKF, ZWZ, C&U… | ||||
| Bearing housing | Cast iron | ||||
| Drivetrain | V-belt | Can assign | |||
| Foundation bolt | Carbon steel | ||||
Quality Assurance:
Hengtong's Quality Control programe is backed by a comprehensive Quality
Management System (ISO 9001:2000), deviced at the time of inception and
continuously upgraded. We have in place highly mechanised testing facilities, with procedures laid out to the requirement standards. The test facilities in
place permit the flawless testing of the complete range of our products.
customer visitting
our blower export to Vietnam, Libya, the Philippines, Albania, Romania, Pakistan, India, EU and other countries and regions, which has won the domestic and foreign customers and several design institutes broad trust and praise.
If you are interested in our anticorrosive Centrifugal blower ,Please don't hesitate to visit our website.
htblower.en.china.cn
We will give you a favorable price. .
