Specifications
1.CHigh Pressure Cupola Furnace Exhaust Fan2.ISO9001 certificate
3.good quality
4.good performance

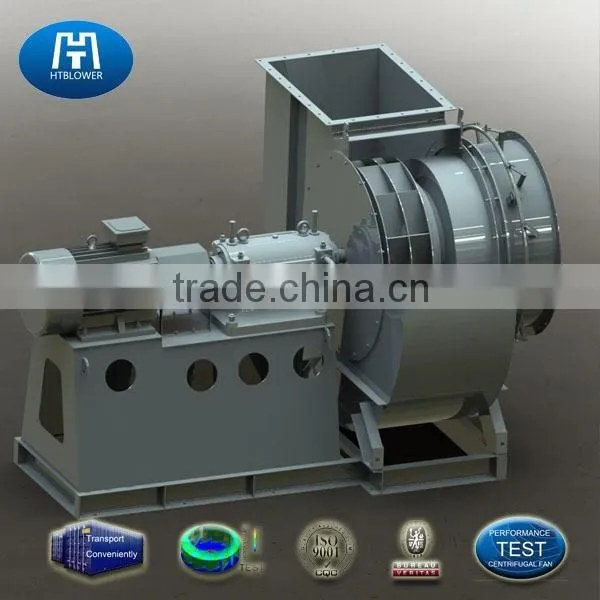

High Pressure Cupola Furnace Exhaust Fan
Hengtong Blower products in each big industry were used as key equipment, among dust removal centrifugal fan, boiler centrifugal fan, cement plant dedicated centrifugal fan,air centrifugal fan , gas delivery centrifugal fan high temperature centrifugal fan, environmental protect centrifugal fan etc were used in industrial and civil fields.
Application
Hengtong blower custom-engineered centrifugal fans are designed specifically for each contract which allows us to apply a combination of experience, advanced design techniques and a knowledge of the operating conditions to select the optimum fan in terms of capital cost, running cost, maintainability and reliability. A wide range of options are available in terms of drive arrangement, output control, layout and ancillary equipment, to give maximum flexibility to the plant designer.
|
Recycling |
Due to the growth of recycling industry, the demand of air handling industrial fans and blowers has been increasing, Hengtong blower with high quality and durability performance in sorting, crushing and the heating system. From the wood fibers that are manufactured into paper and glass melting and forming of metal materials. our fans are compatible with a variety of applications used in the recycling industry. |
|
Air stripping |
Air stripping involves pushing high pressure through carbon bed to eliminate the air flow rate in liquids and solids, gases. Hengtong blowers provide various fans and blowers with special design materials handing abilities specifically to this application. |
|
Ventilation |
Aeration system usually involve the use of a fan or a blower to inject and move air through solids or liquids,various materials needs ventilations due to the changing environment , Easy Operation air ventilator centrifugal fan .hengtong blower fans are utilized in aeration system to supply air and remove wasted compounds in wasted-water system.our workshop ventilation fan also provide moist and temperature control instorege and compositing applications. |
Recommended parts
High Pressure Cupola Furnace Exhaust Fan :
Casing: Rugged enclosure design, selection of appropriate electrode for welding high-strength , ensure that housing more durable.
Impeller :Impeller annealed completely eliminate welding stress generated when the structure to ensure that the shape of the impeller does not occur creep and cracks.
Air inlet: Convergence can be a good design to reduce wind resistance, and to be able to get better gas inlet angle when entering the impeller wheel, can effectively improve the operating efficiency of the fan.
Overall support:Overall support is your installation is very simple and easy operation.
Motor:General motor, high voltage, frequency conversion motor or custom is appropriate for your system.
Optional components Flow Process Fan driven by motor, drive the impeller rotation, the gas along the air inlet get into the impeller, as a result of the action of the impeller, the gas gain energy, pressure and kinetic energy increased, the impeller gas out of the volute impeller junior people after work, leave is the role of volute impeller gas concentration of diversion, and parts of the gas kinetic energy into the static pressure, and then send the gas from the outlet of the spiral case, when the gas enough energy to overcome the resistance of pipelines and gas can be transported to high or the distance.
Technical Parameters
| Application | Temperature | Normal temperature Air | |||
| Hot Air | |||||
| Air composition | Clean air | ||||
| Dusty air | |||||
| Corrosive gas | |||||
| Combustible gas | |||||
| Powder materials | |||||
| Light particle materials | |||||
| Performance | Impeller diameter | 400 | ~ | 3200 | mm |
| Speed of mainshaft | 730 | ~ | 2550 | rpm | |
| Pressure range | 402 | ~ | 5358 | Pa | |
| 3 | ~ | 40 | mmHg | ||
| 41 | ~ | 547 | mmH2O | ||
| Flow range | 5508 | ~ | 119491 | m3/h | |
| 9363 | ~ | 2013112 | CFM | ||
Installation Service
There are three methods for our installation:
Production process Quality Assurance
Hengtong's Quality Control programe is supported by a comprehensive Quality Management System (ISO 9001:2000), deviced at the time of inception andcontinuously upgraded. We have in place highly mechanised testing facilities, with procedures laid out to the requirement standards. The test facilities in place permit the flawless testing of the complete range of our products.
customer visitting
our blowers are exported to Vietnam, Libya, the Philippines, Albania, Romania, Pakistan, India, EU and other countries and regions, which has won the domestic and foreign customers and several design institutes broad trust and praise. We will appreciate it a lot if you can offer us your product performance requirement and operation environment for the ventilation jet fan of you need,so that we can customize optimal product to meet your every requirement.
Air volume/air flow |
|
m3/h |
Total pressure or static pressure |
|
Pa |
Medium temperature |
|
℃ |
Voltage |
|
v |
Frequency |
|
Hz |
Altitude of operation place |
|
m |
If you are interested in our High Pressure Cupola Furnace Exhaust Fan , Please don't hesitate to contact me !
