Specifications
Dust Exhaust blower :1.High efficiency
2.Dust Exhaust blower
3.Long life
4.ISO 9001

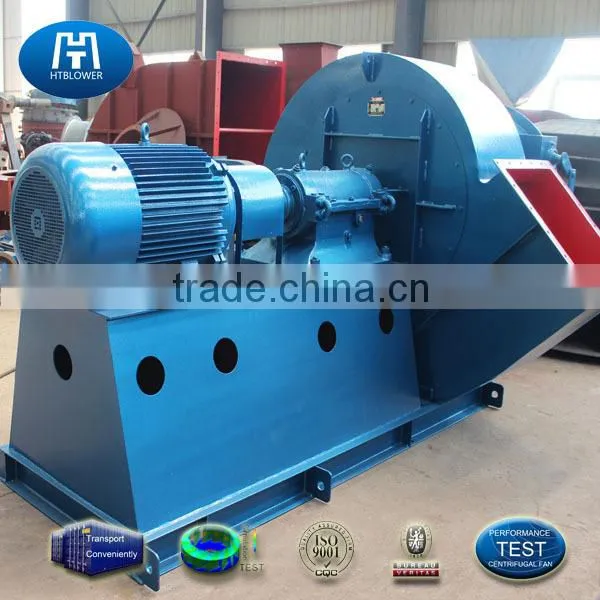

High efficiency Coupling Drive Dust Exhaust blower
| Dust Exhaust blower | Hengtong blower is a leading provider of fans and blowers for dust collection applications, our fans are used to supply dirty corrosive air into the system, Dust Exhaust blower .and exhausting clean air out of the system. whether it is sawdust, metal scraps, or welding smoke, we design and manufacture various pre-engineered and custom heavy duty fans to capture the particles exhausted into the air. |
Cement |
Hengtong blower extensive design and manufacturing capabilities enable us to provide a wide range of fans for several applications in cement manufacturing industry ,fans are required for the refinement and blending of materials in pneumatic conveying system as well as exhausting fans for transporting and removing of materials. our pre-engineered and custom heavy duty fans are reliable to control the harsh environments of cement manufacturing industry. |
Boiler system |
According to different applications, boiler system are used for generating steam and electric energy in many different industries, boiler system needs forced draft fans to offer combustion air ,at the same time, induced draft fan remove products of combustion and maintain the required draft. over-fire air fan, primary air and FGR fan are used to circulate gases to different parts of the system. Hengtong blower is a leading provider of pre-engineering and heavy custom duty fans for boiler system. |
The High efficiency Coupling Drive Dust Exhaust blower :
Impeller: Impeller annealed completely eliminate welding stress generated when the structure to ensure that the shape of the impeller does not occur creep and cracks.
Motor: General motor, high voltage, frequency conversion motor or custom is appropriate for your system.
Overall support: Overall support is your installation is very simple and easy operation
Casing: Rugged enclosure design, selection of appropriate electrode for welding high-strength , ensure that housing more durable.
Air damper: Through damper adjustment into the internal gas flow, the fan to meet damper can make gas prewhirl effect, to enhance the overall efficiency of the fan.
| Application | Temperature | Normal temperature Air | |||
| Hot Air | |||||
| Air composition | Clean air | ||||
| Dusty air | |||||
| Corrosive gas | |||||
| Combustible gas | |||||
| Powder materials | |||||
| Light particle materials | |||||
| Performance | Impeller diameter | 400 | ~ | 3200 | mm |
| Speed of mainshaft | 730 | ~ | 2550 | rpm | |
| Pressure range | 402 | ~ | 5358 | Pa | |
| 3.015 | ~ | 40.185 | mmHg | ||
| 41.02040816 | ~ | 546.7346939 | mmH2O | ||
| Flow range | 5508 | ~ | 119491 | m3/h | |
| 9362.570117 | ~ | 2013112.3576 | CFM | ||
|
System configuration |
Motor | SIEMENS, ABB, LA… | Can assign | ||
| Impeller | Carbon steel | ||||
| Impeller cone (Air Inlet) | Carbon steel | ||||
| Case | Carbon steel | ||||
| Air damper | Carbon steel | ||||
| Main shaft | High-strength carbon structural steel | ||||
| Bearing | FAG, SKF, ZWZ, C&U… | ||||
| Bearing housing | Cast iron | ||||
| Drivetrain | Coupling | Can assign | |||
| Foundation bolt | Carbon steel | ||||
Our production process of Dust Exhaust blower by the Large Plate Shears, Automatic CNC cutting machine, Spinning Machine,700T Hydropress, Impeller Welding, Casing Welding, Fan test Systerm, Wooden packging, Port of shipment complete.
If you are interested in our High efficiency Coupling Drive Dust Exhaust blower , Please don't hesitate to contact me !
