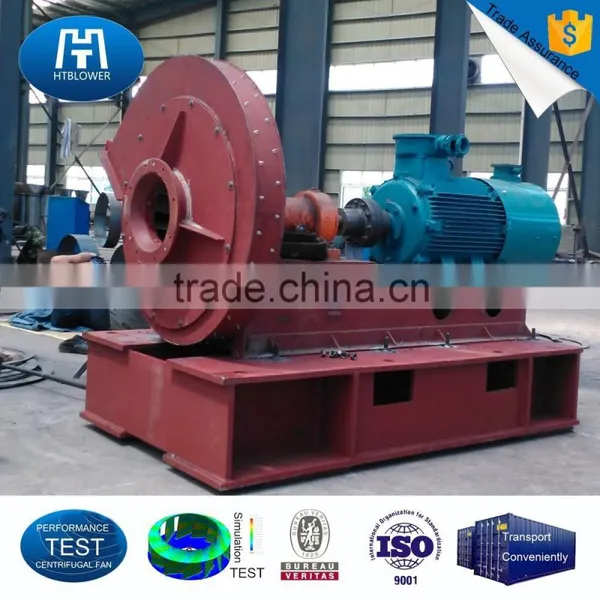

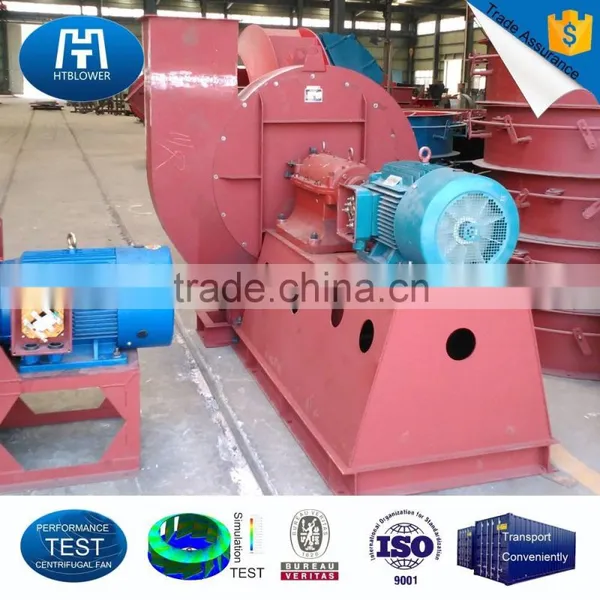

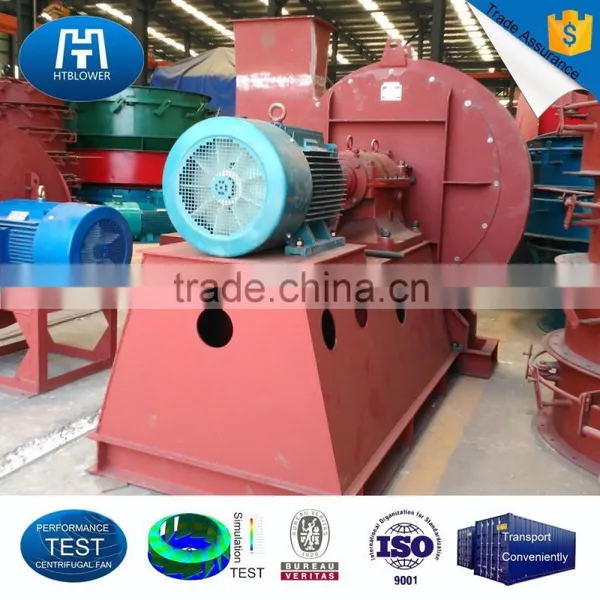

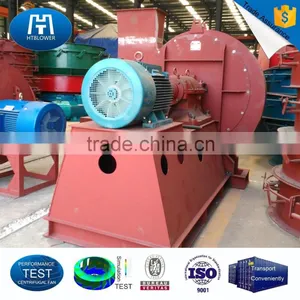

Energy Saving Industrial Boiler Centrifugal Induced Draught Fan
Welcome To Henan Hengtong Blower CO.,LTD
Hengtong Blower produces in each big industries used as key equipment, among dust removal blower, boiler blower, cement plant dedicated blower, chemical drying ventilation fans , low noise centrifugal blowers , high temperature blower, Ventilation centrifugal fans ,environmental protect blower etc were used in industrial and civil fields.
Technical Data
Application |
Temperature |
Normal temperature Air |
|||
Hot Air | |||||
Air composition |
Clean air |
||||
Dusty air | |||||
Corrosive gas | |||||
Combustible gas | |||||
Powder materials | |||||
Light particle materials | |||||
Performance |
Impeller diameter |
400 |
~ |
2000 |
mm |
Speed of main shaft |
960 |
~ |
4000 |
rpm |
|
Pressure range |
251 |
~ |
4500 |
Pa |
|
1 |
~ |
33 |
mmHg |
||
25 |
~ |
459 |
mmH2O |
||
Flow range |
220 |
~ |
221730 |
m3/h |
|
373 |
~ |
376899 |
CFM |
||
Optional Components
Recommended Parts
Energy Saving Industrial Boiler Centrifugal Induced Draught Fan:
Casing: Rugged enclosure design, selection of appropriate electrode for welding high-strength , ensure that housing more durable.
Impeller :Impeller annealed completely eliminate welding stress generated when the structure to ensure that the shape of the impeller does not occur creep and cracks.
Air inlet: Convergence can be a good design to reduce wind resistance, and to be able to get better gas inlet angle when entering the impeller wheel, can effectively improve the operating efficiency of the fan.
Overall support:Overall support is your installation is very simple and easy operation
Motor:General motor, high voltage, frequency conversion motor or custom is appropriate for your system
The production process
Application
Cement |
Hengtong blower extensive design and manufacturing capabilities enable us to provide a wide range of fans for several applications in cement manufacturing industry ,fans are required for the refinement and blending of materials in pneumatic conveying system as well as exhausting fans for transporting and removing of materials. our pre-engineered and High quality Forced ventilation forward cement fans are reliable to control the harsh environments of cement manufacturing industry. |
Pneumatic Conveying |
Hengtong blower provide a wide range of lines of air handing equipment for conveying powder and bulk solids. the bulk density of the materials such as food or metal must be determined with the purpose to convey materials by airflow, High quality Forced ventilation forward cement fans are designed to produce high velocity air to carry materials from processing stage to the collection stage. fans and blowers are also used to conveying ,so as to provide extra cooling and aeration to the materials if needed. |
Forced Draft |
Forced draft fans typically provide positive pressure and to control pressure inside specific application. Specific pressures are maintained and controlled by both the forced draft fans and inlet or outlet dampers. Hengtong blowers are the most commonly used boiler systems, forced their way into the air so that the boiler efficiency. |
Material handling |
Hengtong blower designs and manufactures various fans an blowers that are used convey materials by the airflow, depending on the size and the density of the particles, High quality Forced ventilation forward cement fans move materials through a system, whether it’s sticky, heavy and abrasive substances, like coal dust, sawdust as well as metal pieces, Hengtong blower offers fans and blowers to manage the industry material, our fans can also be constructed with abrasion material to resist even the harshest environment. |
Burner System |
Hengtong is a leading provider of pre-engineering and heavy custom duty fans for burner system applications, burner system are widely used for heating and drying throughout various industries. our fans and blowers are constructed with abilities to supply long lasting quality and consistent airflow for high pressure and combustion air systems |
Quality Assurance:
Hengtong's Quality Control programe is backed by a comprehensive Quality Management System
(ISO 9001:2000), deviced at the time of inception and continuously upgraded. We have in place highly
mechanised testing facilities,with procedures laid out to the requirement standards. The test facilities in
place permit the flawless testing of the complete range of our products.
Customer Visitting
Export to Vietnam, Libya, the Philippines, Albania, Romania, Pakistan, India, EU and other countries and regions, which has won the domestic and foreign customers and several design institutes broad trust and praise.
Related Products
If you are interested in our cement fan ,Please don't hesitate to visit our website:htblower.en.china.cn
We will appreciate it a lot if you can offer us your product performance requirement and operation environment for the Dust equipment centrifugal fan of you need,so that we can customize optimal product to meet your every requirement.
Air volume/air flow |
|
m3/h |
Total pressure or static pressure |
|
Pa |
Medium temperature |
|
℃ |
Voltage |
|
V |
Frequency |
|
Hz |
Altitude of operation place |
|
m
|
We will give you a favorable price.
