Specifications
High air flow Industrial electric air blower:1.ISO 9001
2.industrial electric air blower
3.Long life
4.High Reliability

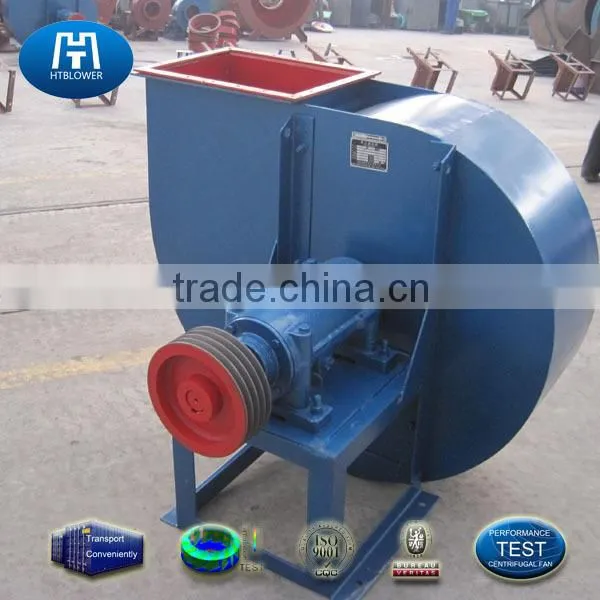

High air flow Industrial electric air blower
Hengtong Blower products in each big industry were used as key equipment, among dust removal centrifugal fan, boiler blower, cement blower, ventilation blower, Industrial electric air blower , high temperature blower, environmental protect blower etc were used in industrial and civil fields.
Cement |
Hengtong blower extensive design and manufacturing capabilities enable us to provide a wide range of fans for several applications in cement manufacturing industry ,fans are required for the refinement and blending of materials in pneumatic conveying system as well as exhausting fans for transporting and removing of materials. our pre-engineered and custom heavy duty fans are reliable to control the harsh environments of cement manufacturing industry. |
Boiler system |
According to different applications, boiler system are used for generating steam and electric energy in many different industries, boiler system needs forced draft fans to offer combustion air , High air flow Industrial electric air blower ,at the same time, induced draft fan remove products of combustion and maintain the required draft. over-fire air fan, primary air and FGR fan are used to circulate gases to different parts of the system. Hengtong blower is a leading provider of pre-engineering and heavy custom duty fans for boiler system. |
Gas delivery |
Hengtong blower provide a wide range of lines of air handing equipment for conveying powder and bulk solids. the bulk density of the materials such as food or metal must be determined with the purpose to convey materials by airflow, our gas delivery centrifugal fan are designed to produce high velocity air to carry materials from processing stage to the collection stage. gas delivery blower are also used to conveying ,so as to provide extra cooling and aeration to the materials if needed. |

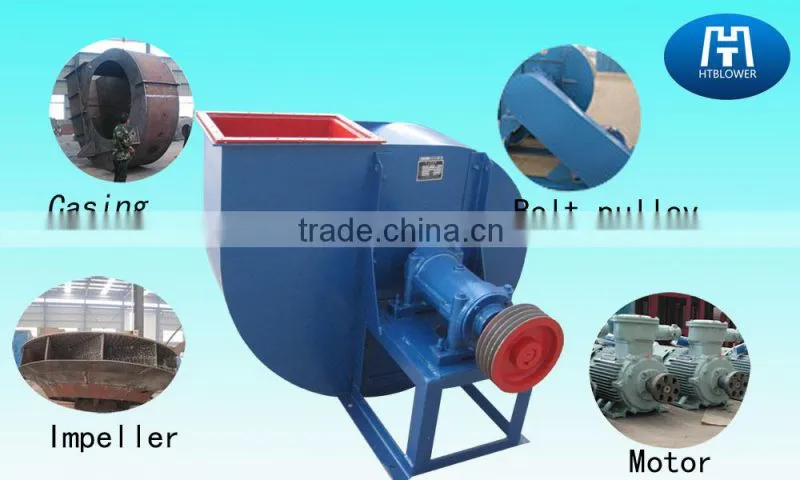

The High air flow Industrial electric air blower :
Impeller :Impeller annealed completely eliminate welding stress generated when the structure to ensure that the shape of the impeller does not occur creep and cracks.
Motor:General motor, high voltage, frequency conversion motor or custom is appropriate for your system.
Overall support:Overall support is your installation is very simple and easy operation
Casing: Rugged enclosure design, selection of appropriate electrode for welding high-strength , ensure that housing more durable.
Belt pulley: The structure is compact save a space ,differential transmission.
| Application | Temperature | Normal temperature Air | |||
| Hot Air | |||||
| Air composition | Clean air | ||||
| Dusty air | |||||
| Corrosive gas | |||||
| Combustible gas | |||||
| Powder materials | |||||
| Light particle materials | |||||
| Performance | Impeller diameter | 400 | ~ | 3200 | mm |
| Speed of mainshaft | 730 | ~ | 2550 | rpm | |
| Pressure range | 402 | ~ | 5358 | Pa | |
| 3.015 | ~ | 40.185 | mmHg | ||
| 41.02040816 | ~ | 546.7346939 | mmH2O | ||
| Flow range | 5508 | ~ | 119491 | m3/h | |
| 9362.570117 | ~ | 2013112.3576 | CFM | ||
|
System configuration |
Motor | SIEMENS, ABB, LA… | Can assign | ||
| Impeller | Carbon steel | ||||
| Impeller cone (Air Inlet) | Carbon steel | ||||
| Case | Carbon steel | ||||
| Air damper | Carbon steel | ||||
| Main shaft | High-strength carbon structural steel | ||||
| Bearing | FAG, SKF, ZWZ, C&U… | ||||
| Bearing housing | Cast iron | ||||
| Drivetrain | Coupling | Can assign | |||
| Foundation bolt | Carbon steel | ||||
We will appreciate it a lot if you can offer us your requirements about the Industrial electric air blower performance and the operation environment for the blower or fan of you need.We can customize optimal product to meet your any requirements.
90% products of Hengtong blower factory are designed according to customers’ performance requirements, each customer of our factory will use the most suitable product .
If you are interested in our High air flow Industrial electric air blower , Please don't hesitate to contact me !
